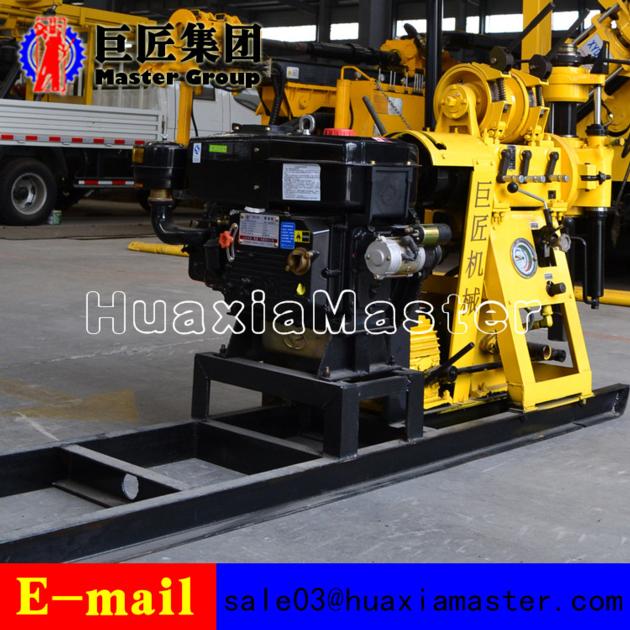

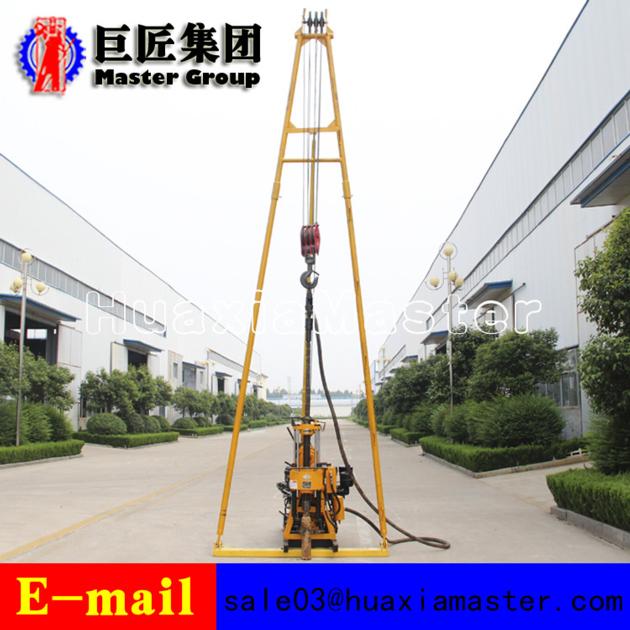

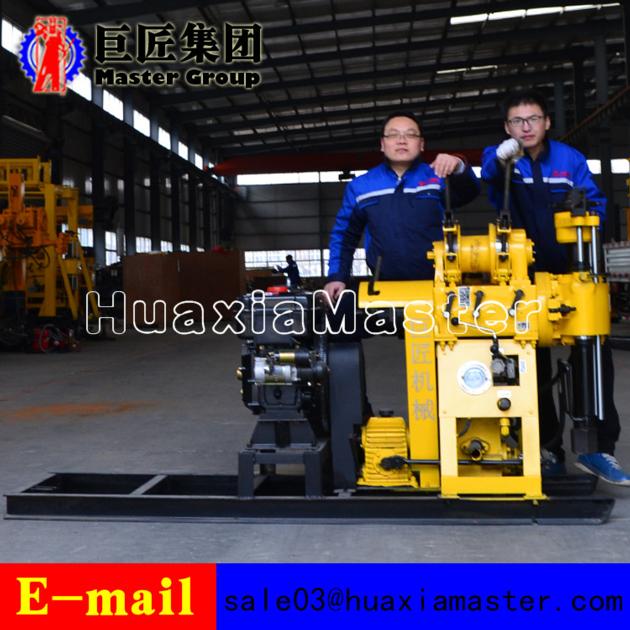

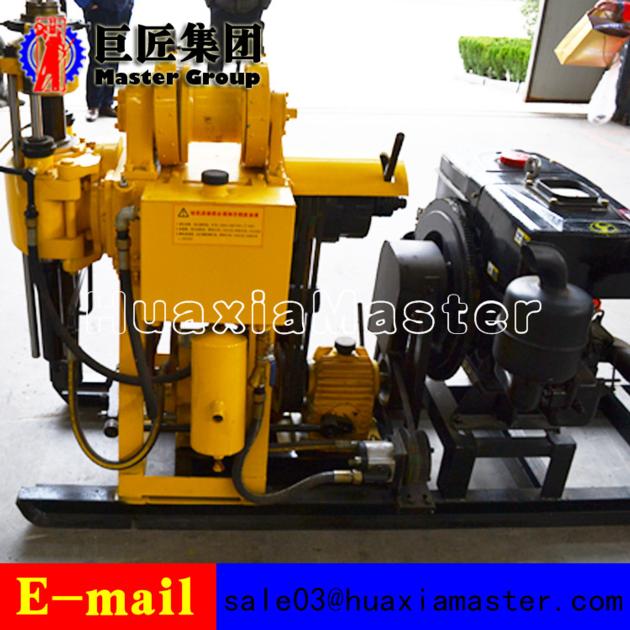

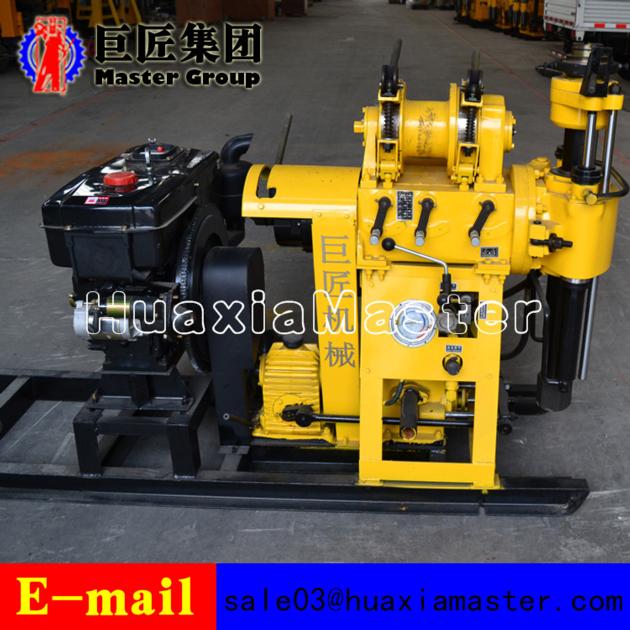

HZ-200Y Hydraulic Rotary Drilling Rig

Keywords: portable diamond core drilling rig, rotary drilling machine, hydraulic press machine, hydraulic portable drilling rig
1.Applications of HZ-200Y hydraulic drilling rig
Geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, civil water well and ground temperature central air conditioners.
2.Features of HZ-200Y hydraulic drilling rig
adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.
the machine is equipped with national patent technology-taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.
for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.
3.Specifications of HZ-200Y hydraulic drilling rig
HZ-200Y hydraulic drilling rig
Drilling depth 200m
Max open hole caliber 300mm
End hole caliber 75mm
Drill rod caliber 60mm
Drilling angle 90®-75®
Drill weight(without power) 1100kg
Triangle conveyer belt B950*4 B1700*3
The main machine moving distance 300mm
Power Diesel engine 22HP   Electric motor 15kw
Spindle
Spindle speed 64/128/287/557 r/min
Spindle stroke 450mm
Hoist
Max.lifting capacity 2400kg
Single line lifting speed 0.41/ 0.82/1.64 m/s
Wire rope caliber 13mm
Wire rope length 35m
Hug floodgate caliber 260mm
Hug floodgate belt width 70mm
Mud pump
Type Horizontal single-urn twin-action
Displacement Diesel engine 170L/min
Electric motor 150L/min
Maximum pressure 3Mpa
Work pressure 1.5Mpa
Inlet pipe caliber 40mm
Outlet pipe caliber 30mm
Triangle conveyer belt B1728mm
Mud pump
Type CBT—F—314
Triangle conveyer belt B1100× 1
