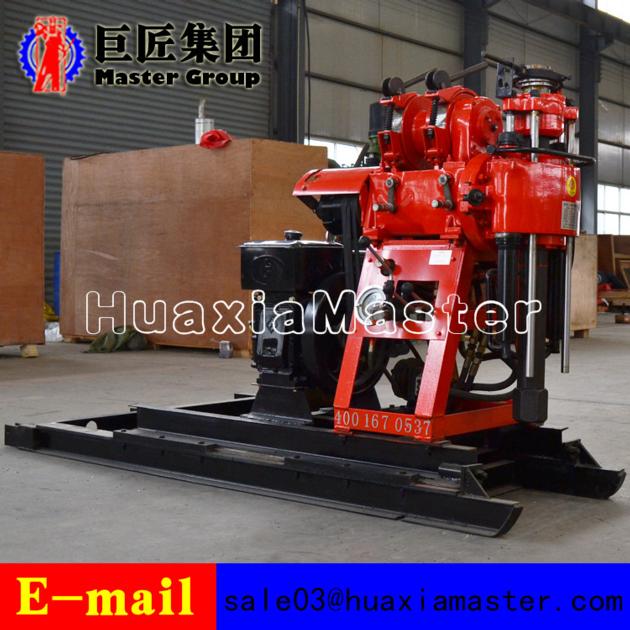

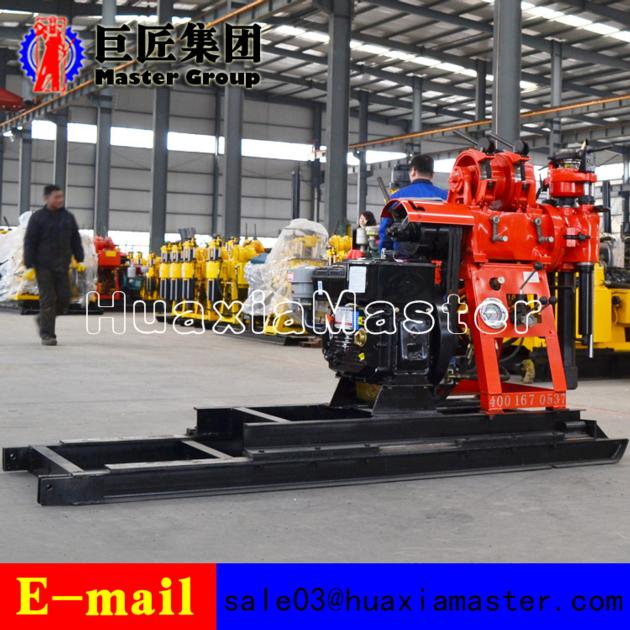

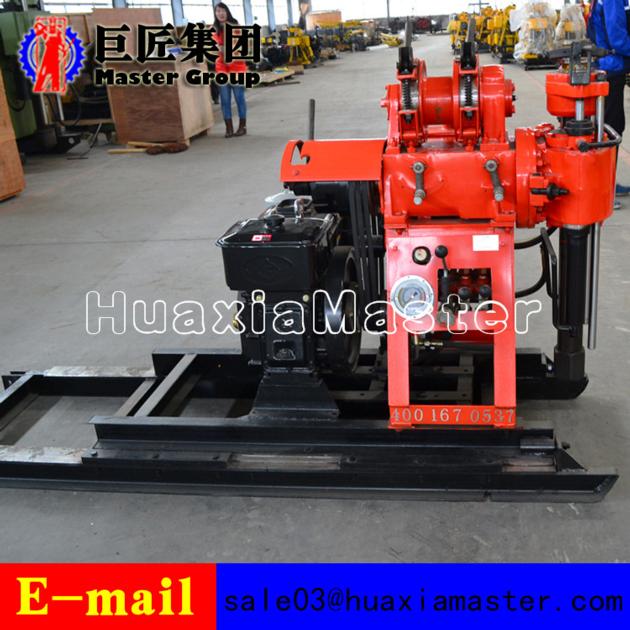

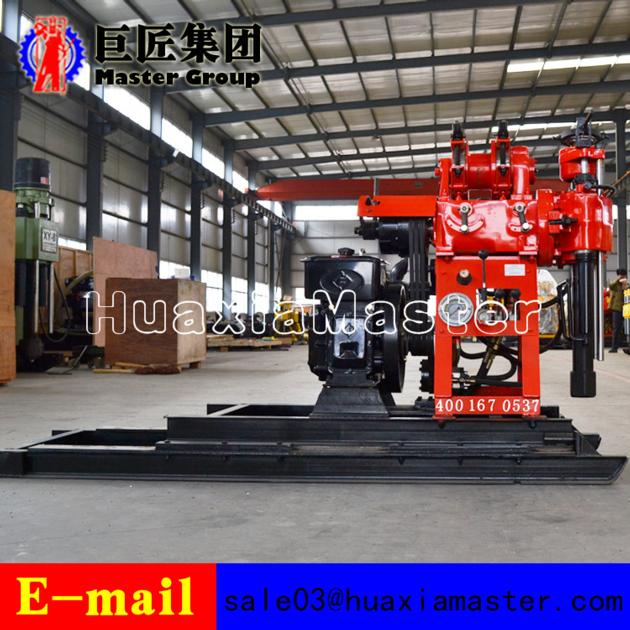

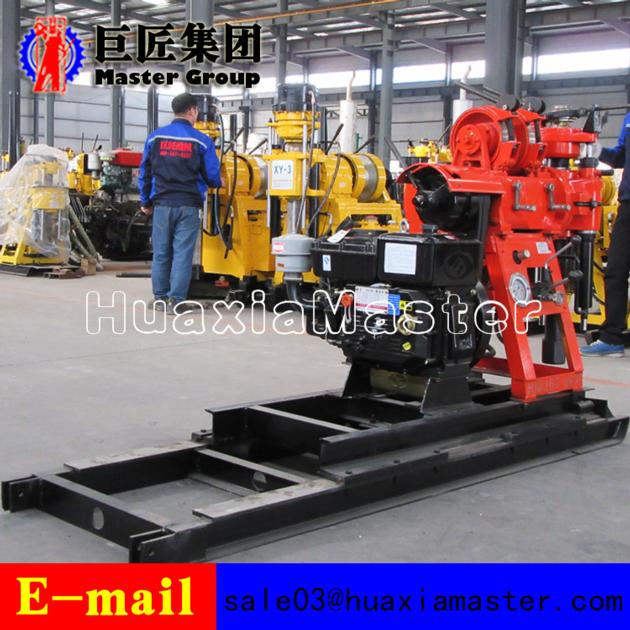

HZ-130YY Hydraulic Rotary Core Drilling Rig
| Price: | US$ 4000 |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | hz-130yy | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
HZ-130YY Hydraulic Rotary Drilling Rig
Drill hole depth 130m Maximum opening diameter 75-220mm Final hole diameter 75mm Take the initiative to drill pipe 53/59*4200mm Drill pipe diameter 50mm Borehole inclination 90®-75® Power(diesel engine) 13.2kw 2200r/min Size 850kg/2400*950*1400 Vertical shaft Vertical spindle speed 142/285/570r/min Vertical stroke 450mm Hoist Single rope lift 9.6kn Single rope winding speed 0.41/0.82/1.64m/s Drum diameter 140mm Diameter of wire rope 9.3mm Wire rope capacity 27m Rig Rated load 2t Effective height 6m Towerleg specifications 73mm Mud pump Model BW95 Flow 95l/min Maximum pressure 1.2mpa Reciprocating frequency 93r/min Suction pipe diameter 51mm*4.5m Diameter of high pressure pipe 32mm*6m |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: core drilling exploration, water well drilling rig, hydraulic diesel engine drilling machine, geological prospecting, exploration bore hole drilling machine
1.Brief introductions of HZ-130YY hydraulic rotary drilling rig
HZ-130YY rotary drilling rig adds shifting slipway on the basis of common drilling machine, which can realize rapid replacement of drilling tools and improve work efficiency and reduce labor usage.
2.Applications of HZ-130YY hydraulic rotary drilling rig
this rotary drilling rig is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.
drilling bits can be chosen according to the different soil condition, such as alloy, diamond and composite.
2-9 grades of sandy clay and rock.
3.Features of HZ-130YY hydraulic rotary drilling rig
the automatic feed mechanism with oil pressure can improve the drilling efficiency and reduce the labor intensity of the workers.
the ball card holding mechanism is used instead of the chuck, which can be operated without stopping the rod, and the operation is convenient, safe and reliable.
hoist is installed with holder, forming structure of double support wheel so that it can withstand strong impact
four groups of bearings are located in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complicated geological conditions such as the gravel layer, the pebble layer and so on.
This machine adopts the conical clutch of national patent technology, which has the characteristics of large transmission torque, convenient operation and no maintenance.
