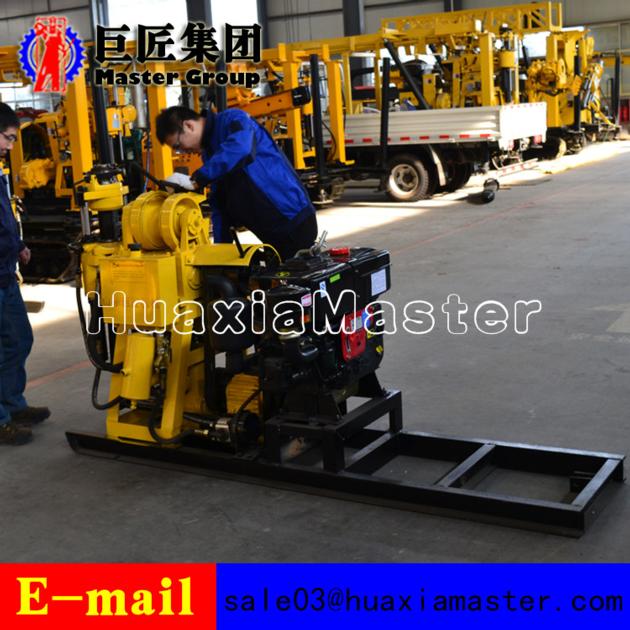

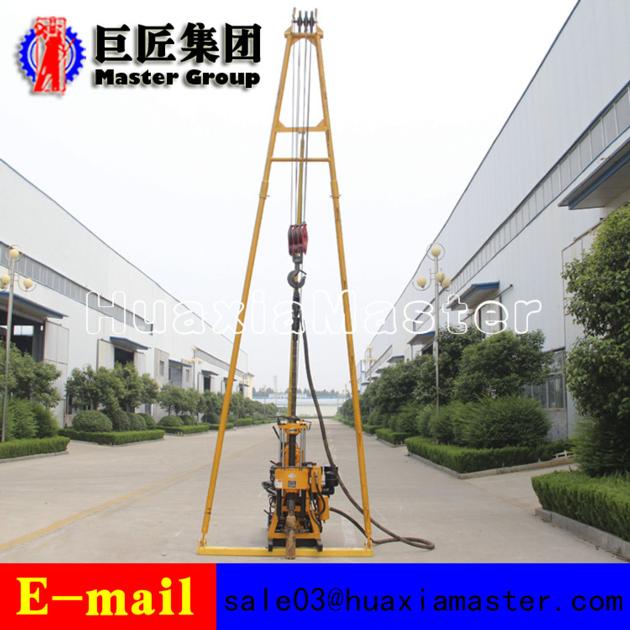

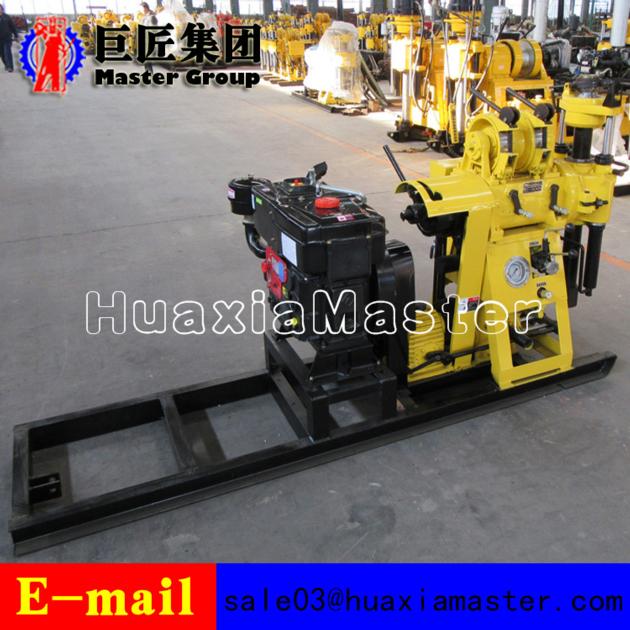

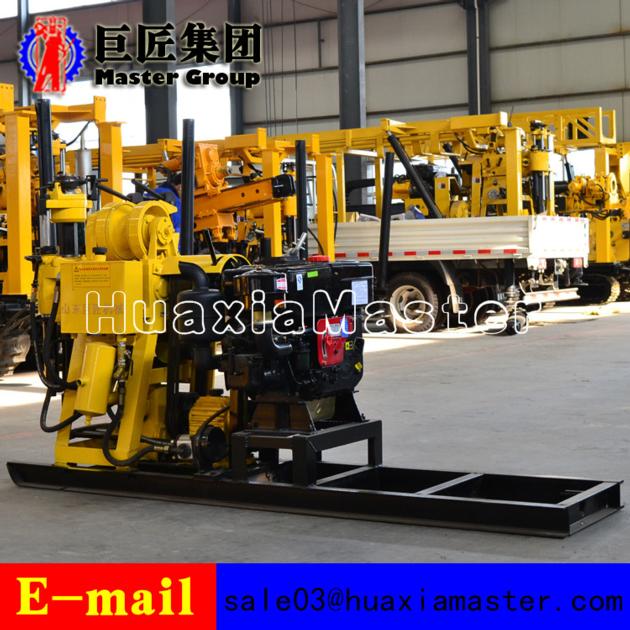

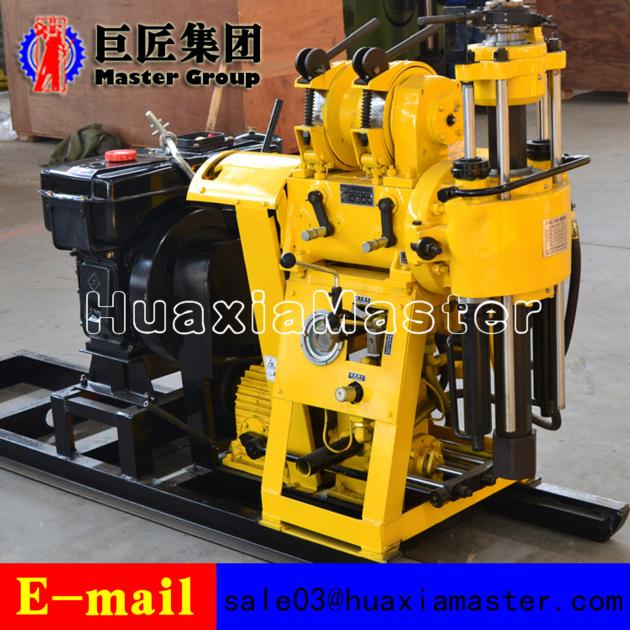

HZ-130Y Hydraulic Rotary Core Drilling Rig
| Price: | US$ 4000 |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | hz-130y | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
HZ-130Y Hydraulic Rotary Drilling Rig
Drilling depth 130m Maximum open hole caliber 220mm End hole caliber 75mm Drill rod caliber 50mm Drilling angle 90-75® Drill weight (Not include power) 750kg Spindle Spindle speed 142 285 570r/min Spindle stroke 450mm Hoist Max.single line hoisting capacity 1600kg Single line lifting speed 0.41/0.82/1.64m/s Drum diameter 140mm Wire rope diameter 13mm Tightrope caliber 27m Mud pump Type Horizontal single urn twin-action Electric motor 95/77 l/min Maximum pressure 1.2mpa Work pressure 0.7mpa Water inlet caliber 30mm Water to exit caliber 20mm Triangle conveyer belt B1575mm |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: hydraulic sampling machine, drilling machine for stone, soil sampling drilling machine
1. Applications of HZ-130Y Hydraulic Rotary Drilling Rig
geological survey and exploration,
basic exploration for roads
high-rise buildings,
inspection holes for various concrete structures,
river embankments
grouting holes
direct grouting,
civil water well
ground temperature central air conditioners.
2.Features of HZ-130Y Hydraulic Rotary Drilling Rig
Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
This machine adopts the conical clutch of national patent technology, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
