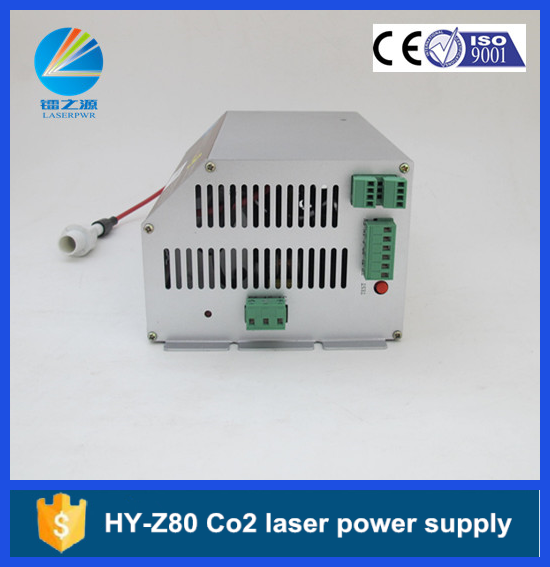

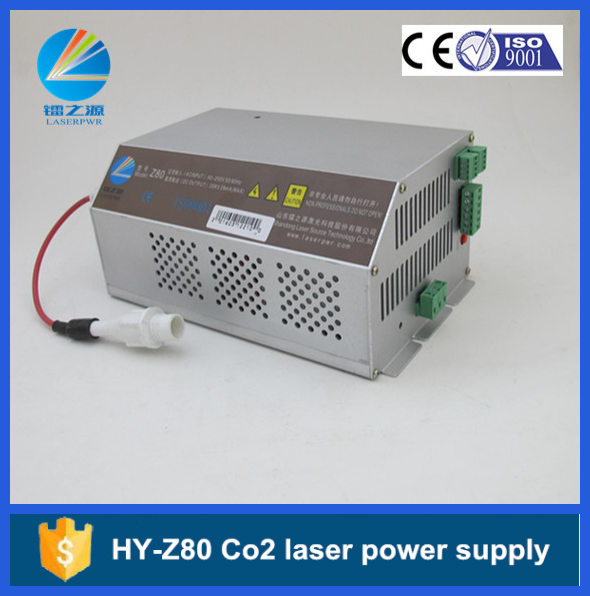

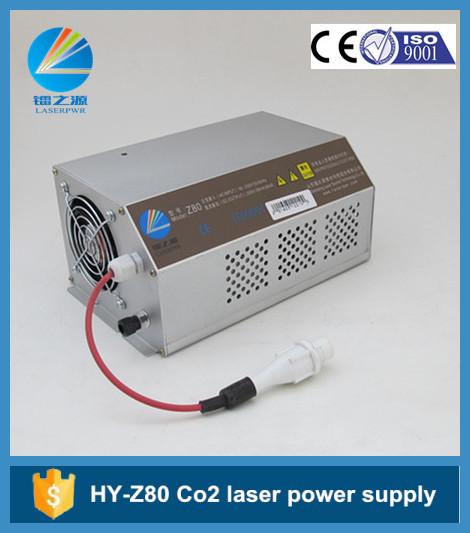

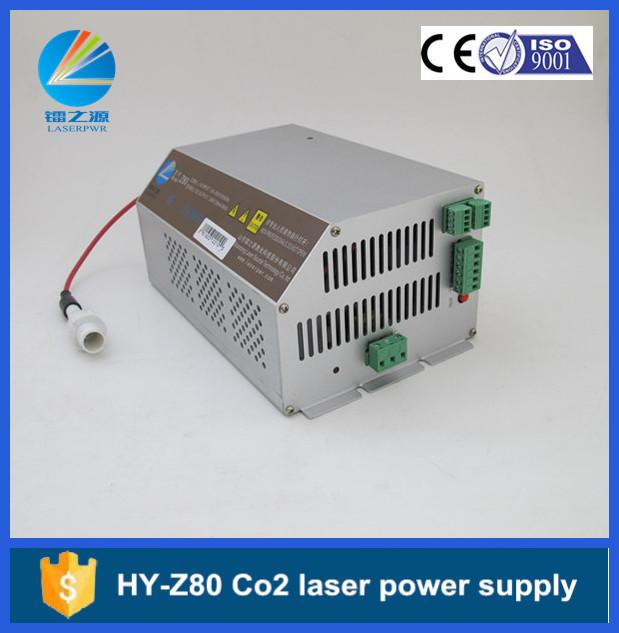

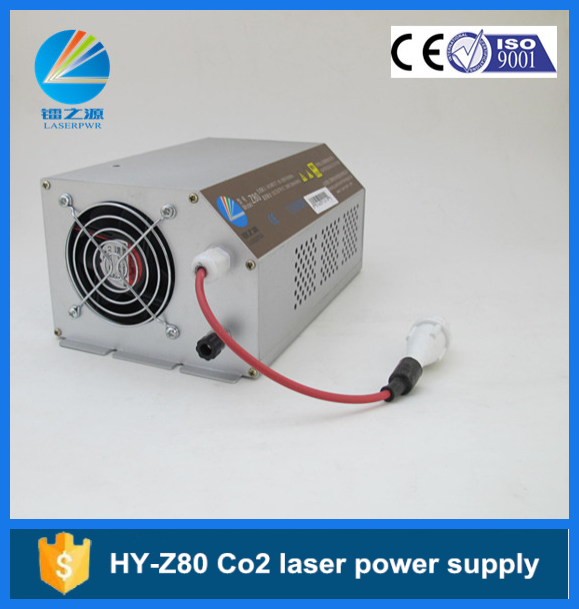

HY-Z80 newest Co2 laser power supply for reci,efr,weiju,spt 80w laser tube
| Price: | US$ 120 / Piece |
|---|---|
| Minimum Order: | 1pc |
| Payment Terms: | TT,Paypal,Western Union |
| Port of Export: | Qingdao,shanghai |
Product Details
| Model No.: | Z80 | Brand Name: | HY |
|---|
| Certification: | CE.ISO9001 |
|---|---|
| Specification: |
Item Z80 Z100 Z150
Input Input voltage AC90-250V AC frequency 47---440Hz Max input power 500W 700W 900W Max input current (when 90V input) 6A 8A 10A Output Max output voltage 40KV 45KV 55KV Max output current 28mA 32mA 38mA Efficiency ≥90%(when full load) MTBF ≥10000 hours Response speed ≤1mS(the time from the signal is given to output current reaches 90% of set current) Switch control mode TTL Power control mode PWM(>20KHz） or 0-5V or 0-3.3V analogue Communication mode Special serial port Withstand voltage Input-output, input-shell:AC1500V 10mA 60s； Working environment Temperature（-10~40）℃, relative humidity:≤90% Cooling Force air cooling Dimension L*W*H(mm) 235*144*104 278*144*104 330*144*104 Weight (KG) 2.15kg 2.45kg 3.2kg Color Silver |
Packaging & Delivery
| Packaging: | carton box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 1000pcs/months |
Product Description
Unique design with several patents
High intelligence: built-in control, can communicate with motion controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.
Make the maintenance much easier: User can judge the problem by himself.
Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.
Universal: with PFC function, AC90-250V input voltage range, globally universal.
Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.
More safety: with high voltage discharge function, no residual voltage when turning off, safer for user.
Excellent cover with patent design: Good appearance, better heat dissipation.
Improved current control mode, more stable laser, better compatibility.
|
