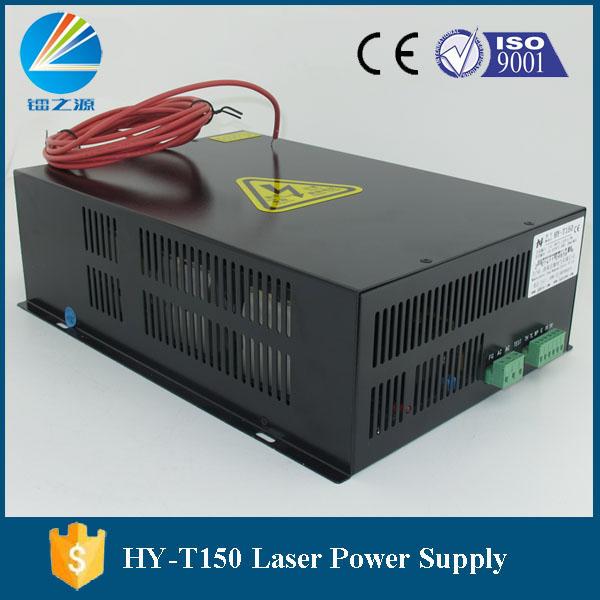

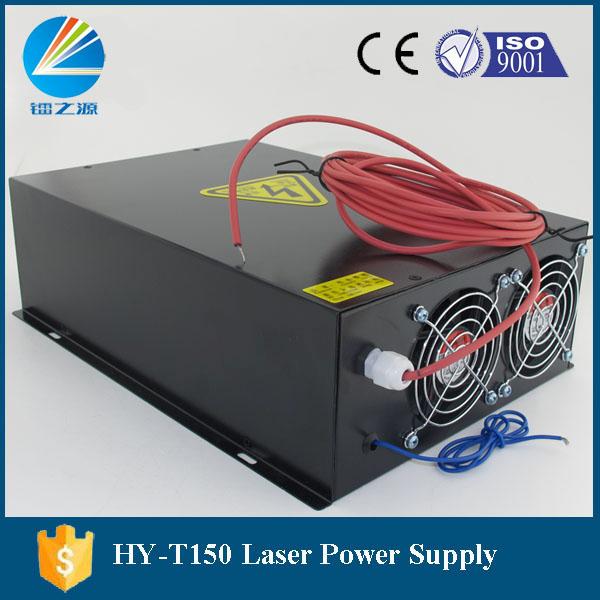

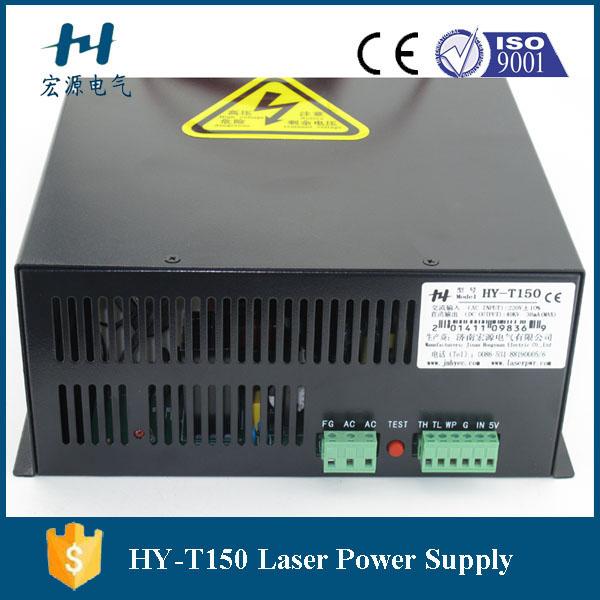

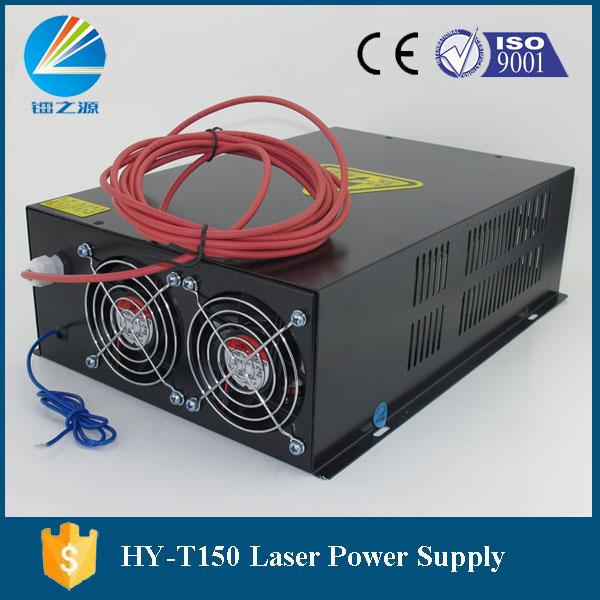

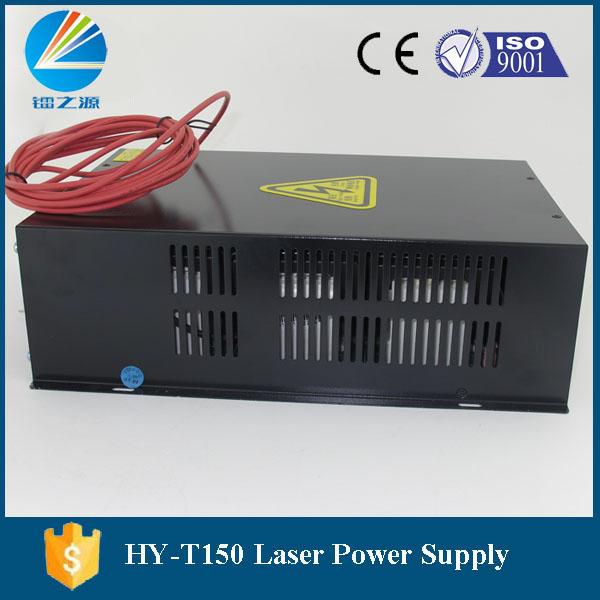

HY-T150 Co2 laser power supply for 150W laser tube
| Price: | US$ 180 / Piece |
|---|---|
| Minimum Order: | 1pc |
| Payment Terms: | TT,Paypal,Western Union |
| Port of Export: | Qingdao,shanghai |
Product Details
| Model No.: | T150 | Brand Name: | HY |
|---|
| Certification: | CE.ISO9001 |
|---|---|
| Specification: |
Input Input voltage AC 220V or 110V(please specify when placing order)
AC frequency 47-440HZ Max input power 1000W Output Max output current 10A Max output voltage DC 50KV Max output current DC 38mA Efficiency >=90%(full load) MTBF(Mean time between failure) >=10000hours Response speed <=1ms(from the TTL signal is given to the output current up to 90% of setting current) Withstand voltage Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure. Weight 4.6kg Environment Operating temperature:-10~40degrees, relative humidity:<=90% Cooling Force air cooling(FAC) Dimension L*W*H=325*240*97mm(normal type) L*W*H=324*147*101mm(special type installed on the beam of laser cutting machine) |
Packaging & Delivery
| Packaging: | carton box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 1000pcs/months |
Product Description
1)High output voltage and high output current: When input AC220V and output current up to 38mA, the voltage can be up to 25KV.
2) Fast response speed: It can obviously enlarge laser power and prolong laser tube’s service life.
3) Easy Control: The start and stop of laser can be easily controlled by TTL level.
4) The power supply has output open circuit protection.
5) The power supply has TTL signal indication, water through signal indication and laser output indication.
6)This power supply has the BUTTON to test output laser manually.
7) Application: Cut thick acrylic and fabric, etc.
|
