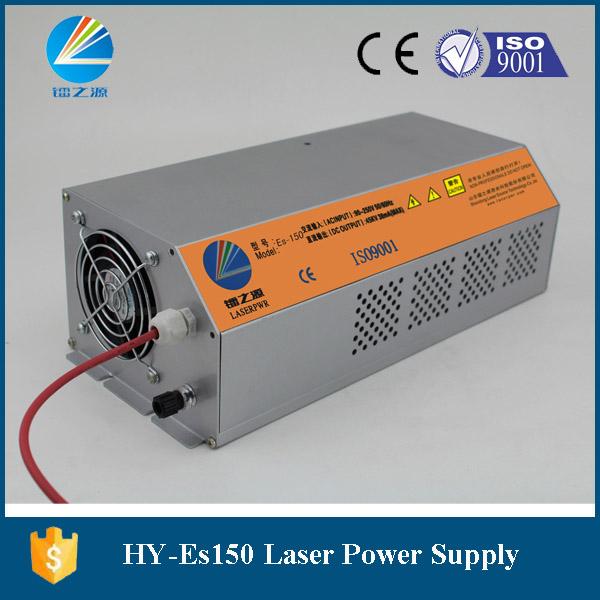

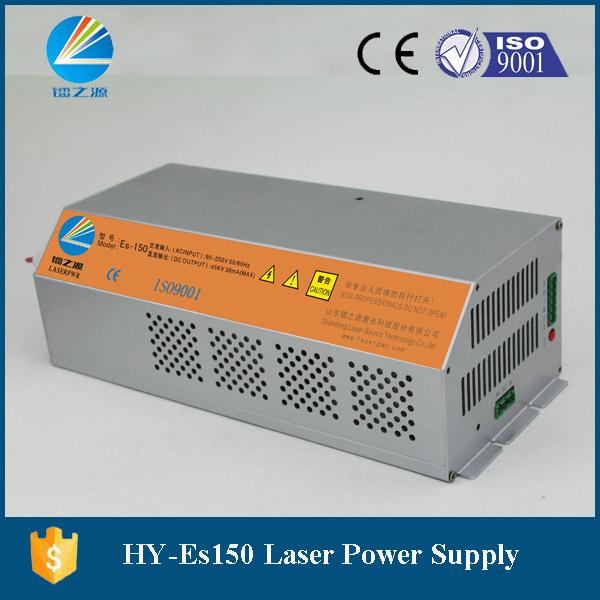

HY-ES150 Co2 laser power supply for EFR F8 laser tube with 150w
| Price: | US$ 165 / Piece |
|---|---|
| Minimum Order: | 1pc |
| Payment Terms: | TT,Paypal,Western Union |
| Port of Export: | Qingdao,shanghai |
Product Details
| Model No.: | ES150 | Brand Name: | HY |
|---|
| Certification: | CE.ISO9001 |
|---|---|
| Specification: |
Item Es80 Es100 Es150
Input Input voltage AC90-250V AC frequency 47---440Hz Max input power 500W 700W 900W Max input current (when 90V input) 6A 8A 10A Output Max output voltage 40KV 45KV 55KV Max output current 28mA 32mA 38mA Efficiency ≥90%(full load) MTBF(mean time between failure) ≥10000hours Response speed ≤1mS(the time from the signal is given to output current reaches 90% of set current ) Withstand voltage Input-output, input-shell:AC1500V 10mA 60s Working environment Temperature(-10~40)℃ , relative humidity:≤90% Cooling Force air cooling Network cable Length(M) 1.5M/3M 1.5M/3M 1.5M/3M Dimension L*W*H(mm) 235*144*104 278*144*104 330*144*104 Weight Net weight(KG) 2.15kg 2.45kg 3.2kg Color Silver grey |
Packaging & Delivery
| Packaging: | carton box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 1000pcs/months |
Product Description
1. Main features:
1.Initiative PFC function, AC90-250V wide input voltage range, universal for all countries voltage.
2.Special design for outer shell, more beautiful appearance, better heat dissipation.
3.Improved current control mode, more stable laser, better compatibility, more adaptable for different kinds of laser tubes.
4.Simple power control, user can control laser with high or low level signal.
5.With test button, easy to test laser tube and power supply.
4.Small size outer shell, suitable for installing on the beam of cutting bed.
2. Advantages:
1. Easy Control: The start and stop of laser can be easily controlled by TTL level. Both 0-5V analog signal and 5V PWM signal can control the laser power.
2. The Laser Power Supply has output open circuit protection.
3. This Laser power supply has TTL signal indication, water through signal indication and laser output indication.
3. Application:
HY-Es150 Laser Power Supply is used for 130W,150W,180W Cutting and Engraving Acrylic, Fabric,
Double Color Sheet and Rubber,ect.
|
