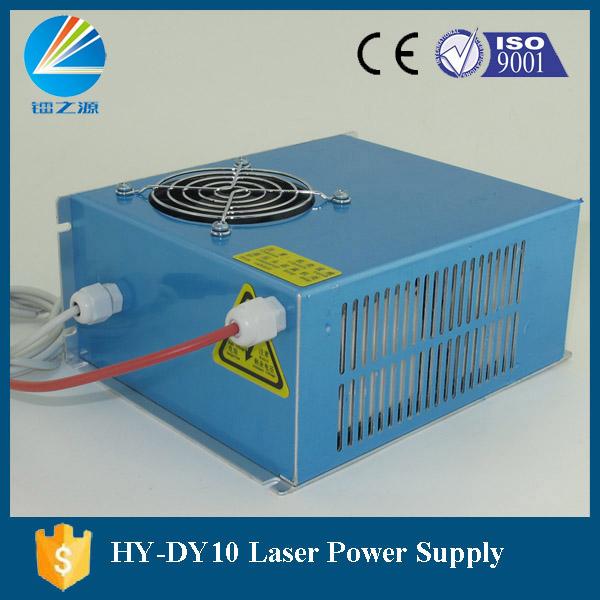

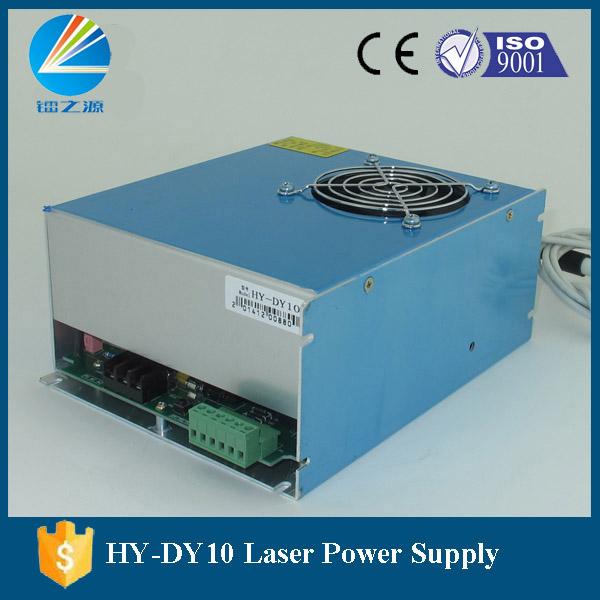

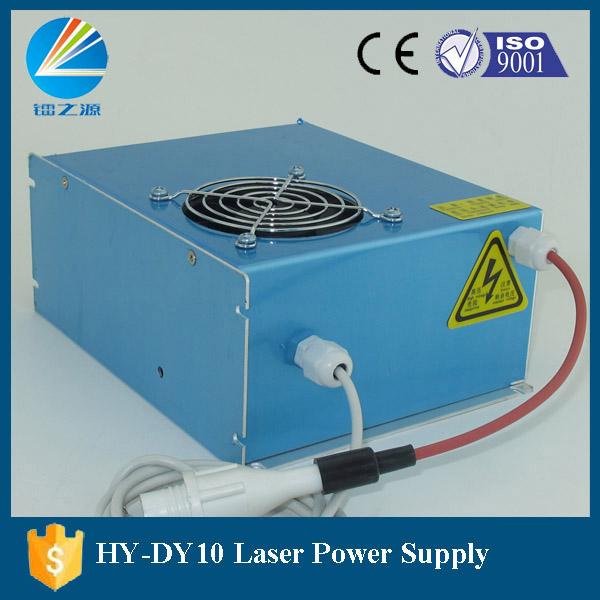

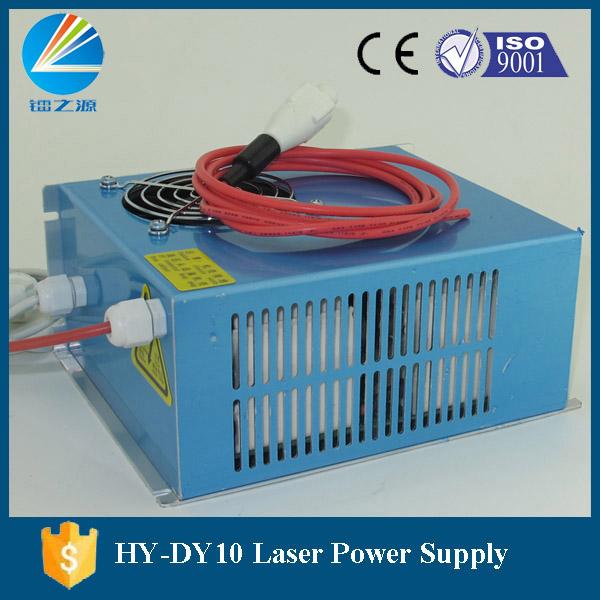

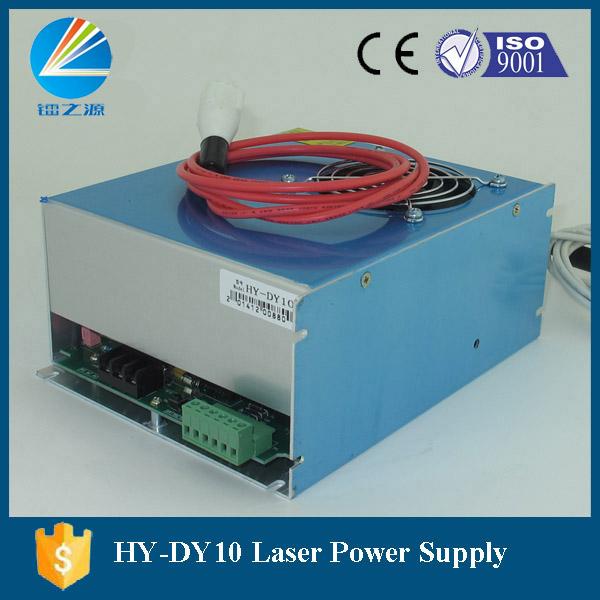

HY-DY10 Co2 laser power supply 80W
| Price: | US$ 97 |
|---|---|
| Minimum Order: | 1pc |
| Payment Terms: | TT,Paypal,Western Union |
| Port of Export: | Qingdao,shanghai |
Product Details
| Model No.: | DY10 | Brand Name: | HY |
|---|
| Certification: | CE.ISO9001 |
|---|---|
| Specification: |
Main features
1)This power supply is specially designed for special laser tube. It makes laser tube output larger and more stable. 2) Quick response speed and good effect: It can enlarge laser power and prolong laser tube’s service life. 3) Easy Control: The start and stop of laser can be easily controlled by TTL level. 4) The power supply has output open circuit protection. 5) The power supply has TTL signal indication, water through signal indication and laser output indication. 6)This power supply has the BUTTON to test output laser manually. 7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc. |
Packaging & Delivery
| Packaging: | carton box |
|---|---|
| Delivery/Lead Time: | 5 days |
| Production Capacity: | 1000pcs/months |
Product Description
Type HY-DY10
Input Input voltage AC220V or 110V(please specify when placing order)
AC frequency 47-440HZ
Max input power 450W
Max input current 5A
Output Max output voltage 35KV
Max output current 24mA
Efficiency >=90%(full load)
MTBF(Mean time between failure) >=10000hours
Response speed <=1ms(from the TTL signal is given to the output current up to 90% of setting current)
Withstand voltage Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure.
Environment Operating temperature:-10~40degrees, relative humidity:<=90%
Cooling Force air cooling(FAC)
Dimension 78*155*75mm
Weight 1.75kg
|
