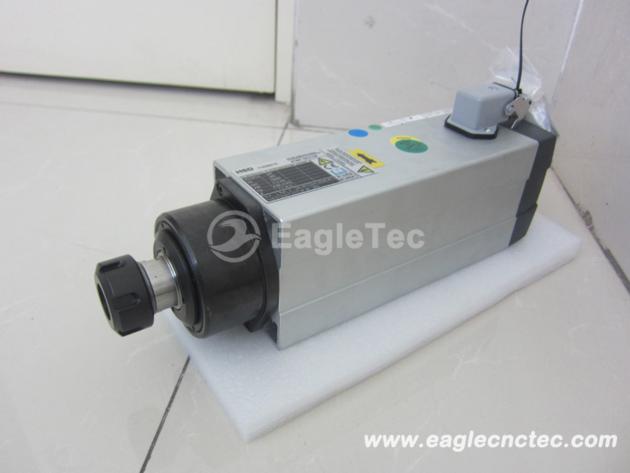

HSD Spindle 3.0kw AT/MT 1073-120 4.5kw AT/MT 1090-100 6.0kw AT/MT 1090-140 for Sale
| Price: | US$ negotiable / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, West Union, Paypal, Money Gram |
| Port of Export: | Jinan |
Product Details
| Model No.: | 4.5kw AT/MT 1090-100 | Brand Name: | HSD |
|---|
| Certification: | |
|---|---|
| Specification: |

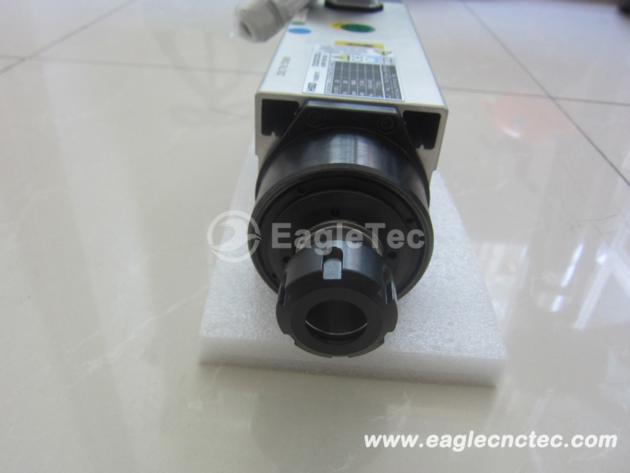

HSD Spindle original from Italy for Sale From * All cnc machine parts, one-stop shopping EagleTec provides Italy origin HSD spindle models includes: Manual tool change type AT/MT 1073-060 1.5KW 18000rpm ER25, AT/MT 1073-120 3.0KW 18000rpm ER25, AT/MT 1090-100 4.5KW 18000rpm ER32, AT/MT 1090-140 6.0KW 18000rpm ER32, AT/MT 1090-140 7.0KW 24000rpm ER32, AT/MT 1120-170 13.5KW 18000rpm ER40 Automatic tool change type ES915 NC 4.6KW ISO30 24000rpm, ES929 NL 9KW ISO30 24000rpm, ES929 NL 9KW HSK F63 24000rpm, ES929 NC 12KW ISO30 24000rpm, ES929 NL 12KW HSK F63 24000rpm and more |
Packaging & Delivery
| Packaging: | in strong plywood box |
|---|---|
| Delivery/Lead Time: | 3 Days |
| Production Capacity: | 200 sets/month |
Product Description
Also we supply: origin hsd spindle parts includes 6-pin connector, spindle bearing, tool holder, tool clamp and collets. Looking for HSD spindle bearing? Please click order hsd spindle bearing kit
Origin Italy HSD Spindle AT/MT 1073-120 Technical Parameter
Voltage | 380V ¯10%
Output Power | 3 (3.6) kw
Current | 7.7 (9.3) A
Frequency | 300 Hz
Rated Speed | 18,000 rpm
Max. Speed | 18,000 rpm
Torque | 1.59 (1.91) Nm
Collet | ER25
Cooling | Air
Weight | 8.5KG
Origin Italy HSD Spindle AT/MT 1090-100 Technical Parameter
Voltage | 380V ¯10%
Output Power | 4.5 (5.4) kw
Current | 9.7 (11.6) A
Frequency | 300 Hz
Rated Speed | 18,000 rpm
Max. Speed | 18,000 rpm
Torque | 2.39 (2.86) Nm
Collet | ER32
Cooling | Air
Weight | 10.5KG
Origin Italy HSD Spindle AT/MT 1090-140 Technical Parameter
Voltage | 380V ¯10%
Output Power | 6 (7.2) kw
Current | 12.6 (15.5) A
Frequency | 300 Hz
Rated Speed | 18,000 rpm
Max. Speed | 18,000 rpm
Torque | 3.18 (3.82) Nm
Collet | ER32
Cooling | Air
Weight | 11KG
Welcome your contact.
|
