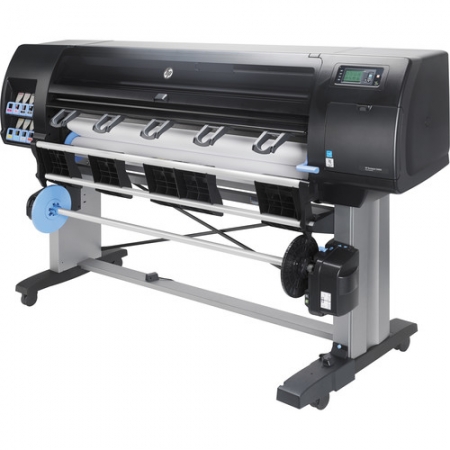

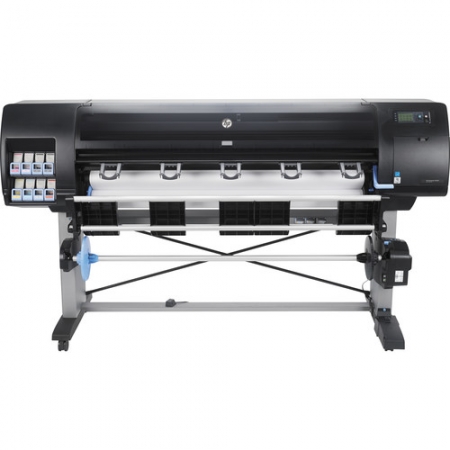

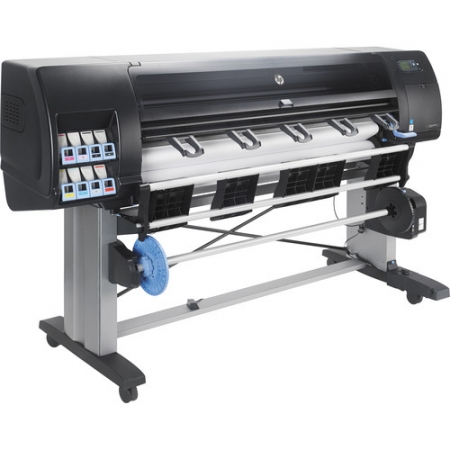

HP DESIGNJET Z6800 60IN PHOTO PRODUCTION PRINTER

Printing Method
Printing Technology HP Thermal Inkjet
Maximum Resolution Color: 2400 x 1200 dpi
Print Speed High Quality Mode: 212 ft°/hr (19.7 m°/hr)
Fast Mode: 1500 ft°/hr (140 m°/hr)

Color (ISO N5), Best, D Glossy Paper: 3.2 min/page
Color (ISO N5), Normal, D Glossy Paper: 2.1 min/page
Color (ISO N5), Draft, D Coated Paper: 18 sec/page
Color (ISO N5), Normal, D Coated Paper: 1.5 min/page
Ink Type Pigment-based
Ink Cartridge Configuration 8: Chromatic red, light cyan, magenta, light magenta, yellow, light gray, matte black, photo black
Compatible Ink Cartridges HP 773A
HP 771A
Number of Nozzles Eight bi-color printheads with 1,056 nozzles per color, 1,200 nozzles per inch
Printhead Swath 1.67" (42.5 mm)
Minimum Line Width 0.0026" (0.066 mm) (ISO/IEC 13660:2001(E))
0.0008" (0.02 mm) (HP-GL/2 addressable)
Line Accuracy ¯0.1%
Color Accuracy Median < 1.25 dE2000, 95% of colors < 2.75 dE2000
Color Stability < 1 dE2000 in less than 5 minutes
Repeatability Average < 0.5 dE2000, 95% of colors < 1.25 dE2000
Maximum Optical Density 4.5 L x min/2.31 D
Paper-Feed Method Roll feed
Paper Types Bond and coated paper, technical paper, film, photographic paper, proofing paper, backlit, self-adhesive, banner and sign, fabric, fine art printing material
Paper Sizes 11-60" (27.9-152.4 cm) wide rolls up to 6.7" (17.0 cm) in diameter
Media Thickness Up to 22 mil (0.56 mm)
Margins 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5 mm)
Paper Handling Automatic cutter
Take-up reel
Roll feed
Connectivity
Interfaces 1000Base-T Gigabit Ethernet port
EIO Jetdirect accessory slot
Memory 64 GB (virtual)
Hard Disk Drive 320 GB
Printer Language Standard: HP-GL/2, HP-RTL, CALS G4
Optional: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
PostScript Support Adobe PostScript 3
Printing Paths Printer driver, HP Embedded Web Server
Drivers HP-GL/2, HP-RTL drivers for Windows; PostScript Windows and Mac drivers with optional PostScript/PDF Upgrade Kit
Physical
Power Requirements Auto Ranging: 100-127 VAC (¯10%), 5 A; 220-240 VAC (¯10%), 3 A; 50/60 Hz (¯3 Hz)
Power Consumption Printing: 270 W
Ready: Sleep: Off:
Certifications Safety: USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC)
Electromagnetic: Compliant with Class A requirements, including: USA (FCC), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP)
Environmental: ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT Bronze
Acoustic Noise Sound Pressure
Printing: 53 dB(A)
Ready: 39 dB(A)
Sleep: 39 dB(A)

Sound Power
Printing: 7.0 B(A)
Ready: 5.5 B(A)
Sleep: 5.5 B(A)
Temperature / Humidity Operating Temperature: 41 to 104®F (5 to 40®C)
Storage Temperature: -4 to 131®F (-20 to 55®C)
Operating Humidity: 20 to 80%, relative
Dimensions (WxDxH) 95.7 x 27.2 x 53.9" (243 x 69 x 137 cm)
Weight 419 lb (190 kg)
Packaging Info
Package Weight 555.6 lb
Box Dimensions (LxWxH) 106.0 x 47.0 x 30.0"
