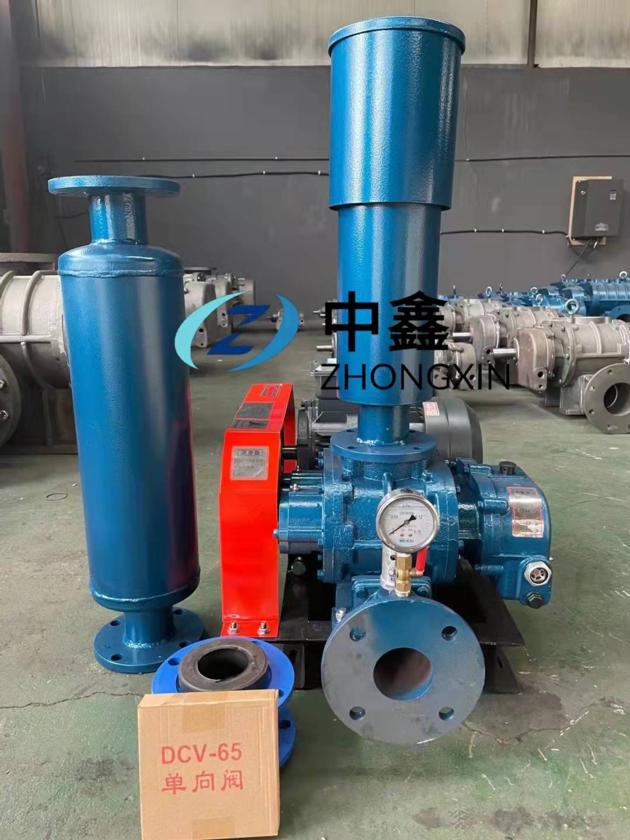

HIGH EFFICIENCY OXYGENATION ROOTS BLOWER

Three lobe roots blower is a kind of synchronous compression
machine with two impeller. Each three-blade rotor is supported by
two bearings. By using a pair of synchronous gears, the relative
position of the two rotors remains unchanged. It is a volumetric
blower with the characteristics of forced gas transmission.
Application
1.Aquaculture
2.Sewage treatment/ Effluent Treatment & Sludge Management
3.Conventional anaerobic & aerobic systems

4.Chemical industry
5.Mining
6.Solid Waste Management Bio gas plants

7.Engineered landfills
8.Printing and paper feeding
9.Electrical transportation

10.Pneumatic conveying
11.Pneumatic transport
12.Air Pollution Control, Noise Abatement & Ventilation Wet scrubbers.

13.Vacuum packaging
14.Part demolding
Features
1.The helical construction uses the stator helical method that the screen lines of casing at the suction and discharge sides are
cut to a helical shape,and the triangle suction and discharge port formed by a straight line of the rotor top is to be opened and
closed gradually.
2.The rotors are three lobes.
3.By adoption of an unique profile of rotor, the clearance between the rotors can be held to be constant, which makes the
efficiency even higher.
4.The precision of rotors is fully controlled and variation of precision between blowers is almost nil because the rotors are
produced under the mass production control by utilizing a prenision NC maching.
5.The advanced driving gears are adopted but only to extend the use life but also to make noise lower.
