HDMI v2.0 splitter 1x4 with IR extension,EDID management,RS232

HDMI v2.0 splitter 1x4 with IR extension,EDID management,RS232

Description:
This 1x4 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/60Hz.
This product can support EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, this product is with built-in IR extension function, it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control the source.

Features :
* Support HDMI 2.0 ,HDCP2.2
* Support HDR
* Support 3D video format
* Support CEC (only output1)
* Support high resolution up to 3840X2160/60HZ
* Support the max baud rate of 6G and TMDS clock can be up to 600 MHz
* Support 8/10/12 bit deep color
* Support AWG26 HDMI standard cable:
1) when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
2) when the resolution is 4K, input up to 8 meters, output up to 8 meters.Specifications
* Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
* Built-in IR extension function.( it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to remote control the source)
* Support serial port online upgrade
* Support EDID management
* 5V/2A power adapter

Specifications:
HDMI version: HDMI 2.0
HDCP version: HDCP 2.2
HDMI resolution: up to 3840*2160/60Hz
Support video format: 8/10/12bit Deep color
Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 600MHz
Max baud rate: 6Gbps
Input cable distance: (1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Output cable distance: (1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Max working current: 1.4 A
Power adapter format: input AC (50Hz, 60Hz) 100V-240V; output: DC5V/2A
Operating Temperature range : (-15 to +55℃)
Dimension (L x W x H): 220x75x24 (mm)
Weight: 530g

DIP EDID Switch Description:
DIP 1 2 3 4
X 0 0 0 : copy output1 EDID only
X 0 0 1 : EDID MIX
X 0 1 0 : EDID Download (RS232)
X 0 1 1 : 4K X 2K 30HZ
X 1 0 0 : 4K X 2K 60HZ
X 1 0 1 : 1080P 3D 2ch
X 1 1 0 : 1080P 2D 2ch
X 1 1 1 : 1080P 2D 5.1ch

1 is used for upgrades, 1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0)

Working Mode Description:
There are two working mode for product, normal working mode and upgrading mode, which is decided by DIP EDID switch 1, 1 is upgrading mode,0 is normal working mode.

IR Extension description:
There is an IR TX Extension port, it can be used with an optional HDMI 2.0 repeater which works as IR-RX and IR extended via HDMI cable

Output port:
Only output1 can support CEC function, output 2~4 support IR extension function

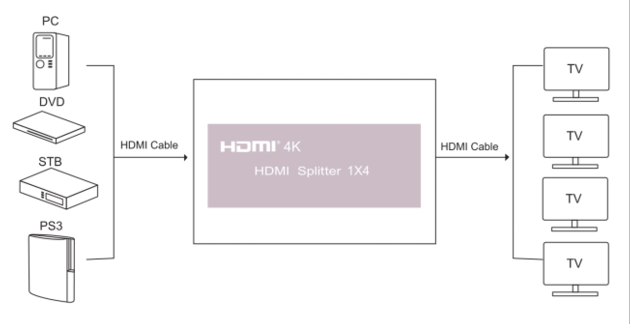

Connection and Operation:
1.Connect the HD source to the splitter input with one hdmi cable
2.Connect the splitter output to the diaplays with 4 hdmi cables
3.Connect 5V/2A power adapter to the splitter

Package include :
1. HDMI splitter x1pc
2. Power adapter x1pc
3. User manual x1pc
4. IR cable x1pair
5. HDMI repeater (optional)
