HDMI to SDI Converter support 2.1/5.1/7.1 audio sound channel,RS232 serial port control

HDMI to SDI Converter support 2.1/5.1/7.1 audio sound channel,RS232 serial port control

This HDMI to SDI converter support high-definition HDMI signal convert to broadcasting SDI signal output,can convert high-definition or standard definition HDMI with audio digital signal into broadcasting high-definition or standard SDI definition and independent audio channal output, which can be display and edit in the broadcasting SDI equipment.
This product can Support video and audio sync transmitting . Excellent audio and video quality and the characteristics of high reliability, low power consumption.

Features :
1.SDI(BNC female)output is compatible withSMPTE 424M, SMPTE 292M and SMPTE 259M
2.HDMI is compatible with V1.3, support high resolution 1080P/60Hz
3.Support HDMI EDIE automatic recognition function.
4.Support HDCP digital content protection.
5.Support 2.1/5.1/7.1 audio sound channel.
6.Support video and audio sync output.
7.Support two SDI signals output
8.Support IR extending control
9.Support RS232 serial port control.
10.Working temperature: -10 to +45®C.
11.Operating humidity: 5 % to 90%RH (non-condensing)
12.5V/2A power adapter
13.Dimension (L×W×H):125mm×115mm×30mm
14.Weight : 360g

Specifications:
1.Input:one HDMI input support highest resolution 1080P/60Hz
2.Input format: support resolution of 576I,480I,720P50/60Hz,1080I50/60Hz,1080P50/60Hz
3.Input Max bandwidth:225MHz/36 bit deep color
4.Output: Two SDI(BNC female) support SD/3G/HD-SDI signal
5.Output signal types:SD-SDI(270mbps) HD-SDI(1.485Gbps) 3G-sdi(2.97Gbps), Minimum distance is 70 meters.
6.SDI signal amplitude:0.8Vp-p
7.SDI impedance:75 ohm

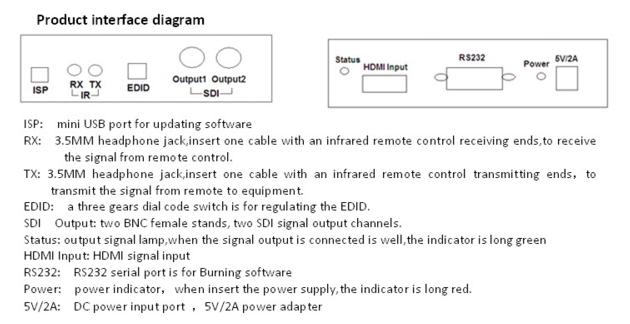

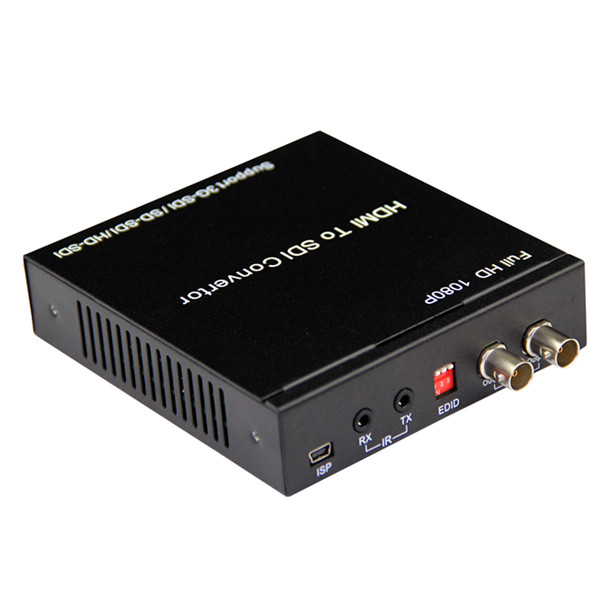

Product interface diagram:

ISP: mini USB port for updating software
RX: 3.5MM headphone jack,insert one cable with an infrared remote control receiving ends,to receive the signal from remote control.
TX: 3.5MM headphone jack,insert one cable with an infrared remote control transmitting ends,to transmit the signal from remote to equipment.

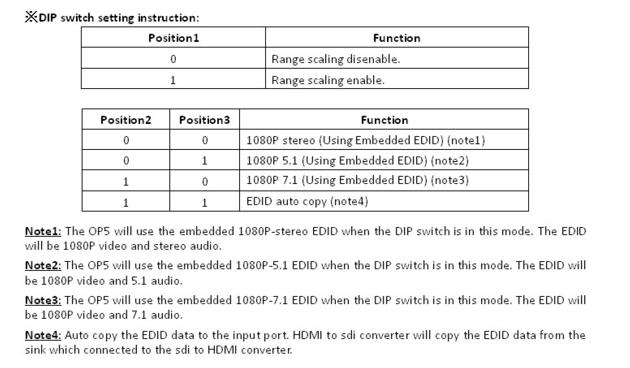

EDID: a three gears dial code switch is for regulating the EDID.
SDI Output: two BNC female stand, two SDI signal output channels.
Status: output signal lamp,when the signal output is connected is well,the indicator is long green

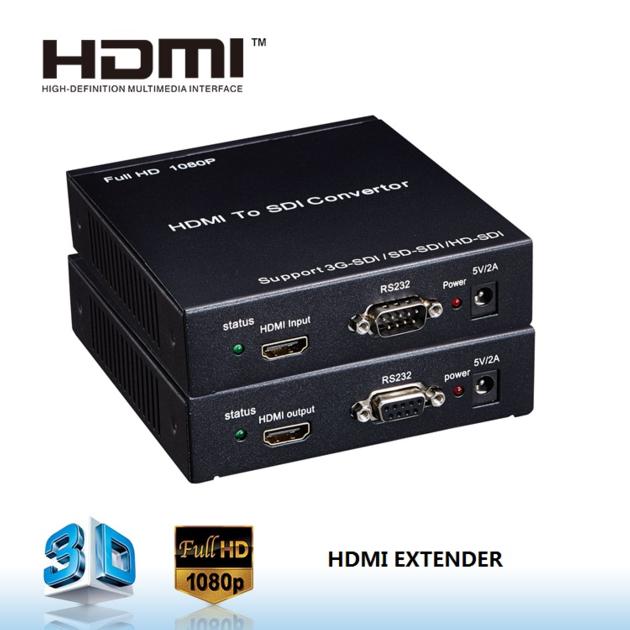

HDMI Input: HDMI signal input
RS232: RS232 serial port is for Burning software
Power: power indicator,when insert the power supply,the indicator is long red
5V/2A: DC power input port ,5V/2A power adapter

Application area:
Publish information systems in Subway and train stations
Telecast live
High definition video conference
High definition video surfeilance
Industrial production monitoring and control system
Traffic monitoring system
Security system and medical system.
Remote multi-media system

The Package includes:
1. HDMI to SDI converter * 1pc
2. IR-TX cable * 1 pc
IR-RX cable * 1pc
3.5V DC Power adapter * 1pc
4. User Manual * 1pc
