HDMI 3x1 Switcher 3 in 1 out 3D 1080p@60Hz w/IR Remote Control

HDMI 3x1 Switcher 3 in 1 out 3D 1080p@60Hz w/IR Remote Control

INTRODUCTIONS:
The 3- Port HDMI switcher allows Up to 3 HDMI ports to be switched to a single display terminal via remote control or buttons on unitl. The switcher can also placed at the end of a long HDMI cable to regenerate the HDMI signal. This HDMI Switcher supports video formats including 720p, 1080i, 1080p.

FEATURES:
1.Support 2.5Gbps data rate for tmds clock up to 250MHz
2.Support HDMI1.4A
3.Support 3D
4.Supports highest video resolution 1080p/60Hz
5.Support UXGA, WUXGA
6.Support 8/10/12 bit deep color
7.Support AWG26 HDMI standard cable, Input up to 20m, output up to 10m
8.Supports single high definition display for multiple sources, such as DVD Players and Stellite Receivers, Digital Projectors, A/V Receivers, Set Top Boxes
9.Remote Control for operational flexibility and easy to control
10.DC5V/1A power supply

SPECIFICATIONS:
HDMI version: HDMI 1.4A
HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format: 8/10/12 bit deep color
Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth: 250MHz
Max baud rate : 2.25Gbps
Input cable distance: ≤20m AWG26 HDMI standard cable
Output cable distance: ≤10m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format..Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range : (-15 to +55®C)
Dimension (L x W x H): 128x53x20 (mm)
Weight: 140g

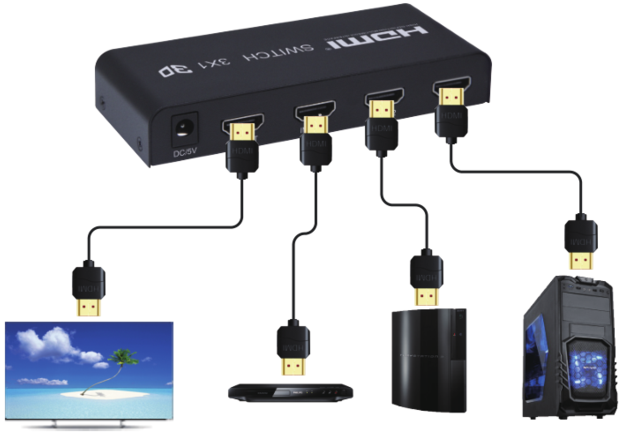

Connection and operation:
1.Connect 3 HDMI signal sources into HDMI switch input with 3 HDMI cables.
2.Connect 1 HDMI display source into HDMI switch output with 1 HDMI cable.
3.Connect 5V/1A power adapter to the HDMI switch.

The package includes:
1. HDMI Switch
2. IR Remote Control
3. 5V 1A DC Power adapter
4. User Manual
