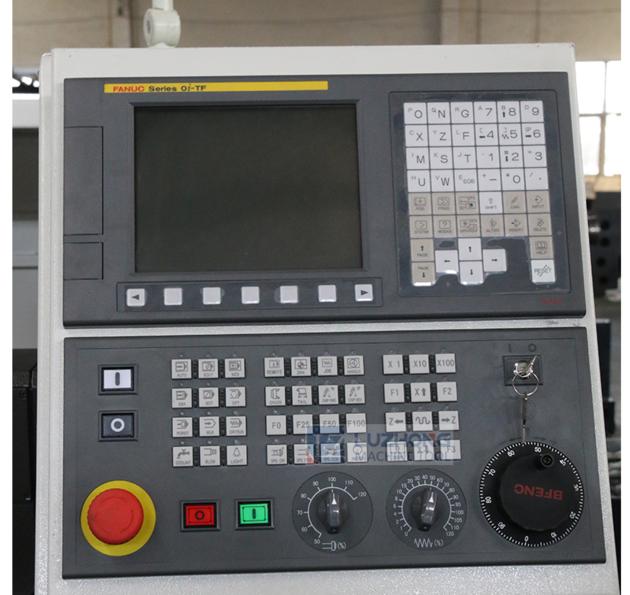

H36 Linear Guide Rail CNC Lathe
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT,LC |
| Port of Export: |
Product Details
| Model No.: | Brand Name: | LUZHONG |
|---|
| Certification: | CE,SONCAP,EAC,SGS,TUV,BV |
|---|---|
| Specification: | CNC Lathe Machine |
Packaging & Delivery
| Packaging: | Export free fumigation packaging |
|---|---|
| Delivery/Lead Time: | 30days |
| Production Capacity: | 300 units / month |
Product Description
H36 Linear Guide Rail CNC Lathe
Flat Bed CNC Lathe Machine
CNC Lathe Machine
CNC Lathe Features:
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,Optional homemade spindle
Higher rigidity cast iron
Application:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobie,motorcycle,bearoings and so on.
Product main technical specifications:
Specifications Units H36
Max.swing over bed mm 360
Max.swing over cross slide mm 110
Max.processing length mm 250
X/Z axis travel mm 340/250
Spindle nose A2-5
Spindle bore mm 48
Bar capacity mm 38
Max. spindle speed rpm 2500/4000
Chuck size mm 6
Spindle motor KW 4
X/Z axis repeatability mm ¯0.003
X/Z axis feed motor torque N.m X:4 Z:4
X/Z axis rapid traverse m/min 15/15
Tool post type 4 gang type tool post
Cutting tool shape size mm 20x20
Guide form Linear guide rail
Total power capacity KVA 8
Machine dimension(LxWxH) mm 2000/1400x1580
Net weight kg 1500
|
