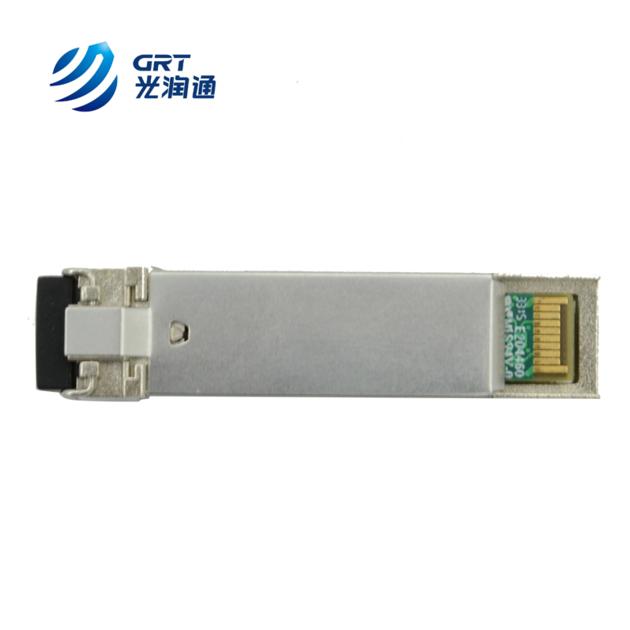

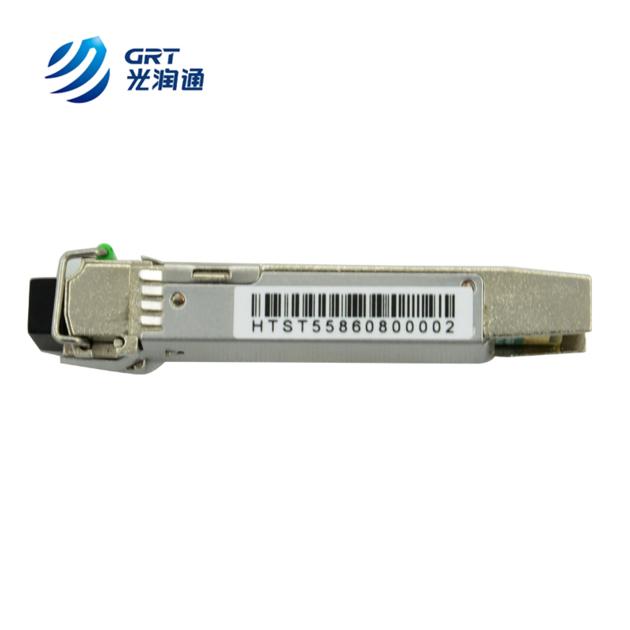

H-3810FNL-S 10G-ZR Singlemode SM 1550nm 10G 80km SFP plus Fiber Optical Module

Product Description
Optical Transceiver.jpgH-3810FNL-S Cisco Switch Compliant Singlemode SM 1550nm 10G 80km SFP plus Fiber Optical Transceiver


1. Key Features

H-3810FNL-S is a long distance reach 10Gigabit optical transceiver module, with hot pluggable SFP+ form factor, can reach up to 80km based on 1550nm single mode fiber (SMF). It commerical case operating temperature 0®-70®C, support 10GBASE Ethernet and OTU2/OTU2e hot pluggable I/O device, fully compatible with the SFP+ port on the Switch.
SFP+ package with duplex LC connector
Metal with lower EMI
Excellent ESD protection
EML Transmitter and PIN Receiver
Distance up to 80Km on 1550nm SMF
Single 3.3V power supply
RoHS Compliant and Lead-Free
DDM digital diagnostic monitoring function
Compliant with IEEE 802.3ae
TU-T G.959,G.691 compliant
Temperature-stabilized EML transmitter and APD ROSA
Up to 80KM for single mode fiber
GR-253-CORE compliant
Compliant with SFP+ MSA:
SFF-8431 Rev4.1
Digital diagnostic compatible with SFF-8472 Rev11.0
Single 3.3V power supply and Low power dissipation <2.5W


2. Application

Optical transceivers can be applied for Gigabit Ethernet, Fiber channel, SDH/SONET/ATM, switch, routers, servers, Ethernet Switch and servers, storage, SONET(OC-192)/SDH(STM64) card, high speed storage area network (SAN), high speed data channel, PDH and other network transmission systems.
NIC network cards
Switches
Routers
VPN equipment
Traffic control device
GAP
Fiber Media Converter
Firewall
Storage device
Telecommunication
Fiber Channel
Keywords: 10g 80km optical module , 10g 80km sfp,10g optical module

3. Customer Ordering

For each model of optical module, there're 3 levels for choice.

Product Level
Description
Aerospace Level made by 100% imported material
Telecommunication Level 60% of material are imported
Network Level chipset imported, others are of dometic brand

4. Compatibility

All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.

For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.

Cases Show

GRT's products have been widely used in fields like network secutity, storage,server, telecommunication, finance, railway, military, oil, customs and water conservation, etc.




Production

Based on the principle of Quality comes first, GRT holds a complete series of quality tests for all its products from material to finished product. Strict tests like adhesion test, current test, electrostatic protection, return loss test, temperature cycle aging test, data reducing, functional test,hardware test, communication test and flow test will be made before storaging and leaving factory.



5. Normal Package & Notes on application

Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
We can ship by DHL, EMS, FedEx, TNT, UPS, etc or other express ways upon your request.
