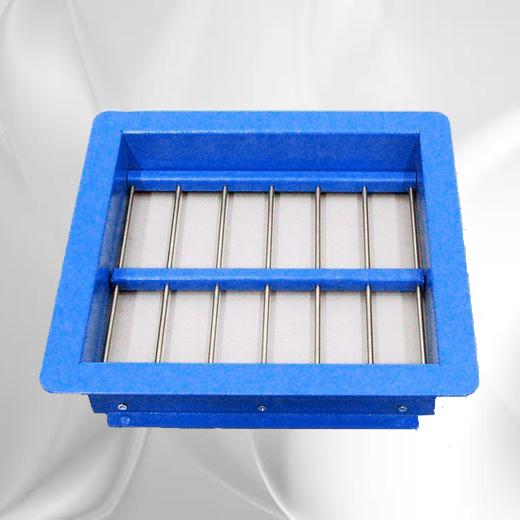

Grid Sieve Sets (Flakiness Index Sieve EN)

Grid Sieve Sets (Flakiness Index Sieve EN)

PRODUCT CODE
PRS-A0320 Grid Sieve Set (Flakiness Index Sieve Set EN)

PRS-A0321 Grid Sieve (Flakiness Index Sieve EN) 2.5 mm

PRS-A0322 Grid Sieve (Flakiness Index Sieve EN) 3.15 mm

PRS-A0323 Grid Sieve (Flakiness Index Sieve EN) 4 mm

PRS-A0324 Grid Sieve (Flakiness Index Sieve EN) 5 mm

PRS-A0325 Grid Sieve (Flakiness Index Sieve EN) 6.3 mm

PRS-A0326 Grid Sieve (Flakiness Index Sieve EN) 8 mm

PRS-A0327 Grid Sieve (Flakiness Index Sieve EN) 10 mm

PRS-A0328 Grid Sieve (Flakiness Index Sieve EN) 12.5 mm

PRS-A0329 Grid Sieve (Flakiness Index Sieve EN) 16 mm

PRS-A0330 Grid Sieve (Flakiness Index Sieve EN) 20 mm

PRS-A0331 Grid Sieve (Flakiness Index Sieve EN) 25 mm

PRS-A0332 Grid Sieve (Flakiness Index Sieve EN) 31.5 mm

PRS-A0333 Grid Sieve (Flakiness Index Sieve EN) 40 mm

PRS-A0334 Grid Sieve (Flakiness Index Sieve EN) 50 mm

Used for the determination of the flakiness index of the aggregate.
Consisting of an electrostatically painted frame and 5 mm diameter stainless steel bars with apertures state below.
For sample preperation 4.5, 6.3, 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50, 63, 80 and 100 mm aperture sizes test sieves should be ordered seperately.

Product Code Aperture Weight Dimensions
PRS-A0321 2.5 mm 3.3 kg 340x320x80 mm
PRS-A0322 3.15 mm 3.3 kg 340x320x80 mm
PRS-A0323 4 mm 3.8 kg 340x320x80 mm
PRS-A0324 5 mm 3.8 kg 340x320x80 mm
PRS-A0325 6.3 mm 3.7 kg 340x320x80 mm
PRS-A0326 8 mm 3.6 kg 340x320x80 mm
