Good compatibility FTTH ONU Huawei ONT GPON ONU product 1GE WIFI GPON ONU
| Price: | US$ 23 |
|---|---|
| Minimum Order: | 50 |
| Payment Terms: | T/T,Western Union,Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | HG911-W | Brand Name: | Huanet |
|---|
| Certification: | CE,RoHs, FCC |
|---|---|

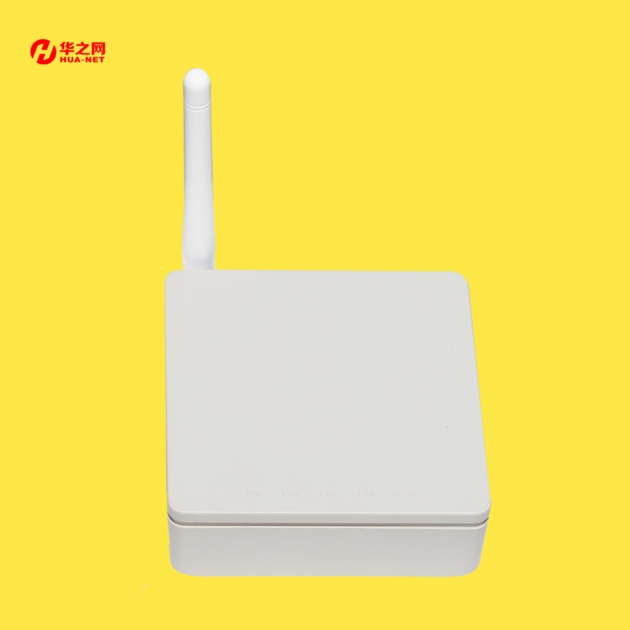

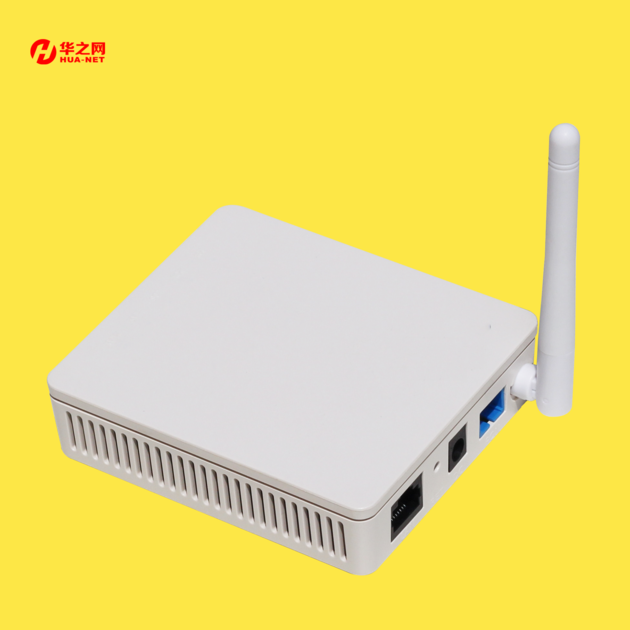

| Specification: | HG911-W is a mini GPON ONT terminal device , which applies to pure broadband access. It adopts mini-type compact structure design with high-integration and can provide 1 GE(RJ45)and 1*wifi interfaces. Supports the technology of layer 2/3 Ethernet switch and it’s easy to maintenance and manage. It can be applied to FTTH/FTTP access application for resident and business users, and it is fully compliant to technical regulations such as such as ITUT G.984.x and technical requirement of GPON Equipment. |
Packaging & Delivery
| Packaging: | As our packaging, also can be your's |
|---|---|
| Delivery/Lead Time: | 7-25 days |
| Production Capacity: | 5000pcs/Mon |
Product Description
Feature:
Full compatible with ITU-T G.984.
Support triple churning encryption request
Support DBA reporting mechanism request
Support the remote upgrade and download
Support status detection and fault report
Support to save configured parameters if power down
Support to configure the work mode at the user port
Support MDI-MDIX automatic-detection at the user port.
Support data encryption and decryption
Support access authentication based on serial number
Support access authentication based on MAC address
Support 802.1Q VLAN
Support rich QinQ VLAN functions and IGMP Snooping
Support traffic rule to modify the related priority.
Support IEEE802.11n 2T2R WiFi function
Support to restore the factory settings
Support the remote reset and reboot
Support dying gasp outage alarm
Fully compatibility with OLT based on Broadcom/huawei/zte/Cortina chipset.
Applications:
Data services
Voice services
Video services
Monitoring service
FTTH
Performance Specification:
Technical items
Description
Upstream PON interface
1 GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps ,1*WIFI
Wavelength
Tx 1310nm, Rx 1490nm
Optical output power
-1~+4dBm
Receiving sensitivity
<-28dBm
Farthest distance
20km between OLT and ONU
Optical interface
SC/UPC connector
Downstream LAN interface
10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors,1*WIFI
Layer 2 switch
Support IEEE802.1Q VLAN
Support speed rate inhibition of broadcast packet at ONU
IEEE 802.3X flow control
Support 16 multicast addresses at each LAN port
WIFI
Integrated 802.11b/g/n
Support WEP and WPA/WPA2 security protocols
Management maintenance
Centralized OLT management based on OAM
WEB,CLI
Upgrade software remotely
Support to save configuration parameters when power down
Indicators
5 indicators, for status of power supply, PON port and 1 Giga-Ethernet port.
DC power supply
+12V, external AC-DC power adaptor
Power consumption
≤2.5W
Operating condition
Operating temp: -5~+55℃
Operating humidity:10~90%(non-condensed)
Storing condition
Storing temp: -30~+60℃
Storing humidity:10~90%(non-condensed)
Dimension
120mm*100mm*30mm(length*width*height)
Net weight
0.24Kg
|
