Glass/quartz/sapphire parts, substrate, via and blind holes drilling, no chipping cut

Glass, as well as quartz and sapphire parts are quite difficult for traditional processing methods, and today these material are more and more widely used in many industries and R&D. Walthy are experienced of designing and manufacturing the such works, we are able to drill min 0.1mm holes in 5mm thick glass, 2.5D structuring inside glass, and we cut glass with no chipping and high speed, so that we are always the important partner of our customers who dealing with glass products

Capacity:

Cut/Drill/Etching/Marking in glass

Glass thickness: 0.05~10mm

Min hole size: 0.05mm

Max cutting speed: 400mm/s @0.5mm thin glass

Min feature size(etching,depth,etc) : 10um

If you are difficulty to acquire such special works, please feel free to contact with us.

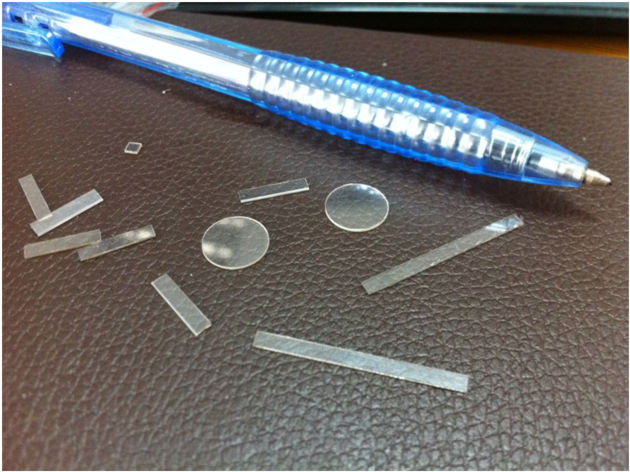

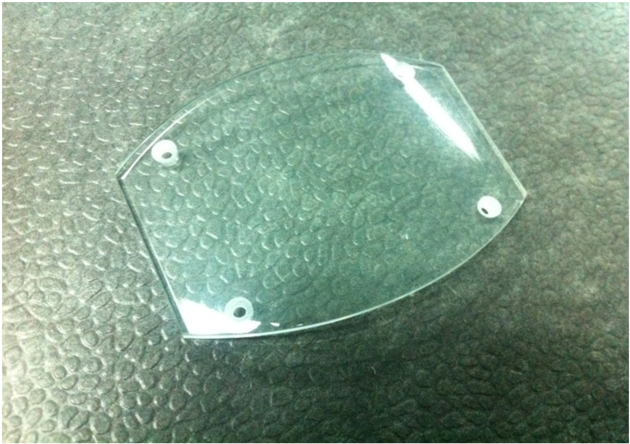

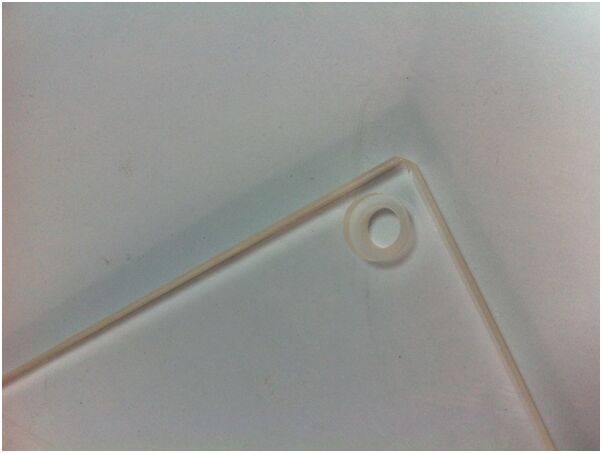

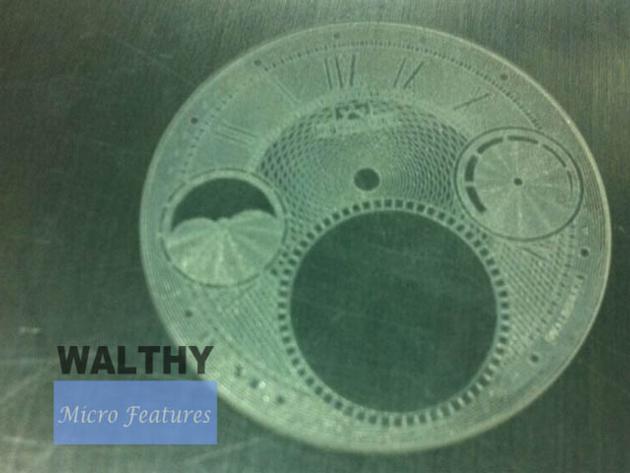

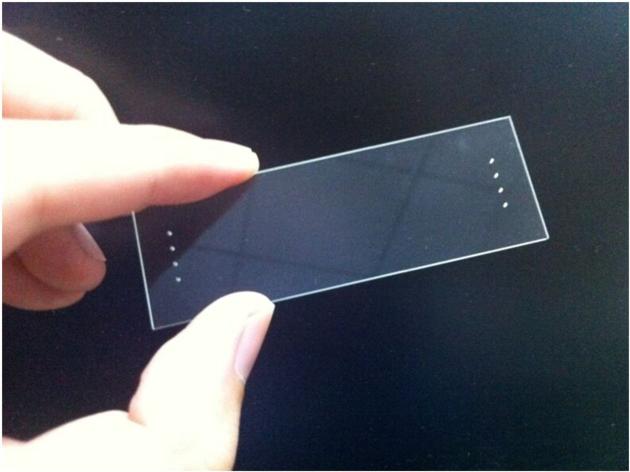

We share some jobs we have done in such materials as following:
