Glass Sealed NTC Thermistor
| Price: | US$ 0.05 |
|---|---|
| Minimum Order: | 1000 |
| Payment Terms: | T/T, L/C, D/A, D/P ,West side,Paypal Money, Gram |
| Port of Export: | Shen zhen |
Product Details
| Model No.: | ntc,ptc | Brand Name: | yaxun |
|---|
| Certification: | SGS |
|---|---|
| Specification: |
What Is Glass Sealing Thermistor

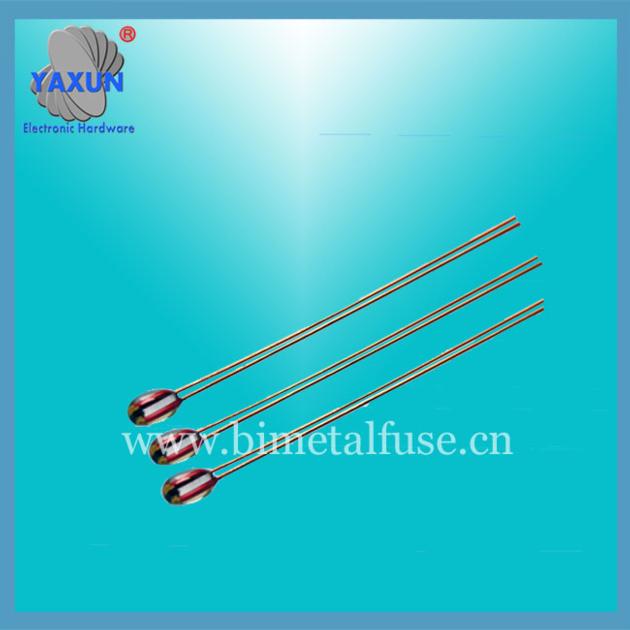

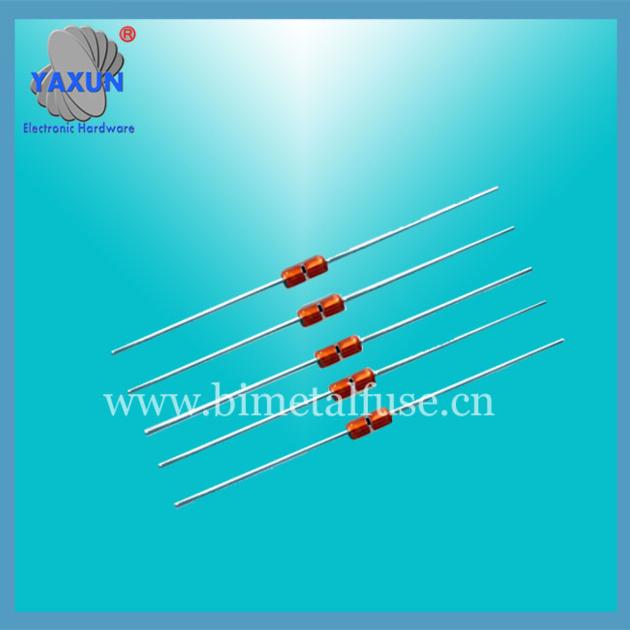

Glass thermistor is a glass-sealed thermistor. Common glass sealing thermistor are: single-ended glass thermistor, diode glass seal, SMD glass seal. Because of the glass insulation, the thermistor is not affected by the additional temperature, greatly improving the sensitivity and accuracy of the control. Glass Sealed Thermistor Characteristics High interchange accuracy Excellent solderability and thermal shock resistance Wide operating temperature range Excellent moisture resistance Low loss, small size Automated mass production to ensure that the products of high quality and high stability Composition Structure And Production Process 1> single-ended glass seal: thermistor chip and copper wire welding, use a bead-like glass case package. Single-ended glass-type products are the smallest thermistor. ● lead package allows for manual or machine is mounted; ● Packing: 1000 pcs / bag; ● Dissipation factor: ≥2mW / ℃ (in still air) ● Thermal time constant: ≤ 20S (in still air) ● Rated power: ≤ 50mW ● Note: When installing the product, two wire can not touch. |
Packaging & Delivery
| Packaging: | Carton |
|---|---|
| Delivery/Lead Time: | 7 DAY |
| Production Capacity: | 1000000 |
Product Description
Probe size selection table:
model D L1max L2 d0.05
MF51-2.80 2.800.20 4.40 305 505 0.28
MF51-1.80 1.800.20 3.80 305 505 0.23
MF51-1.50 1.50.20 2.00 305 505 0.21
MF51-1.25 1.250.20 1.80 305 505 0.21
MF51-1.20 1.200.20 1.80 305 505 0.21
MF51-0.70 0.700.20 1.20 305 505 0.15
Another :Dmax=0.90mm,Dmax=1.75mm,Dmax=1.95mm product
Model name (MF51-103-F-3470-F-A-1.2):
MF51: single-ended glass thermistor series
103: resistance 104 = 100K, 103 = 10K, 503K = 50K, 502 = 5K,
F: resistance accuracy, F = 1%, G = 2%, H = 3%, J = 5%
3470: B value 3470 = 3470K, common have 3950,3435,4200,3380,4300
F: B value accuracy, F = 1%, G = 2%, H = 3%, J = 5%
A: A = B25 / 50, B = B25 / 85, X = Specifies the two-point temperature B value
1.2: refers to the glass probe diameter,
|
