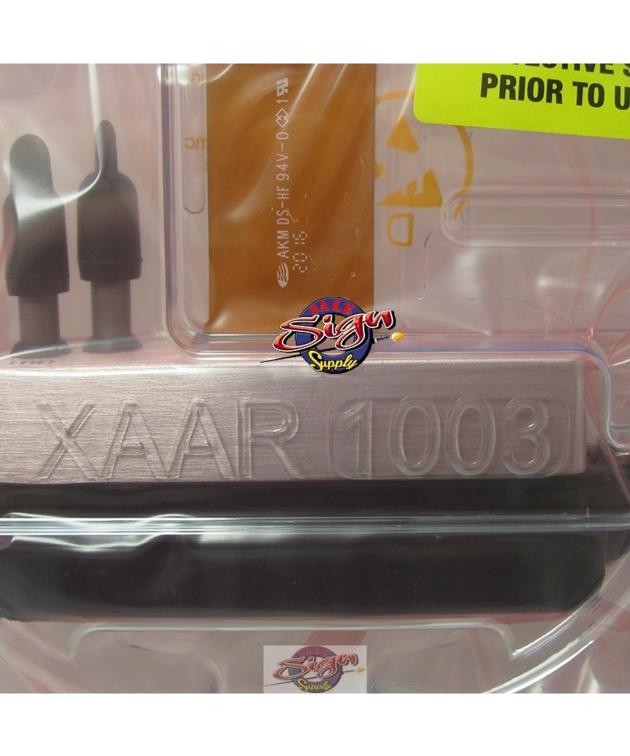

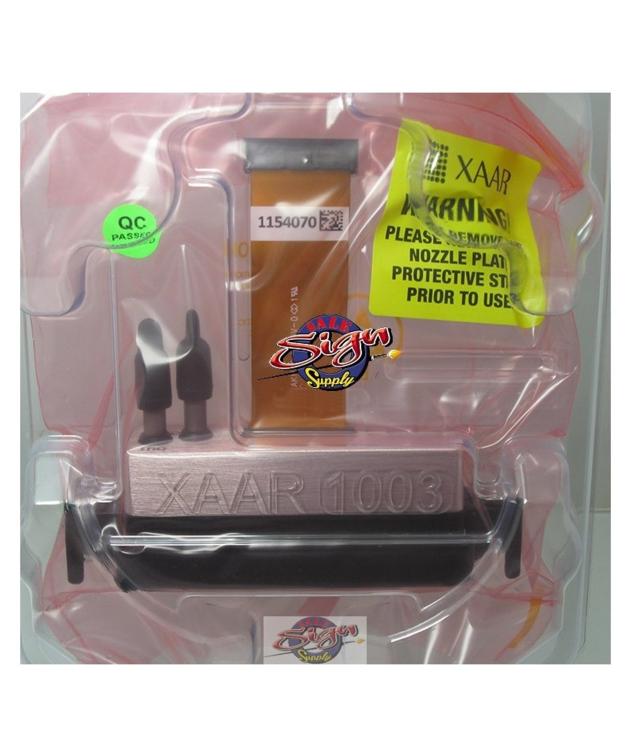

Genuine XAAR 1003 GS6U Printhead For Ceramic Printing Machine

Outstanding print quality

XAAR 1003 GS6U SALESIGNSUPPLY Exceptionally smooth print tones and solid areas which are perfect for printing amazing life-like images, pin sharp text and bold colors
1000 Optimised Geometry nozzles deliver significantly improved drop placement accuracy and consistent drop volume even with heavily pigmented and high viscosity fluids
Excellent print uniformity delivers even color density across the printhead and the entire print width
8 grey levels, chosen dynamically, at 360 dpi give an effective resolution greater than 1000 dpi, for Xaar 1003 GS6 and GS12
The Xaar 1003 GS40 for UV applications has 5 grey levels and is ideal for high build spot varnish or textured effects for improved visual appearance.

Highest productivity

Delivers maximum production uptime with minimum operator intervention which ensures high production output and a fast return on investment
TF Technology™ (ink recirculation) and the unique Hybrid Side Shooter™ architecture ensure continuous ink flow at a high rate directly past the back of the nozzle during drop ejection. This means that any air bubbles and unwanted particles present in the fluid are carried away, which radically improves reliability even in the harshest industrial environments
TF Technology™ ensures that the printhead is self-priming; therefore maintenance cycles are short, once per shift or less, and start-up is instantaneous
XaarGuard™ enables quick recovery from mechanical shock so that production interruptions are minimized.

Ultimate versatility

Easy to integrate and is backward compatible with Xaar 1002 and Xaar 1001
Using Optimised Geometry nozzles, the Xaar 1003 jets solvent, oil and UV-curable inks and other fluids with a wide viscosity range. This broadens the choice of fluid and enables the use of heavily pigmented or high viscosity inks and varnishes, including opaque whites and ceramic inks
Xaar’s new Tuned Actuator Manufacturing process ensures full scalability – long print bars with multiple printheads are simple and even quicker to set up, and printhead replacement is streamlined
Xaar’s systems components, including the XUSB, XPM, HPC3 and Xaar’s Hydra and Midas, are designed to optimize the performance of the Xaar 1003; they are also easy to configure and integrate, reducing time-to-market
Xaar works closely with the world’s leading ink manufacturers to develop approved inks with optimized waveforms for precise and reliable jetting performance
Worldwide technical support is provided to all of Xaar’s customers by our team of highly skilled Sales Engineers who through close working relationships deliver a professional and highly supportive service.

Physical attributes Xaar 1003 GS6U Xaar 1003 GS12U Xaar 1003 GS40U
Active nozzles 1000 1000 1000
Print swathe width 70.5 mm 70.5 mm 70.5 mm
Number of rows 2 2 2
Nozzle pitch (interleaved) 70.5 ³´µm 70.5 ³´µm 70.5 ³´µm
Drop velocity* 6 m/s 6 m/s 5 m/s
Nozzle density (nozzles per inch) 360 npi 360 npi 360 npi
Printhead weight (dry) 144 g 144 g 144 g
Ink type Solvent, UV, Oil Solvent, UV, Oil UV, Oil
Drop volume* (at 8 levels) 6 to 42 pL 12 to 84 pL 40 to 160 pL
Number of grey levels* 8 8 5
Typical firing frequency* 6 kHz 6 to 12 kHz 6 kHz
Dimensions (WxDxH) 125x30x60 mm 125x30x60 mm 125x30x60 m

Please Contact * for more info and discount
