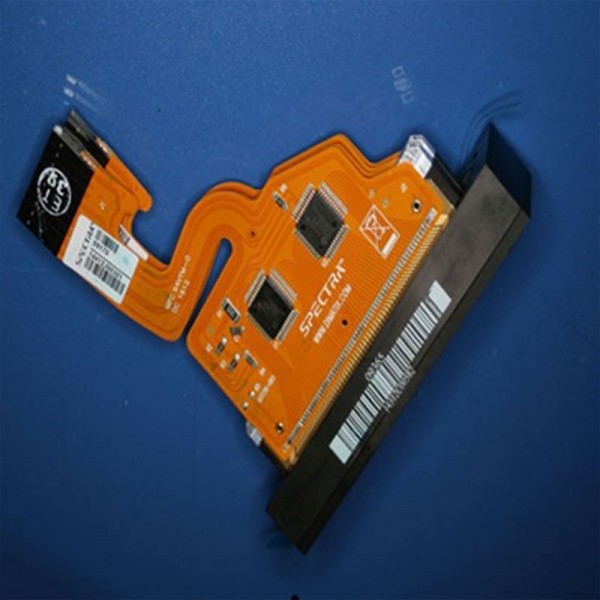

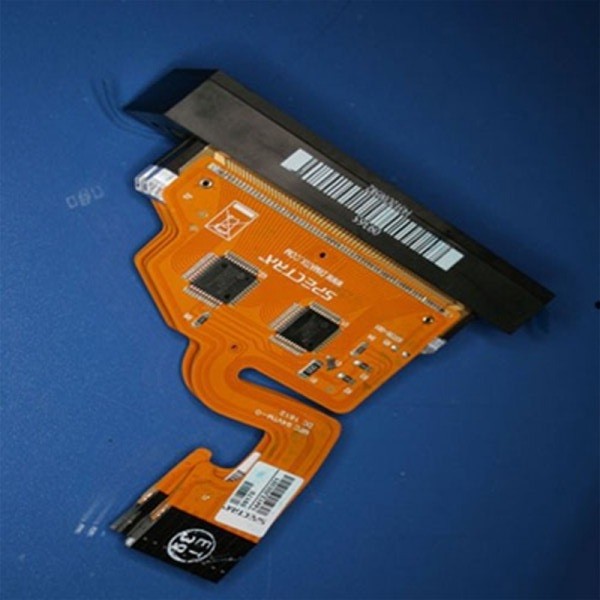

Genuine Original Spectra SM-128/50 AA Printhead
| Price: | US$ 330 / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T / Bank Wire / Paypal |
| Port of Export: |
Product Details
| Model No.: | Spectra SM-128/50 AA | Brand Name: | Spectra |
|---|
| Certification: | |
|---|---|
| Specification: |
50 picoliters calibrated drop size.
Resolutions up to 600 dpi. 128 individually addressable, inline nozzles. Lightweight and highly stackable. Orientation independent. Supports solvent and UV-curable based inks. Dual ported for ease of flushing. Optional temperature control. SE-128/50 AA Active nozzles 128 Nozzle spacing 508 μm Nozzle diameter 50 μm Drop velocity 8 m/s Printhead weight (dry) 25 g (0.88 oz) Fluid type Organic solvents, UV curables Drop volume* 50 pl Typical firing frequency 20 kHz Dimensions (WxDxH) 102x5x102mm |
Packaging & Delivery
| Packaging: | Original In Box |
|---|---|
| Delivery/Lead Time: | 6-7 days |
| Production Capacity: |
Product Description
The SM-128 AA is a compact and lightweight 50 pL jetting assembly designed specifically for ink jet applications requiring multiple printheads packed tightly together.
These modules are ideal for fast moving, high performance printer carriage designs.
Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128 jets. The nozzles are arranged in a single line, at a 0.020 inch distance between nozzles. Resolutions up to 600 dpi are possible.
Features
50 picoliters calibrated drop size.
Resolutions up to 600 dpi.
128 individually addressable, inline nozzles.
Lightweight and highly stackable.
Orientation independent.
Supports solvent and UV-curable based inks.
Dual ported for ease of flushing.
Optional temperature control.
SE-128/50 AA
Active nozzles 128
Nozzle spacing 508 μm
Nozzle diameter 50 μm
Drop velocity 8 m/s
Printhead weight (dry) 25 g (0.88 oz)
Fluid type Organic solvents, UV curables
Drop volume* 50 pl
Typical firing frequency 20 kHz
Dimensions (WxDxH) 102x5x102mm
|
