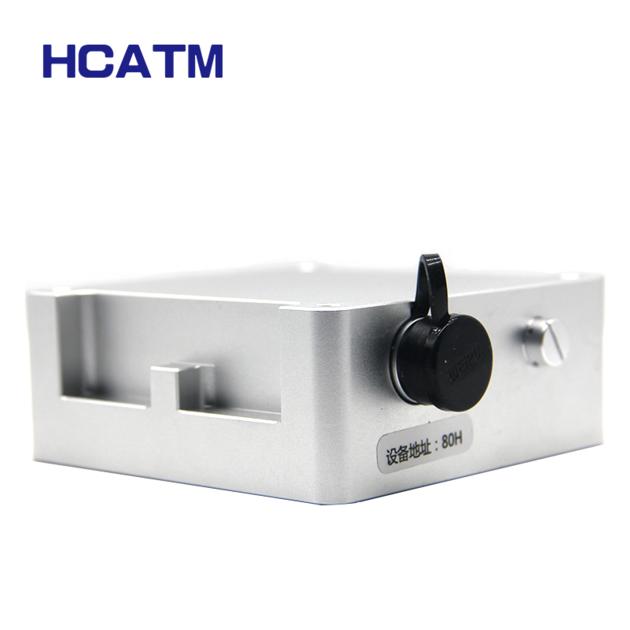

Gd-200 Non-Contact Safe Radar Flowmeter

Product Overview
GD-200 radar flowmeter uses a K-band planar microstrip array antenna with energy concentration and low power consumption; integrated vertical angle Compensation, flow rate filtering algorithm, signal strength detection, RS485 / RS232 communication, wireless communication and other functions; when the non-contact radar current measurement method is used, the equipment is not affected by sewage, not affected by sediment, and less affected by water damage. Maintenance and protection of personnel safety. The special antenna design makes the power consumption extremely low, which greatly reduces the power supply requirements. Not only can it be used to monitor flow velocity in normal times, but also it is especially suitable for undertaking urgent and dangerous observation tasks.
Main Feature
1. Non-contact, safe and low damage, less maintenance, not affected by sediment;
2. Capable of measuring underHigh flow conditions during flood season;
3. with anti-reverse and lightning protection functions;
4. Low system power consumption, general solar power can meet the needs of current measurement;
5. A variety of interface methods, both digital and analog interfaces, easy to access the system;
6. Wireless transmission function (optional), can wirelessly transmit data beyond 3.5km;
7. Wide speed measurement range, measuring distance up to 40m;
8.Various trigger modes: cycle, trigger, query, auto;
9. the installation is particularly simple and the amount of civil construction is very small;
10. Full waterproof design, suitable for outdoor use.
