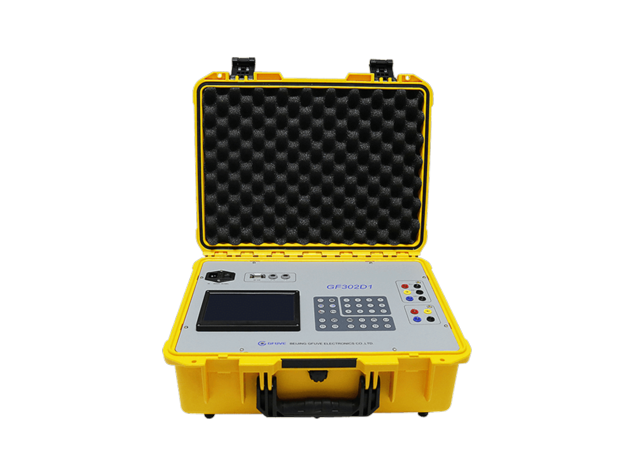

GF302D1THREE PHASE PORTABLE ENERGY METER TEST EQUIPMENT

FUNCTIONS
■ Measuring the distortion factor

■ User friendly menu guided operation

■ Energy dosing with built-in current source

■ Measuring mechanical meter and electric meter

■ Measuring frequency, phase shift and power factor

■ Automatic operation without need of an external PC

■ Easy verification and analysis of meter installations

■ Especially configured USB stick for storage of customer data

■ Testing all kinds of energy meter in 1P2W, 1P3W, 3P3W, 3P4W

■ Harmonic spectrum analysis for voltage and current up to the 63nd order

■ Power and energy measurements for active, reactive and apparent power

■ Vector diagram display and phase sequence indication on integrated colored screen

FEATURES
■ Weight light 12.8Kg

■ Accuracy class 0.05

■ 0-120A/0-500V/40-70Hz

■ 7 inch TFT touch screen

■ Test by automatic or manual

■ Start testing and creep testing

■ Recorder 500 sets energy meter data

■ Overload, short circuit, open circuit protection

■ Reference standard and current source integrated
