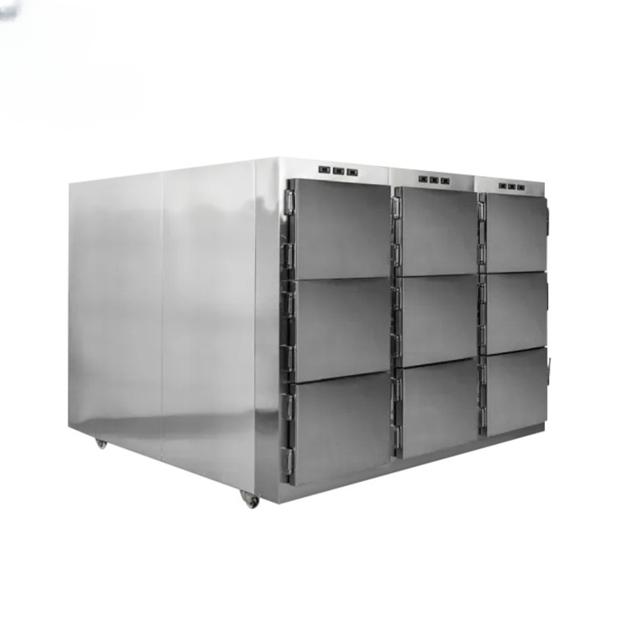

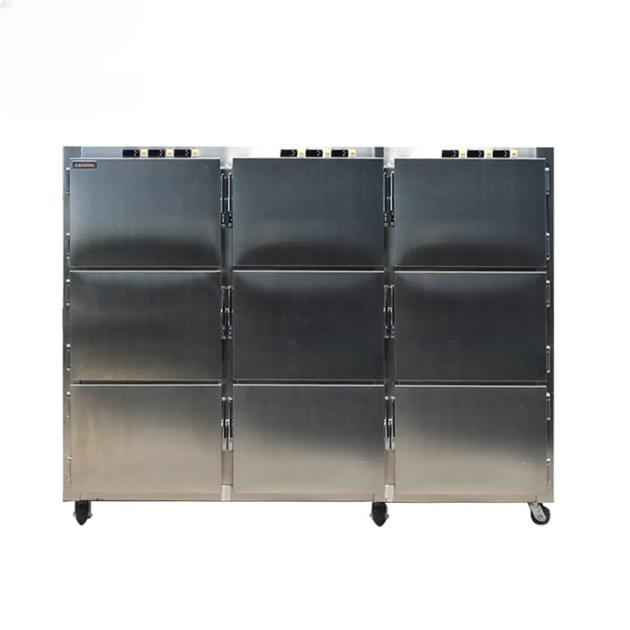

Funeral parlor ice coffin_ Hospital funeral parlors, morgues, refrigerated bodies, storage cabinets,

Accurate imported brand temperature control system



Adopting the original high-precision computer temperature control system of the world-renowned Italian brand CAREL, the temperature inside the box is accurately maintained and stable;

Three digit high brightness digital display, with adjustable temperature settings within the range of -5 ℃ to 15 ℃. The temperature display accuracy is 0.1 ℃, the resolution is 0.1 ℃, and the adjustment increment is 0.1 ℃;

The unique high-resolution temperature calibration function allows for adjustable calibration of the set point in increments of 0.1 ℃.



Safe import quality control system

Keyboard lock and password protection functions prevent arbitrary adjustment of operating parameters;

Free setting of alarm temperature range; Seven types of system fault alarms (high temperature alarm, low temperature alarm, sensor fault alarm, door opening alarm, power outage alarm, backup battery low battery alarm, low voltage alarm), with fault point code display (some models have all seven types of alarms);

Triple alarm method (audible buzzing alarm, flashing light alarm, remote signal alarm)

Power-on self-test delay start, shutdown interval protection function, ensuring reliable operation;

Quick freezing function;

It has the function of recording the highest and lowest temperature inside the box, without the need for recording paper;

There are two types of safety automatic operation programs: specially designed sensor failures and digital disturbances.

Running parameter display function, real-time monitoring, ensuring equipment safety and stability.

Unique power outage memory function;

Equipped with remote alarm interface;

The unique operating parameters of the temperature control system distinguish the operator menu from the manager menu, ensuring the responsibility of managing operating parameters and the reliability of item storage.

Equipped with a built-in lithium-ion battery, it can continuously display the temperature inside the box and provide sound and light alarms for 72 hours after power failure;



Imported refrigeration system

Adopting the original German DANFOSS high-efficiency compressor;

Adopting the original imported "Bi Sonic" dual fan, with strong resistance to low temperature and humidity;

German "EBM" cooling fan;

Imported Panasonic evaporator from Japan (refrigeration pipeline inside the box);

Fluorine free and environmentally friendly refrigeration system, manufacturing green products, and creating a green world.

user-friendly design

The inner liner, outer skin, drawers, and track lights of the box are all made of high-quality stainless steel materials. Strong corrosion resistance and high-end appearance.

The insulation layer adopts imported polyurethane foam material, which has strong insulation performance and effectively prevents cold loss.

High quality door seal with strong anti-aging ability is selected to enhance the service life of the door seal.

According to the number of corpses stored in the refrigerated box, multiple sets of imported low-temperature refrigeration systems with independent control are equipped accordingly. Independent power plug. The temperature is controlled by respective digital temperature control computers. The refrigeration and freezing temperature can be set according to user needs. And the temperature requirements of each box do not affect each other.

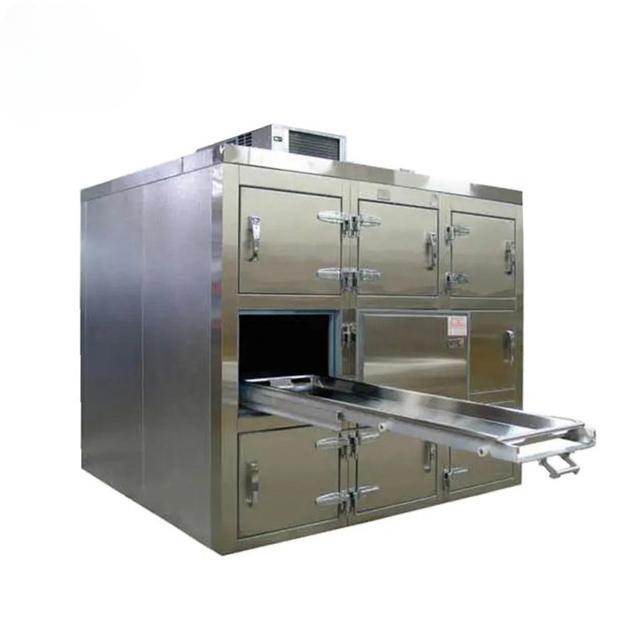

The bottom of the corpse tray is equipped with 22 rows of large nylon rolling wheels for easy entry and exit.

The large screen digital display is easy to observe.

The safety door lock design prevents arbitrary opening.

Wide voltage band, suitable for 187-242V voltage use.

24-hour tracking record printing system [optional]

Import temperature recording and printing system. 4 precision temperature sensors inside the box (2 for some models); There are two temperature displays outside the box, with temperature displayed at the top and bottom points. Display accuracy and resolution of 0.1 ℃, jointly monitoring and observing the temperature inside the box. Display various running states.

Unique power-off memory function, with a large amount of information and permanent storage of temperature data

Temperature printing adopts password protection function to prevent arbitrary printing from obtaining temperature change information

5-fold alarm system. 12V and 220V alarms work together to ensure super complementary monitoring performance.

Remote signal alarm system (optional)

Single/dual/multi-channel temperature change data processing software

Exchange data with computers through RS-232 interface for data output, draw temperature curve analysis charts for single, double, and multiple refrigerated containers, and display data tables. Data and images can be saved, queried, and printed [optional]

Optional items

Optional EPS emergency power supply;

Optional DC24V AC220V inverter, DC 24V power supply can support normal use of the refrigerator.

Wireless: No need for wall piercing or rewiring.
