Fully welded ball valve,weld ball valve,Fully weld ball valve
| Price: | US$ 500 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT，LC |
| Port of Export: | Shanghai |
Product Details
| Model No.: | FRQ361F | Brand Name: | FREE-VALVE |
|---|
| Certification: | |
|---|---|
| Specification: |
Type : FRQ61FC,FRQ361FC Size Range:NPS2~NPS48 , DN50 ~DN1200 Pressure Range :Class150~Class600,1.6MPa~4.0MPa Material of valve body: A105,F304,F316 Connect Method :welding Work Temperature:-29℃≤t≤180 ℃ Design standard:ASME B16.34,API6D Test and Inspect:API598 Face to Face:ASME B16.10 Medium :Water ,oil ,gas ,acid ,alkaili etc Driving method : electric ,handle,worm gear etc . |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 30 DAYS |
| Production Capacity: | 150set/month |
Product Description

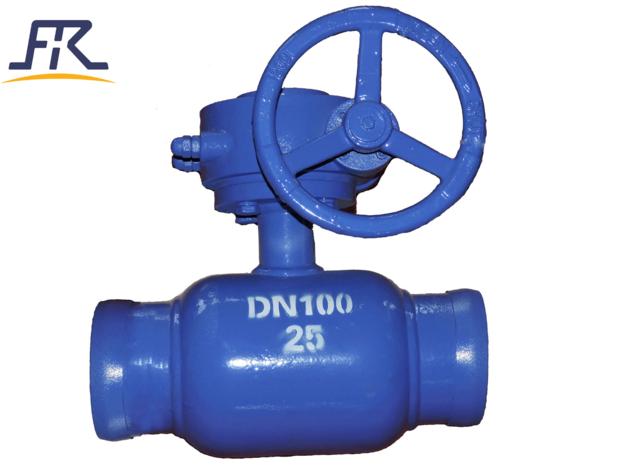

FREE-Valve’s Fully Welded Ball Valve are widely used in almost all the industry .Compared to the general casting ball valve,fully welded ball valve have a highly performance and longer life time . It was widely used in city gas ,city heat supply ,oil chemical industry,ship building ,steel ,power plant etc . Fully welded ball valve can be reliable run in the long time ,easy to be installed and less maintenance work . Benefits
1.Valve body material is the same as the pipe material , so they will not occur transformation due to unbalanced stress .
2.Face to face dimensions can be made according to customer requirement.
3.Material of valve seat is made up of PTFE+20%C sealing ring and metal sealing ,which can adapt to the change of pressure and temperature,So the leakage will not occur during the pressure and temperature Range.
4.The ball body has a highly machining precision due to the tracking of computer detector,so the ball valve was shut off/shut on conveniently.
|
