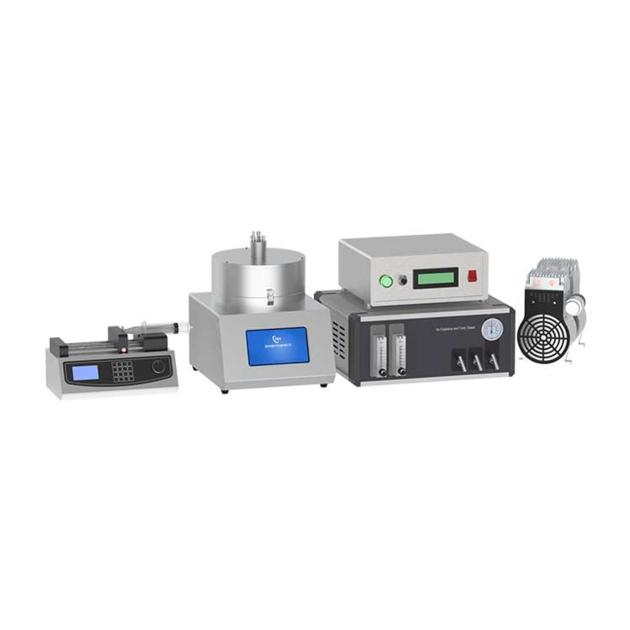

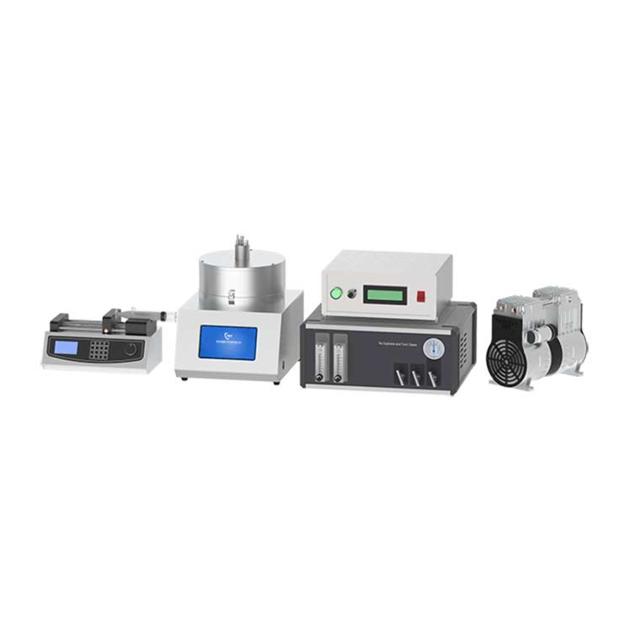

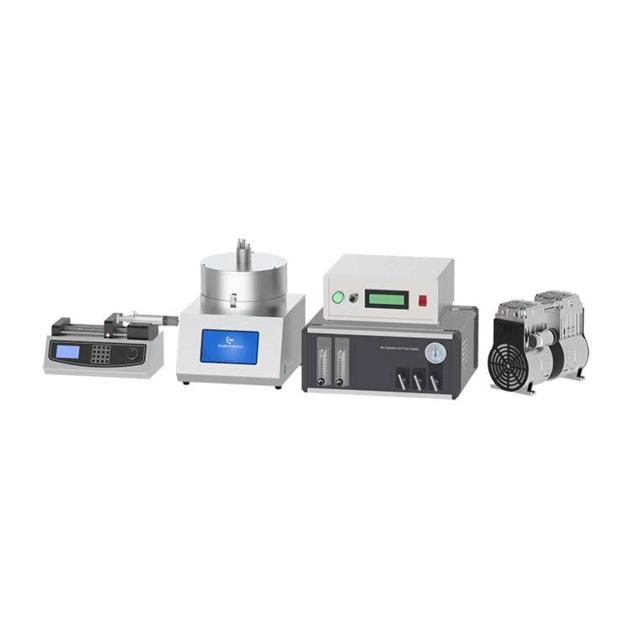

Fully automatic ultrasonic assisted atmosphere heating spin coater
| Price: | US$ 4000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T D/P Western Union Paypal Money Gram Others |
| Port of Export: | Zhengzhou, Shanghai, Qingdao, etc. |
Product Details
| Model No.: | CY-SPC-HUA6 | Brand Name: | CYKY |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Name ultrasonic assisted atmosphere spin coater Substrate size 6inches Rotation speed 100~10000rpm adjustable Rotational acceleration 100~5000rpm/s adjustable Longest spinning time(a single time) 3000s chamber size Φ200mm* 90mm Voltage 220V 50Hz Power 400W Heating Temp 0-100℃ Warranty 1 year, life-long technical support, excluding vulnerable parts Ultrasonic system: Atomizing head Material Titanium alloy Frequency 40kHz Power 130W Flow 0.55mL/s Particle diameter 25um Atomizing head type Cone type Atomizing head weight 0.3kg Ultrasonic power supply Size:315*312*135mm,weight:5kg Syringe pump Flow range 0.001uL/min-43.349mL/min Power down memory function Save the setting parameters, no need to set them after power on again Injector 10uL-1000uL Syringe 1mL-60mL Linear speed range 5um/min-65um/min Linear speed adjustment resolution 5um/min Maximum stroke 140mm Travel resolution 0.156um Rated linear thrust ＞90N Flowmeter Control gas type 2 Gas flow rate 16-160mL/min |
Packaging & Delivery
| Packaging: | Standard export wooden box packaging |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 200 Sets/Month |
Product Description
Product Brief CY-SPC-HUA6 is a small and flexible spin coater, which can spray the glue on the substrate through the ultrasonic nozzle, and then evenly apply the glue on the substrate through high-speed rotation. It is also possible to directly perform the spin coating operation alone.

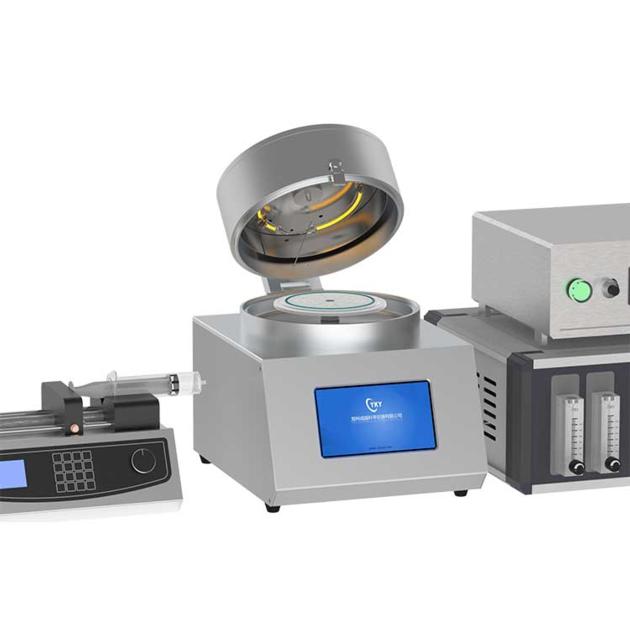

The chamber is equipped with heating elements, which can be baked after spinning coating
The product has a gas path controlled by a 2-way float flowmeter, which can pass inert gas into the chamber to protect the glue liquid from the gas in the air when spinning coating
This machine is suitable for surface coating of semiconductor wafer, slide, wafer, substrate, ITO conductive glass and other processes and plate making.
The maximum size of the crystallizable wafer is 6 inches, the rotational speed can reach 10000rpm, and the acceleration can reach 5000rpm;
It has the advantages of stable speed, quick start, convenient operation, etc., and can ensure the consistency and uniformity of the thickness of spinning coating.
product features
1. Adopt DC brushless motor, single chip microcomputer control
2. High-definition touch screen control
3. Single step and multi-step spinning coating operation can be carried out, five programs can be stored, and each program can be set with five steps of operation
4. Anti-blocking glue design
5. Aluminum alloy chamber, durable
6. It has various auxiliary functions such as ultrasonic, atmosphere, heating and so on, which can be used for spinning coating research
|
