Fully automatic rain plug machine - twisted wire single threading
| Price: | US$ 10200 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | shenzhen |
Product Details
| Model No.: | HL-DS02 | Brand Name: | Hilong |
|---|
| Certification: | |
|---|---|
| Specification: |

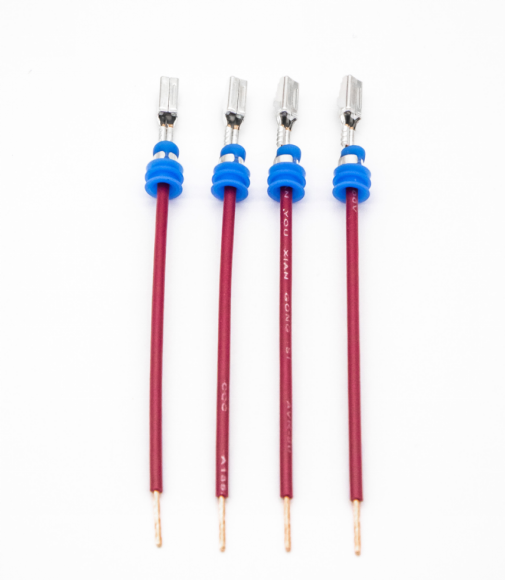

Product Features Automatic wire cutting, strippinging, and crimping terminals through one end of the rain plug The other end is fully strippinged, partially strippinged, and twisted |
Packaging & Delivery
| Packaging: | CASE |
|---|---|
| Delivery/Lead Time: | 7 |
| Production Capacity: |
Product Description
strippinging range:0-25MM Twisted wire length:2-10MM
Cutting tolerance:When the wire length is ≥ 1000MM, ¯ 0.4%. The longer/thicker the line, the greater the tolerance
Processing length:60-9900MM
Crimping force:Standard 2T30 stroke (optional 3T)/(optional 40 stroke)
Adapt to wires:AWG16-30 # 1007 single electronic wire
Suitable rain plugs:Expandable waterproof plug with a diameter less than 17mm
Adapted mold:OTP mold for rain plugs (optional European style mold)
OTP mold without rain plugs (optional European style mold, flag shaped mold)
Electrical support:AC 220V 2.0Kw Air: 0.4-0.6MPa
Equipment size:L 1200 * W 800 * H 1600MM/360Kg
Pneumatic components:Taiwan Yadeke Pneumatic
Straight slide rail:Taiwan Shangyin Rail/Taiwan Yadeke Rail
Crimping motor:0.75KW three-phase asynchronous motor, variable frequency control (optional 1.5KW/2.2KW)1 set of domestically produced wire feeding servo, with Yu Xuquan stepper
drive control:Jiayuan Intelligence
Motor frequency conversion:Jiayuan Intelligence
Circuit control:Chint Electric Appliances
program control:ARM eight axis control card
Optional accessories:Automatic pay-off reel, conveyor belt, pressure monitoring, plug detection
First wear and then stripping the module
Detection function:Terminal detection includes waterproof plug detection, air pressure detection, wire detection, etc
Processing capacity:Within 300MM, 2000-2400PCS/H
Action motor:
|
