Fully automatic rain plug machine - single pressure and single threading
| Price: | US$ 9600 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | shenzhen |
Product Details
| Model No.: | HL-DS01 | Brand Name: | Hilong |
|---|
| Certification: | |
|---|---|
| Specification: |

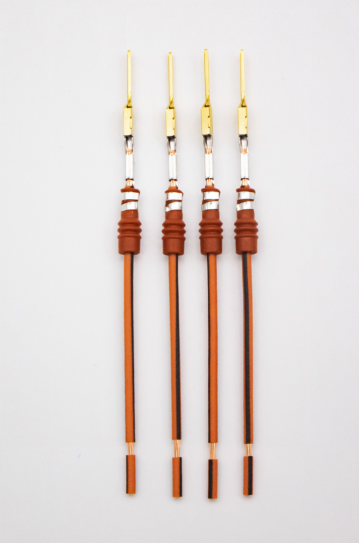

Product Features Automatic wire cutting, strippinging, and crimping terminals through one end of the rain plug The other end is fully or partially stripping |
Packaging & Delivery
| Packaging: | CASE |
|---|---|
| Delivery/Lead Time: | 7 |
| Production Capacity: |
Product Description
strippinging range：0-25MM Cutting tolerance：When the wire length is ≥ 1000MM, ¯ 0.4%. The longer/thicker the line, the greater the tolerance
Processing length：60-9900MM
Crimping force：Standard 2T30 stroke (optional 3T)/(optional 40 stroke)
Adapt to wires：AWG16-30 # 1007 single electronic wire
Suitable rain plugs：Expandable waterproof plug with a diameter less than 17mm
Adapted mold：OTP mold for rain plugs (optional European style mold)
OTP mold without rain plugs (optional European style mold, flag shaped mold)
Electrical support：
AC 220V 2.0Kw Air: 0.4-0.6MPa
Equipment size：L 1200 * W 800 * H 1600MM/330Kg
Pneumatic components：Taiwan Yadeke Pneumatic
Straight slide rail：Taiwan Shangyin Rail/Taiwan Yadeke Rail
Crimping motor：0.75KW three-phase asynchronous motor, variable frequency control (optional 1.5KW/2.2KW)
Action motor：1 set of domestically produced wire feeding servo, with Yu Xuquan stepper
Touch control：7-inch KINCO color LCD touchable
drive control：Jiayuan Intelligence
Motor frequency conversion：Jiayuan Intelligence
Circuit control：Chint Electric Appliances
program control：ARM eight axis control card
Optional accessories：Automatic pay-off reel, conveyor belt, pressure monitoring, plug detection
First wear and then stripping the module
Detection function:Terminal detection includes waterproof plug detection, air pressure detection, wire detection, etc
Processing capacity:Within 300MM, 2700-2800PCS/H
|
