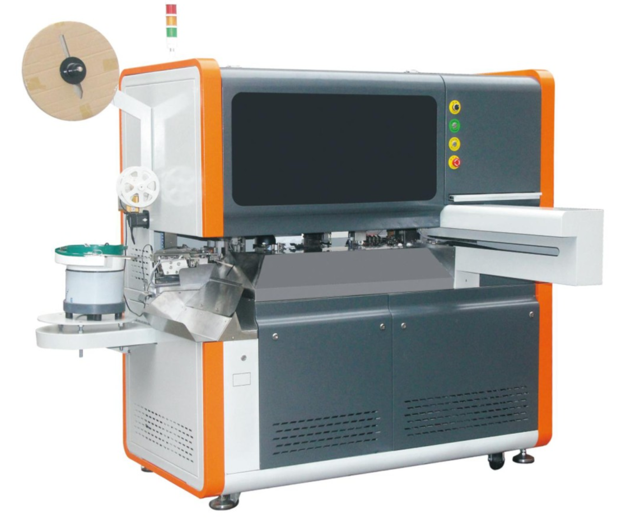

Fully automatic high speed machine for inserting rubber shells(Standard type)
| Price: | US$ 41095 / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | 50%deposit,50%before delivery |
| Port of Export: | Yantian |
Product Details
| Model No.: | TYDC-H-C601 single head machine(high speed machine) | Brand Name: | TYDC |
|---|
| Certification: | Standard |
|---|---|
| Specification: |
<table border="1" cellpadding="5" cellspacing="0">
<tr> <th>Feature</th> <th>Specifications</th> </tr> <tr> <td>Model</td> <td>TYDC-H-C601 single head machine(high speed machine)</td> </tr> <tr> <td>Power Supply</td> <td>AC220V</td> </tr> <tr> <td>Maximum Power</td> <td>4.8KW</td> </tr> <tr> <td>Air Pressure</td> <td>0.4-0.6MPA</td> </tr> <tr> <td>Machine weight</td> <td>750kg</td> </tr> <tr> <td>Dimensions</td> <td>2200L*1650W*1850H</td> </tr> <tr> <td>wire processing range</td> <td>AWG18-AWG24/AWG22-AWG30</td> </tr> <tr> <td>wire processing length</td> <td>980MM>L>40MM please contact the on duty service for special requirements</td> </tr> <tr> <td>cutting accuracy</td> <td>0.5MM+cutting*0.2%</td> </tr> <tr> <td>peel length</td> <td>A end 0.1-10.0mm,B end 0.1-6.0mm</td> </tr> <tr> <td>Twisted wire length</td> <td>3MM-10MM</td> </tr> <tr> <td>Tin dipping length</td> <td>MAX10MM</td> </tr> <tr> <td>Compression ability</td> <td>2.T</td> </tr> <tr> <td>Maximum PIN insertion</td> <td>20 holes per row maximum 3 rows</td> </tr> <tr> <td>Maximum color count</td> <td>8 colors (more colors require customization)</td> </tr> <tr> <td>Shell size</td> <td>MAX40*25*20 MIN5*6*3 spacing 1.0-4.2MM</td> </tr> <tr> <td>Maximum operating speed</td> <td>1.5 seconds per unit</td> </tr> <tr> <td> Standard components</td> <td> 8-axis scroll universal wire feeder</td> </tr> <tr> <td> Standard configuration</td> <td>Single channel terminal pressure</td> </tr> <tr> <td>Standard configuration</td> <td>Four lens CCD visual inspection</td> </tr> <tr> <td> Warranty</td> <td>1 year parts & service</td> </tr> </table> |
Packaging & Delivery
| Packaging: | Wooden box |
|---|---|
| Delivery/Lead Time: | 60-90 days |
| Production Capacity: | 1.44 million holes per month |
Product Description
Equipment function:
This device can achieve automatic cutting, peeling, and tinning of one of the wire as well as automatic cutting, peeling and threading of the other end of the wire.<Note: Personalized wire harness processing solutions can be provided according to the process characteristics of your company's products. Non standard customized equipment>
Equipment advantages:
1. The vibrating disc automatically feeds bulk rubber shells.
2. Simple design, easy operation and convenient debugging.
3. Changing product specification is simple and takes short time.
4. Come with a universal wire feeder for the roll axis.
5. Each products can freely set the wire cutting length and stripping length.
6. Automatic selection of equipment and isolation of defective products in the manufacturing process.
7. Perform a 100% pull set on the terminal insertion.
Device configuration:
Control System: Huichuan
Servo Motor: Huichuan
Cylinder: Taiwan Yadeke
Fiber Optic: Panasonic of Japan
Sensor: Taiwan Yadeke
Transmission Module: Xiaoxing( equipped with Taiwan Shangyin guide rail and TBI screw)
|
