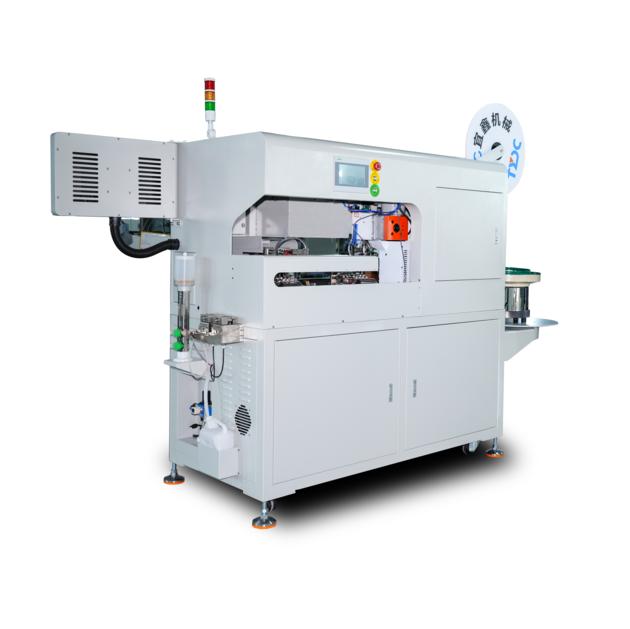

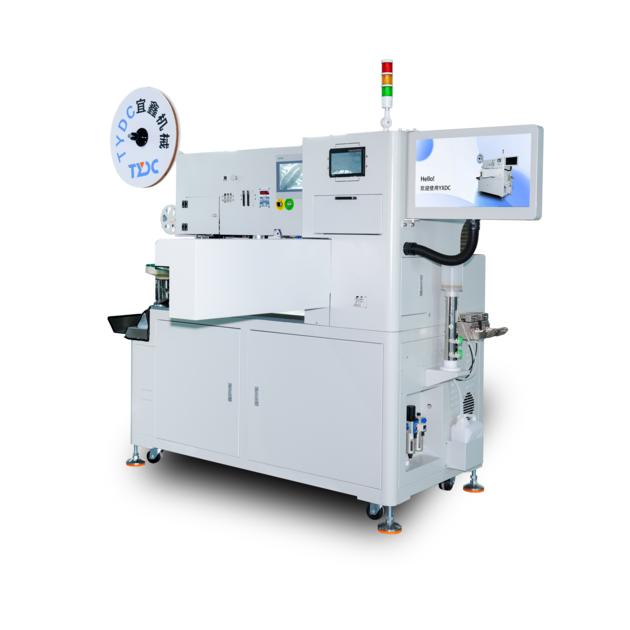

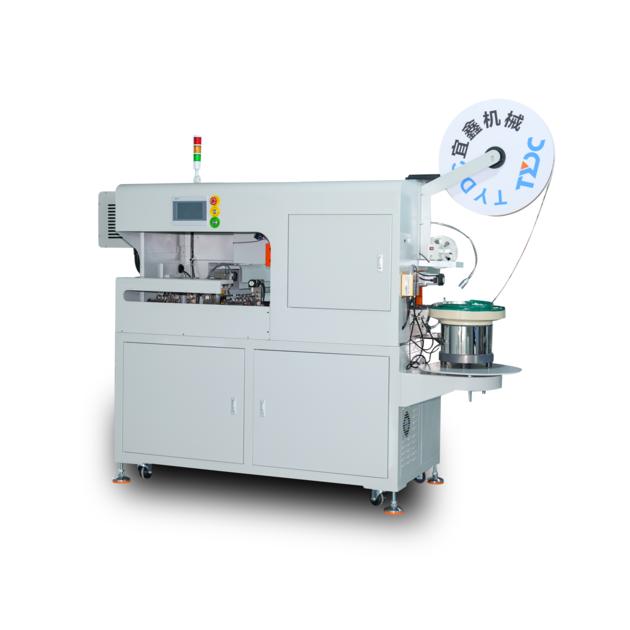

Fully automatic glue insertion machine
| Price: | US$ 34246 / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | 50%deposit,50%before delivery |
| Port of Export: | Yantian |
Product Details
| Model No.: | TYDC-J-C605 | Brand Name: | TYDC |
|---|
| Certification: | Standard |
|---|---|
| Specification: |
<table border="1" cellpadding="5" cellspacing="0">
<tr> <th>Feature</th> <th>Specifications</th> </tr> <tr> <td>Model</td> <td>TYDC-J-C605</td> </tr> <tr> <td>Power Supply</td> <td>AC220V</td> </tr> <tr> <td>Maximum Power</td> <td>4.8KW</td> </tr> <tr> <td>Air Pressure</td> <td>0.4-0.6MPA</td> </tr> <tr> <td>Machine weight</td> <td>750kg</td> </tr> <tr> <td>Dimensions</td> <td>1950L*1600W*1800H</td> </tr> <tr> <td>wire processing range</td> <td>AWG18-AWG24/AWG22-AWG30</td> </tr> <tr> <td>wire processing length</td> <td>980MM>L>40MM please contact the on duty service for special requirements</td> </tr> <tr> <td>cutting accuracy</td> <td>0.5MM+cutting*0.2%</td> </tr> <tr> <td>peel length</td> <td>A end 0.1-10.0mm,B end 0.1-6.0mm</td> </tr> <tr> <td>Twisted wire length</td> <td>3MM-10MM</td> </tr> <tr> <td>Tin dipping length</td> <td>MAX10MM</td> </tr> <tr> <td>Compression ability</td> <td>2.T</td> </tr> <tr> <td>Maximum PIN insertion</td> <td>20 holes per row maximum 3 rows</td> </tr> <tr> <td>Maximum color count</td> <td>8 colors (more colors require customization)</td> </tr> <tr> <td>Shell size</td> <td>MAX40*25*20 MIN5*6*3 spacing 1.0-4.2MM</td> </tr> <tr> <td>Maximum operating speed</td> <td>1.5 seconds per unit</td> </tr> <tr> <td> Standard components</td> <td> 8-axis scroll universal wire feeder</td> </tr> <tr> <td> Standard configuration</td> <td>Single channel terminal pressure monitoring</td> </tr> <tr> <td>Standard configuration</td> <td>Single lens CCD visual inspection</td> </tr> <tr> <td> Warranty</td> <td>1 year parts & service</td> </tr> </table> |
Packaging & Delivery
| Packaging: | Wooden box |
|---|---|
| Delivery/Lead Time: | 60-90 days |
| Production Capacity: | 2000-2200 per hour |
Product Description
Equipment function:
This device can achieve automatic cutting, peeling and tinning of one end of the wire. The other end has automatic cutting, peeling, pressing and rubber shell insertion functions. < Note: We can provide personalized wire harness processing and non-standard customized equipment based on the process characteristics of your company's products>
Equipment advantages:
1. The vibrating disc automatically feeds bulk rubber shells.
2. Simple design, easy operation and convenient debugging.
3. Changing product specifications is simple and takes short time.
4. Comes with a universal wire feeder for the roll axis.
5. Each products can freely set the wire cutting length and stripping length.
6. Automatic selection of equipment and isolation of defective products in the manufacturing process.
7. Perform a 100% pull test on the terminal insertion.
Device configuration:
Control System: Hechuan
Servo Motor : Hechuan
Cylinder: Taiwan Yadeke
Fiber optic: Panasonic of Japan
Sensor: Taiwan Yadeke
Transmission Module: Xiaoxiang( required with Taiwan Shangyin guide rail and TBI screw)
|
