Fully automatic glue insertion machine(double doubles and double piercing type)
| Price: | US$ 68493 / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | 50%deposit,50%before delivery |
| Port of Export: | Yantian |
Product Details
| Model No.: | TYDC-F-B602 dual head machine(dual head machine with four lenses) | Brand Name: | TYDC |
|---|
| Certification: | Standard |
|---|---|
| Specification: |
<table border="1" cellpadding="5" cellspacing="0">
<tr> <th>Feature</th> <th>Specification</th> </tr> <tr> <td>Model</td> <td>TYDC-F-B602 dual head machine(dual head machine with four lenses)</td> </tr> <tr> <td>Power Supply</td> <td>AC220V</td> </tr> <tr> <td>Maximum Power</td> <td>4.8KW</td> </tr> <tr> <td>Air Pressure</td> <td>0.4-0.6MPA</td> </tr> <tr> <td>Machine weight</td> <td>1200kg</td> </tr> <tr> <td>Dimensions</td> <td>2100L*1600W*1900H</td> </tr> <tr> <td>wire processing range</td> <td>AWG18-AWG22/AWG22-AWG28</td> </tr> <tr> <td>wire processing length</td> <td>The longest middle wire is 900mm and the shortest is 90mm</td> </tr> <tr> <td>cutting accuracy</td> <td>0.5MM+cutting*0.2%</td> </tr> <tr> <td>peel length</td> <td>A end MAX6.0MM,B end MAX6.0MM</td> </tr> <tr> <td>Compression capacity</td> <td>2.0T can be customized according to customer requirements</td> </tr> <tr> <td>Maximum PIN insertion</td> <td>20 holes per row maximum 3 rows</td> </tr> <tr> <td>Maximum PIN insertion color</td> <td>8 colors (more colors require customization)</td> </tr> <tr> <td>Shell size</td> <td>MAX40*25*20 MIN5*6*3 spacing 1.0-4.2MM</td> </tr> <tr> <td>Maximum operating speed</td> <td>1.5 seconds/piece for double end shell penetration</td> </tr> <tr> <td> Standard components</td> <td> 8-axis scroll universal wire feeder</td> </tr> <tr> <td> Standard configuration</td> <td>Dual channel terminal pressure</td> </tr> <tr> <td>Standard configuration</td> <td>Four lens CCD visual inspection lens</td> </tr> <tr> <td> Warranty</td> <td>1 year parts & service</td> </tr> </table> |
Packaging & Delivery
| Packaging: | Wooden box |
|---|---|
| Delivery/Lead Time: | 60-90 days |
| Production Capacity: | 60 units per month |
Product Description
Equipment Function:

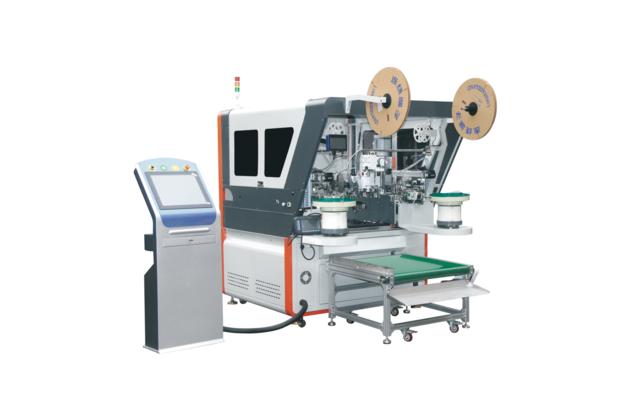

This device is a fully automatic double end rubber shell insertion machine that can automatically cut, peel, press and thread one of the wire into the rubber shell and peel, press and thread the other end of the wire into the rubber shell.<Note: We can provide personalized wire harness processing solutions and non-standard customized equipment based on the process characteristics of your company's products>
Equipment advantages:
1. With 6 workstation on both sides any workstation can be independently closed, effectively improving production efficiency.
2. Independent servo dual blade holder, convenient and fast adjustment of peeling depth.
3. The crimping machine adopts variable frequency motor with an adjustment accuracy of 0.02mm.
4. Multi functional and free to match. The position of the shell at both ends can be freely selected. Same product length it can achieve a 5% drop.
5. Integrated operation( crimping management, vision, parameters) all-in-one machine.
6. Comes with a handheld teaching pendant for easy debugging.
7. Insertion adopts a 3-axis split type operation, effectively improving insertion efficiency, Guided insertion method, effectively improving insertion precision and protection terminal functional area.
8.Flip type defective product isolation method,100% isolation of production defects.
9.Separate independent adjustment at both ends for easy equipment debugging.
|
