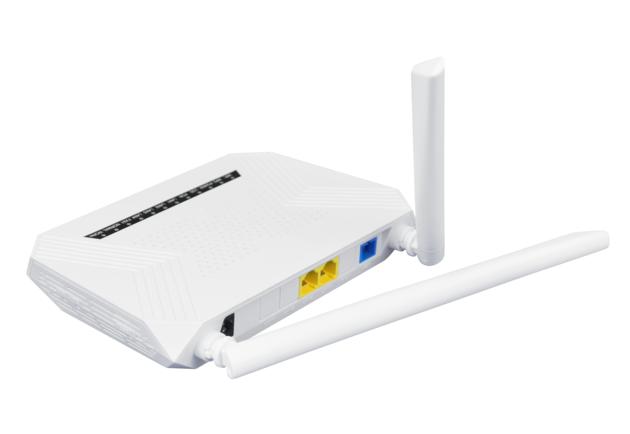

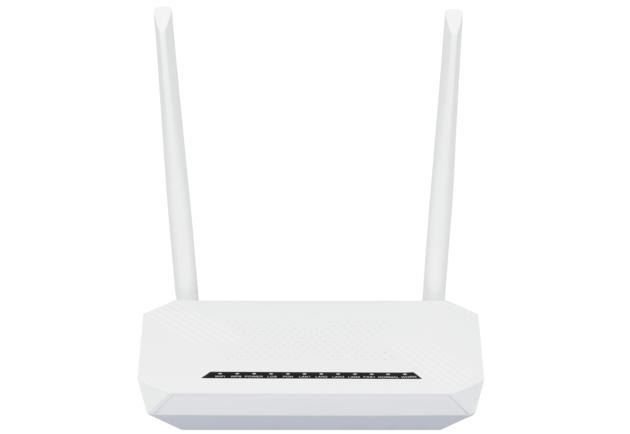

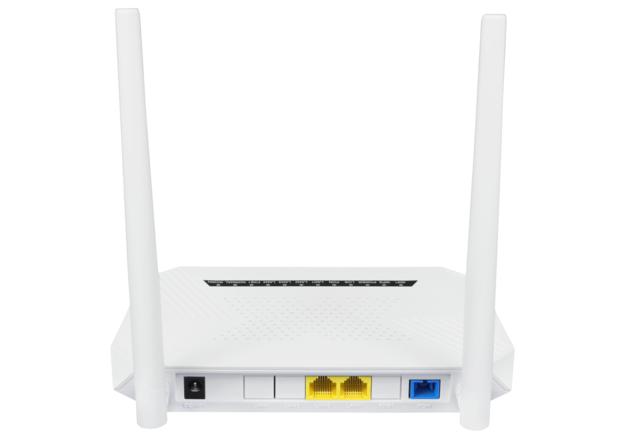

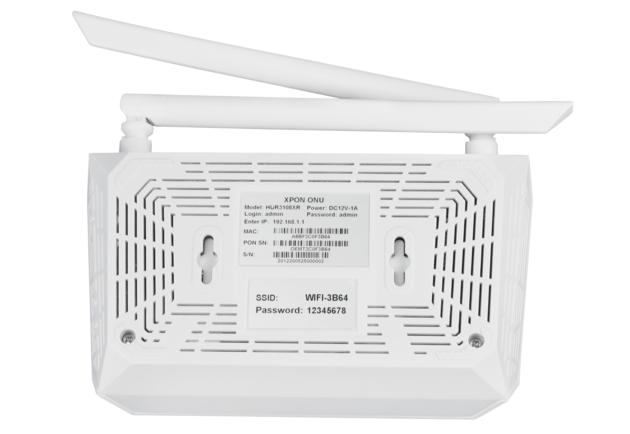

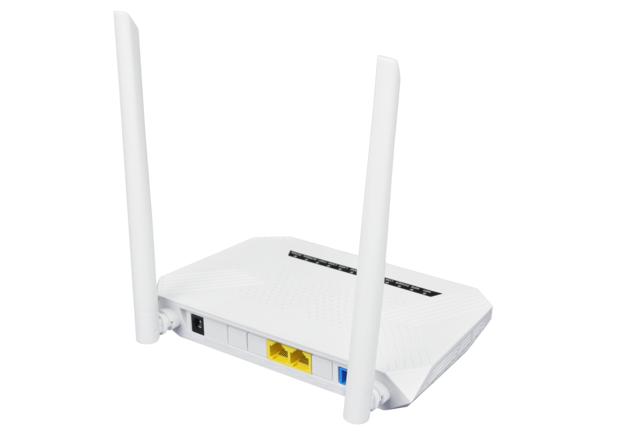

Ftth Modem Fiber Optic Ont Router Pon Onu 1GE 1FE WIFI XPON ONU
| Price: | US$ 33$ / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | HUR3108XR | Brand Name: | HDV-Fiber |
|---|
| Certification: | CE RoHS ISO9001 |
|---|---|
| Specification: |
PON Interface
1 GPON BOB (Class B+/Class C+) Receiving sensitivity: ≤-27dBm/≤-29dBm Transmitting optical power: +0.5~+5dBm/+2~+7dBm Transmission distance: 20KM Wavelength TX: 1310nm, RX: 1490nm Optical Interface SC/UPC Connector Design Scheme RTL9603C+RTL8192FR BOB(i7525BN) Chip Spec CPU 950MHz,DDR2 128MB Flash SPI Nor Flash 16MB LAN Interface 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector Wireless Compliant with IEEE802.11b/g/n, Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps, 2T2R,2 external antenna 5dBi, Support: Multiple SSID Channel: Auto Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM LED 7 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2 Push-Button 3,For Function of Reset, WLAN, WPS Operating Condition Temperature: 0℃~+50℃ Humidity: 10%~90%(non-condensing) Storing Condition Temperature: -30℃~+60℃ Humidity: 10%~90%(non-condensing) Power Supply DC 12V/1A Power Consumption ≤6W Dimension 180mm×107mm×28mm(L×W×H) Net Weight 0.2Kg |
Packaging & Delivery
| Packaging: | Onu, Power supply |
|---|---|
| Delivery/Lead Time: | 1 |
| Production Capacity: | 100000 |
Product Description
Short Description:
Model Number: HUR3108XR Application: FTTH FTTB FTTX Network PON Interface: 1 GPON BOB (Class B+/Class C+) Transmission distance: 20KM Wavelength: TX: 1310nm, RX: 1490nm Optical Interface: SC/UPC Connector LAN Interface: 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Power Supply: DC 12V/1A Power Consumption: ≤6W Certification: CE RoHS ISO9001 Warranty: 1 Year
1. Overview
* HUR3108XRis designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR3108XRis based on mature and stable, cost-effective XPON technology.
* HUR3108XRadopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4and IPv6 Dual mode
* Support 4G WIFIand 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mappingand Loop-Detect
* Support Firewall function andACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
|
