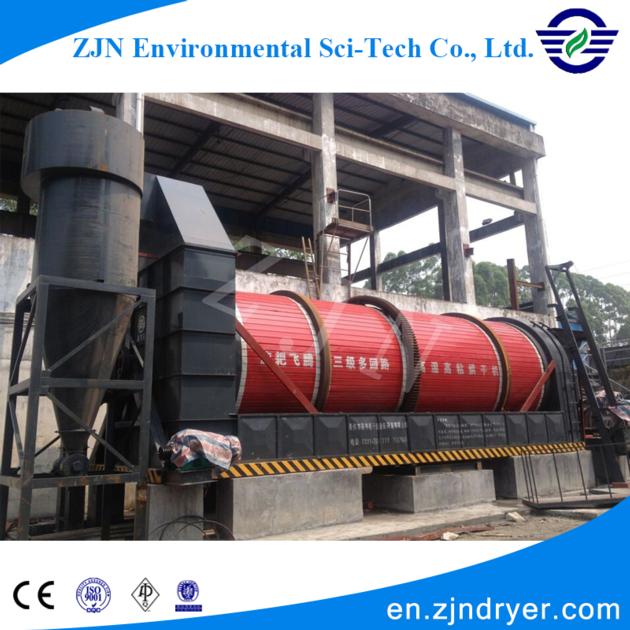

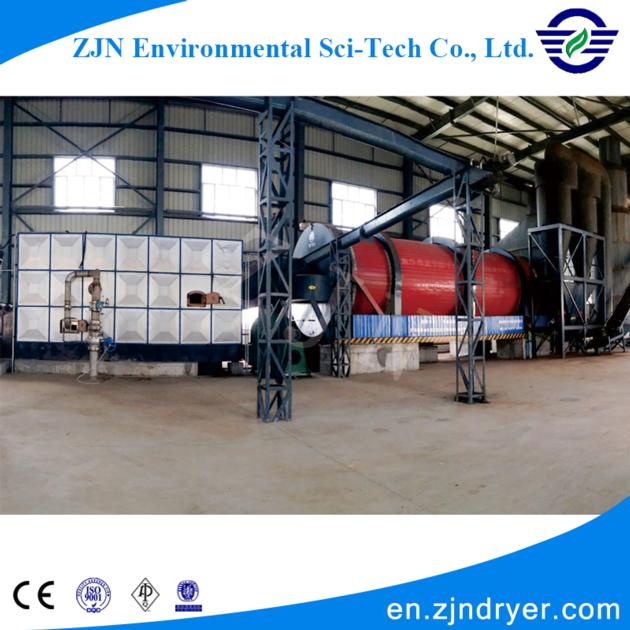

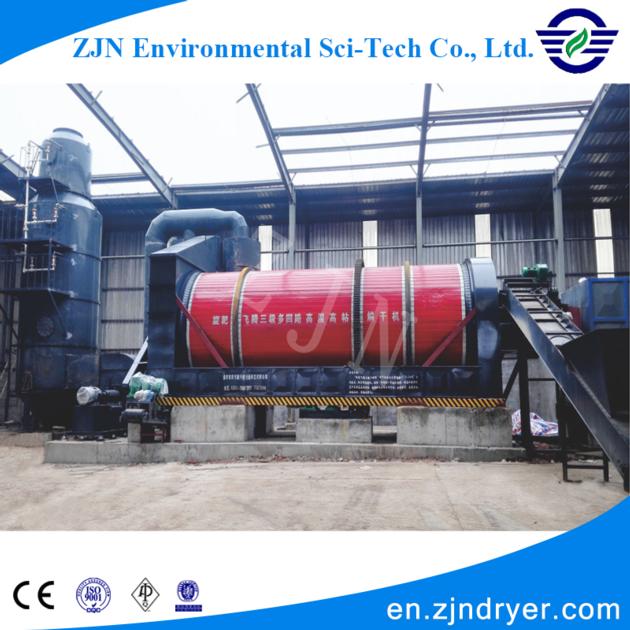

Food Waste Recycling Drying Machine Cassava Dregs/Pulp Rotary Dryer

Working principle

The hot air and wet cassava residue were sent into the main drying unit. Then the wet cassava residue and hot air will be sent into first stage of drying equipment,There is a special broken device in the first stage drying equipment. In this broken device, the wet cassava residue will be broken into scattered and “boiling suspended” state. With the hot air, the scattered cassava residue will be keeping rolling, rotation and separation. So the wet and sticky and blocking phenomenon of cassava residue is solved. Thus the important transformation “high humid —→ not humid, high sticky —→ not sticky, high viscous to not viscous” is completed.

Water vapor produced in first stage drying process is automatically discharged at the end of first dryer. The scattered cassava residue are discharged into second dryer.The second dryer adopts reverse flowing and vortex drying technique, the drying efficiency is also intensified. At the same time, heat and mass transfer is strengthened, which leads to bound water extravasation and evaporation speed up. Water vapor is discharged at the end of the second dryer. cassava residue are automatically sent into the third dryer . The third dryer adopts interflow plus reciprocating drying technique,the wet cassava residue move slowly and reciprocating, while the dried ones move in advance and fast. cassava residue will be discharged automatically when they are dry enough as request.

Advantages

Special technology can take more energy-saving and efficient for you,and the main structure is consists of three different metal steel cylinder with different diameter, it can get a bigger evaporation area, and drying faster,letting the material make a full contact with the hot air;“Auto-Feeding Control device” can be regulated according to the moisture content of the material;“Negative pressure”working condition, clean work site and operating reliably.

Our Services

1)Pre-sale services: Enthusiasm and sincere
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services:Careful service
For your service to be exhaustive, so that you feel the seriousness of our team products and team customers intentions;
3)After-sale services: Faithfulness
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)After service
We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term.
