Flat pcb pancake slip ring

Price: US$ 100 / Piece
Minimum Order: 1 pcs
Payment Terms: EXW Shenzhen
Port of Export: Yantian,Shenzhen
Skype Me
Product Details
Model No.: JSR-PS series Brand Name: JARCH
Certification: CE,FCC,ROHS
Specification: Operating Speed 0-200 rpm
Number of Circuits 2 ~ 10
Voltage 240 VAC/DC
Current Rating 10A per circuit
Temperature Range -20®C to +80®C
Contact Material Gold to Gold
Lead Size 22# silver plated copper
Lead Length Standard 250 mm(9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 5mΩMin
Packaging & Delivery
Packaging: Gift box or custom packing
Delivery/Lead Time: 7 WORKING DAYS
Production Capacity: 1000pcs/week
Product Description

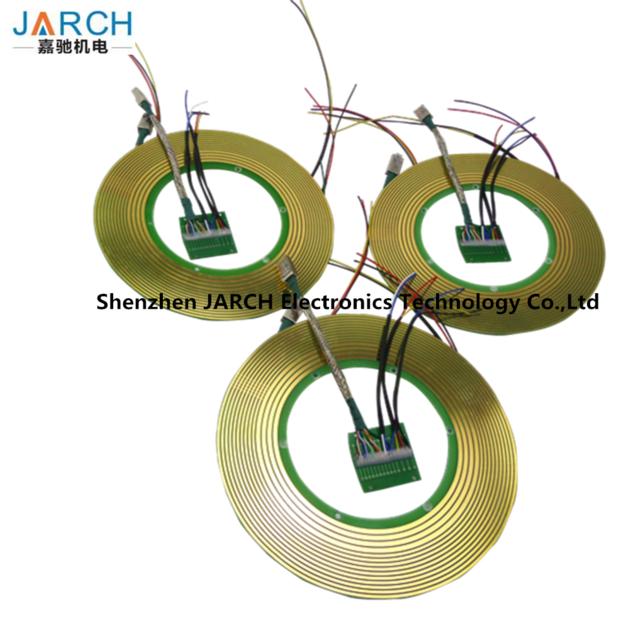

Through hole size 3mm-70mm Flat PCB pancake slip ring flanges connectors


Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;


2,3,4,6,8,10 circuits version

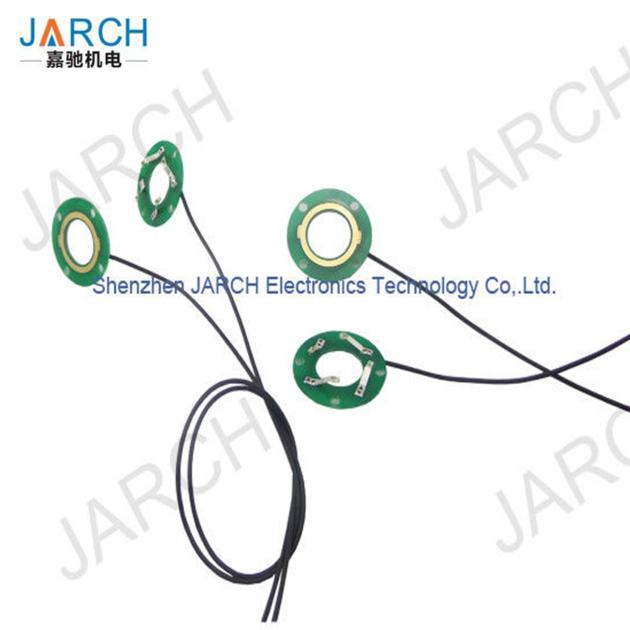

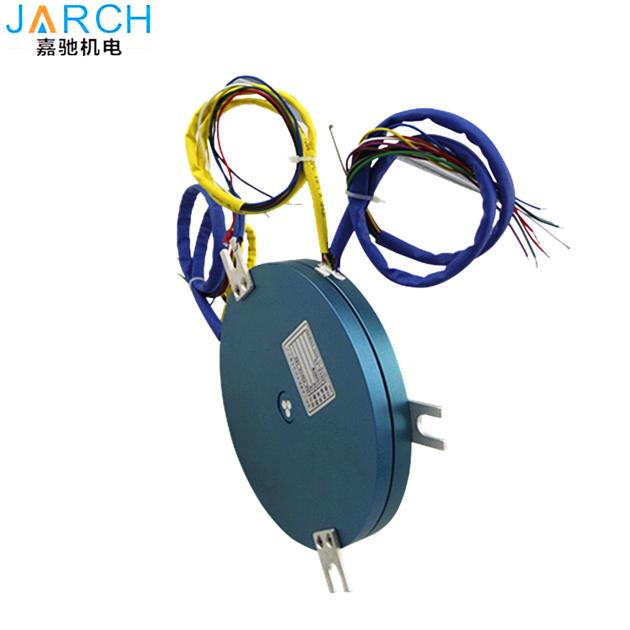

In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. The PS045 bore size 45mm, uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates
Flat pcb pancake slip ring
Flat Pcb Pancake Slip Ring
Flat Pcb Pancake Slip Ring
Flat Pcb Pancake Slip Ring
