Fingerprint Mifare S50 RFID Contactless Card
| Price: | US$ 49 / Piece |
|---|---|
| Minimum Order: | 1000 pieces |
| Payment Terms: | T/T |
| Port of Export: |
Product Details
| Model No.: | FPrfid-S50 | Brand Name: | Digimore |
|---|
| Certification: | |
|---|---|
| Specification: |

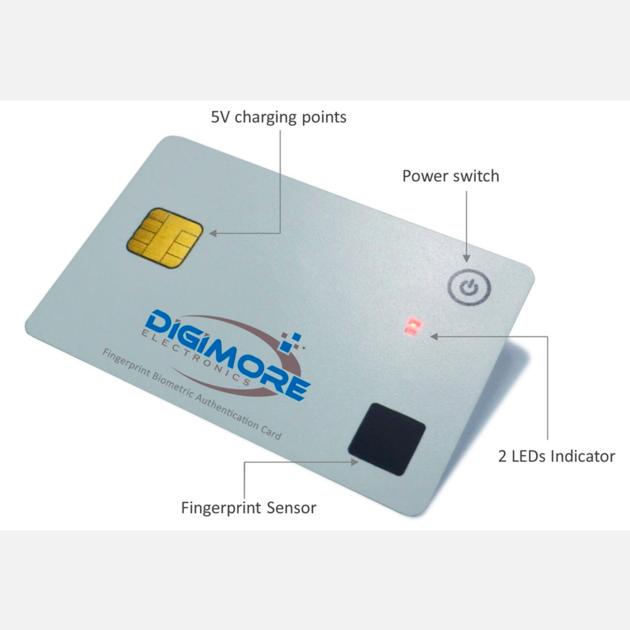

**Mifare RFID Card** *Card Size : 85.6 (L) x 54 (W) x 0.74 ~ 0.84 (T) mm *Chipset : Philips MF1 IC S50 *Frequency : HF 13.56Mhz *Card Material : ABS, PVC, PET as requested *LED Indicators : 2 LEDs, red indicates power on; green indicates fingerprint recognition *Embedded Battery : Solid state battery for fingerprint sensor *Card Warping/ Curl Test : Compliance ISO/IEC 14443-1 4.3.3, ISO/IEC 10373-1 5.8 **Capacitive FingerPrint Sensor** *Resolution / Sensing Area : 508 DPI / 8 x 8 mm or 160 x 160 pixel *Sensor Type : Capacitance Type *Supply Voltage : 3.0 ~ 3.6VDC *Hardness / Surface : Up to 6H / Cermet-like Coating *FAR / FRR : 0.0001 / < 2% *Fingerprint Template Number : Finger number x 5, each finger image x 8 *Battery Life : 300 times operation based on 6 sec. when pressing power button *Operating Temperature : -10 ~ 50o C / < RH 20 ~ 85% |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 30~40 days |
| Production Capacity: |
Product Description

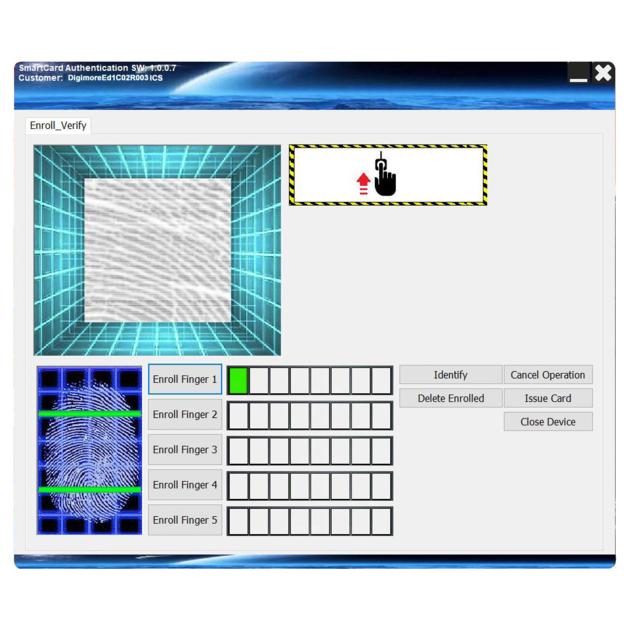

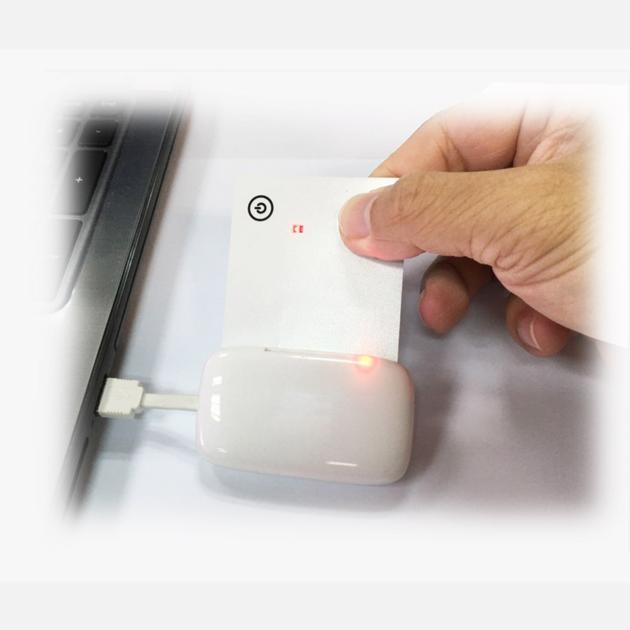

Fingerprint Mifare S50 RFID Contactless Card FPrfid-S50 is a powerful 13.56Mhz Mifare S50 RFID card built-in capacitive fingerprint sensor with MCU embedded recognition algorithms. The Cermet-like coating of the fingerprint sensor provides up to 6H hardness and protects sensors against scratch, impact, and daily wear-and-tear. It can be widely applied in various fields such as access control systems, locks, and safes, high-level security applications. With the software of fingerprint enrollment, the administrator can easily manage finger enrollment.
- Operation -
# The Card not activated：The red LED starts flashing after the button is pressed. If there’s no fingerprint pressing on sensor, it will be Power OFF after 10 seconds. If there’s fingerprint pressing, it will turn to the green LED for 30 seconds, and then Power OFF.
# The Card not activated：The button is pressed over 6 seconds for entering Enroll mode, then the red LED starts slow flashing. After the fingerprint registration is completed, it will automatically implement Issue Card action and then Power OFF. If Fingerprint enroll process is not completed, this card is equivalent to an empty card.
# The Card has been activated：It turns to the red LED after the button is pressed. If no fingerprint is pressing after more than 10 seconds is accumulated, or identification fails over 3 times, it will be Power OFF. If there’s fingerprint pressing and identification is successful, it will turn to the green LED for 30 seconds, and then Power OFF.
# The Card has been activated：It goes to Delete Mode after the button is pressed over 6 seconds, then it turns to the red and green LED. It can delete Finger database while it needs match the 1st Finger of Finger database. When the 1st Finger of Finger database is pressed and matched, the green LED starts flashing 3 times, then it goes to delete Finger database. If there’s no fingerprint pressing on sensor over 5 seconds, or finger matched is failed, then it will be Power OFF.
|
