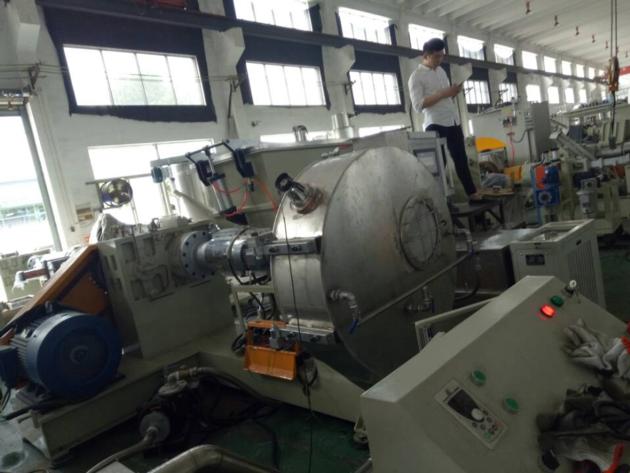

Filled master-batch extruder
| Price: | US$ 31343 / Set |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | CFR,FOB,CIF |
| Port of Export: | Shanghai |
Product Details
| Model No.: | JS65 | Brand Name: | Nine Delong |
|---|
| Certification: | SGS |
|---|---|
| Specification: |
Filled master-batch extruder
Features: 1, Modular principle design for screw configuration and barrel setup makes combination and cleaning convenient , also easy to adapt to customers' requirements . 2, Different kinds of pelletizing modes can meet specific material properties: water-cooling strand pelletizing, air-cooling hot-cut pelletizing, water-ring pelletizing, under water pelletizing, etc. 3, Screw elements and kneading blocks are made of high tool steel , with high corrosion-resistant and high wear-resistant. 4, Barrels are made of high quality nitrided steel , corrosion proof and antifriction. 5, Vacuum system fulfills devolatilization to ensure the quality of polymer processing. PA6 PA66 recycle pelletizing machine |
Packaging & Delivery
| Packaging: | wood case |
|---|---|
| Delivery/Lead Time: | 45 work days |
| Production Capacity: | 200-355kg/h |
Product Description
Configuration:
1.Reducer: ZLYJ series professional design for the single screw extruder ，
The output shaft with high strength 42CrMo, other gears and shaft parts using high-strength 20CrMnTi material; gear through carburizing, quenching, grinding process, high precision gear, high hardness; gear accuracy for GB10095-88,6 ,grade Surface hardness between HRC-54 ~ 62,at the front of hollow output shaft configure thrust bearings, bear axial thrust when it is working.
2.feeder: we use twin screw metering feed,the feed volume can be control,or we use conical screw feeder
3.Screw:material for 38CrMoALA nitriding treatment, nitriding HRC65-70, deep 0.6-0.75mm, brittleness is not greater than grade II. Screw surface hard chrome plating;before 1m of the exhaust hole spray hard alloy, improve wear resistance. screw core through water cooling;
4.barrel
A.material for the 38CrMoALA nitriding treatment, nitriding HRC65-70, deep 0.6-0.75mm, brittleness is not greater than grade II;
B.barrel adopt water cooling, copper tube to strengthen ,production process improvement,prevent leakage here;
C. barrel plus stainless steel shield, requiring the shield and the base associated;
D.barrel with exhaust, adopt hard tube connect the vacuum chamber, easy to clean up materials and pipes.
E. heating section: adopt high-quality cast aluminum heater
|
