Field Inspection Testing Kit
| Price: | US$ ask for last price / Unit |
|---|---|
| Minimum Order: | |
| Payment Terms: | CASH , L/C, TT, MONEYGRAM, WESTERN UNION |
| Port of Export: |
Product Details
| Model No.: | Brand Name: | ParsRos |
|---|
| Certification: | |
|---|---|
| Specification: |
PRS-ZE0080 Field Inspection Testing Kit
Dimensions (packed) 240x210x50 mm Weigth (approx.) 1.8 kg PRS-ZE0082 Field Inspections Pocket Vane Tester Vane Dimensions (height x dia.) 32x16; 40x20, 50.8x25.4 mm Measuring Range 0 to 240 kPa (0-24 N/cm') Torque Value 5 N - m Extension Rod 500 mm depth. Overall Dimensions (assembled) 310x105 mm Weight 1.3 kg PRS-ZE0084 Heavy Duty Pocket Penetrometer Measuring Range 0 to 10 kgf/cm' Dimensions (assembled) 210 mm length x 20 mm dia. Weight (approx.) 0.5 kg STANDARDS ASTM D2573 |
Packaging & Delivery
| Packaging: | yes |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Field Inspection Testing Kit
PRODUCT CODE
PRS-ZE0080 Field Inspection Testing Kit
PRS-ZE0082 Field Inspection Pocket Vane Tester
PRS-ZE0082/1 Extension Rod for PRS-ZE0082
PRS-ZE0084 Heavy Duty Pocket Penetrometer, 0-10 kgf/cm2
The PRS-ZE0080 Field Inspection Testing Kit is ideal for geotechnicians, geologists and agronomists.
It consists of the PRS-ZE0084 Pocket Penetrometer and of the PRS-ZE0082 Field Inspection Pocket Vane Tester.
The instrument is contained in a practical carrying case.

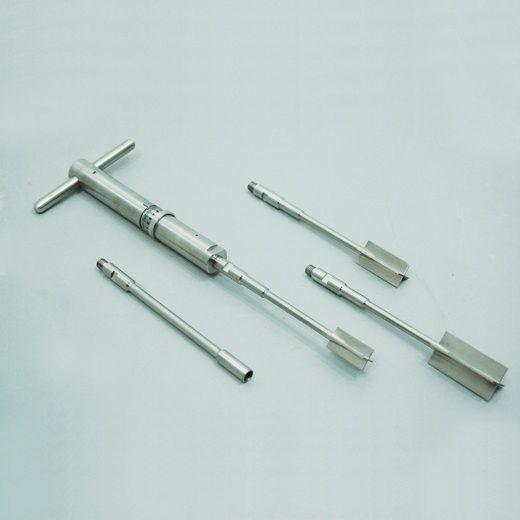

The PRS-ZE0082 Field Inspection Pocket Vane Tester is especially designed to measure the undrained shear strength (CU) of cohesive soils, consists of a cylindrical body with a torsional spring and three interchangeable vanes of different sizes used depending upon the expected strength of the soil.
The height/diameter ratio of all vanes is 2. During operation the vane is driven for 5-6 cm into the soil and then turned with the handle.
Deep measures (i.e. on the top of undisturbed samples) can be obtained using the extension rod. All stainless steel construction. Supplied in a plastic case.
Extension rod should be ordered separately.

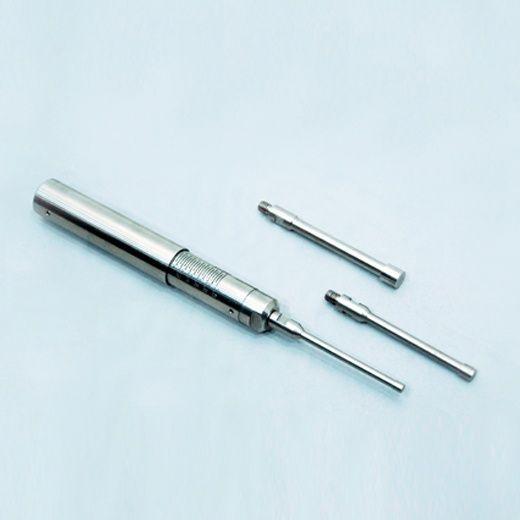

The PRS-ZE0084 Heavy Duty Pocket Penetrometer is designed for making field classification of cohesive soils in terms of consistency, shear strength and approximate unconfined compressive strength.
Heavy duty model is all stainless steel construction, three interchangeable tips: 4.5 mm dia. for very hard soil, 6.35 mm for medium and soft soil, 8.98 mm for soft soil. Supplied complete with plastic case.
|
