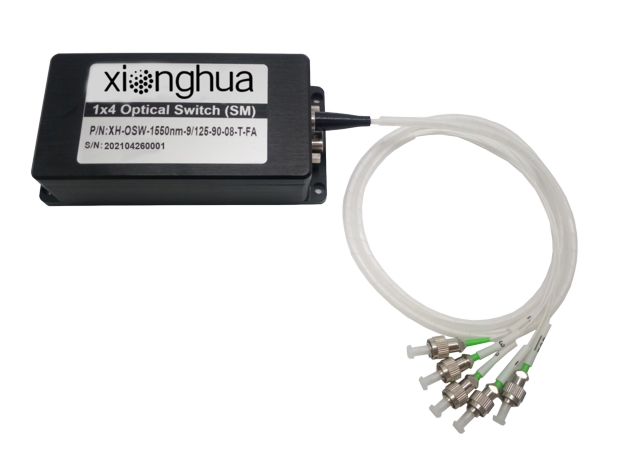

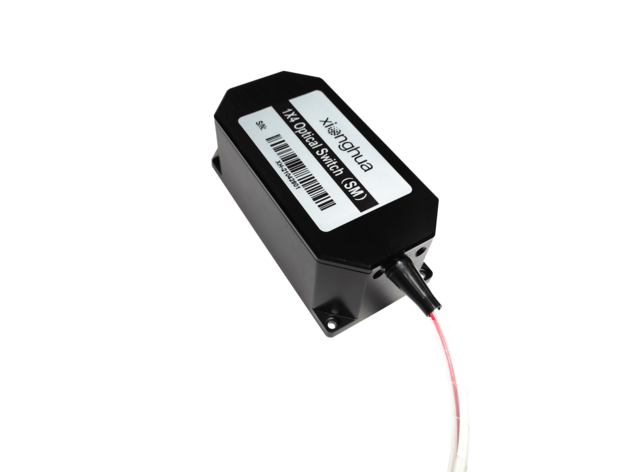

Fiber optical switch XH-OSW-1XN

XH-OSW-1XN optical switch is an optical path control device, which has the role of controlling the optical path and converting the optical path. It has an important role in optical communication applications. The optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multi-source/detector automatic switching and optical sensing multi-point dynamic monitoring system optical test system for optical fiber, optical devices, network and field engineering optical cable testing; optical device installation and adjustment.

Features

● Low insertion loss, wide wavelength range

● Low channel crosstalk, high stability, high reliability

●Proprietary technology, no glue in the optical path

●Locking and non-locking control types are available


Performance


Operating Parameter Parameter Values
Model XH-OSW-1xN
Insertion Loss 1＜N≤16
Insertion Loss Typ:0.5dB Max:1.0dB
Wavelength Range 532~1064nm 1260~1650nm
Wavelength Testing 532/650/780/850/980nm 1310/1490/1550/1625nm
Return Loss MM≥30 dB SM ≥50 dB
Crosstalk MM≥70 dB SM ≥70 dB
PDL ≤0.05dB
WDL ≤0.25dB
TDL ≤0.25dB
Repeatability ≤0.02dB
Lifetime ≥ 107
Switching Time ≤ 8ms
Transmission Power ≤ 500mW
Connector FC、LC、SC、ST
Control TTL
Operating Voltage 5V
Working Current 500mA
Operating Temperature -20℃~+70℃
Storage Temperature -40℃~+85℃
