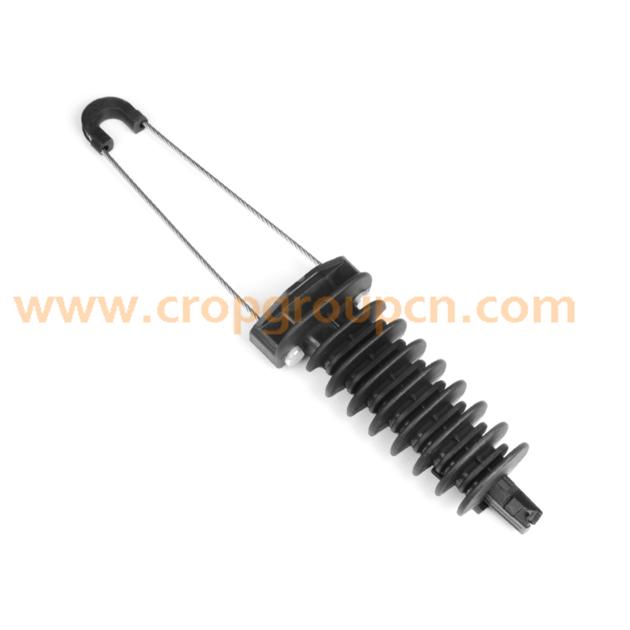

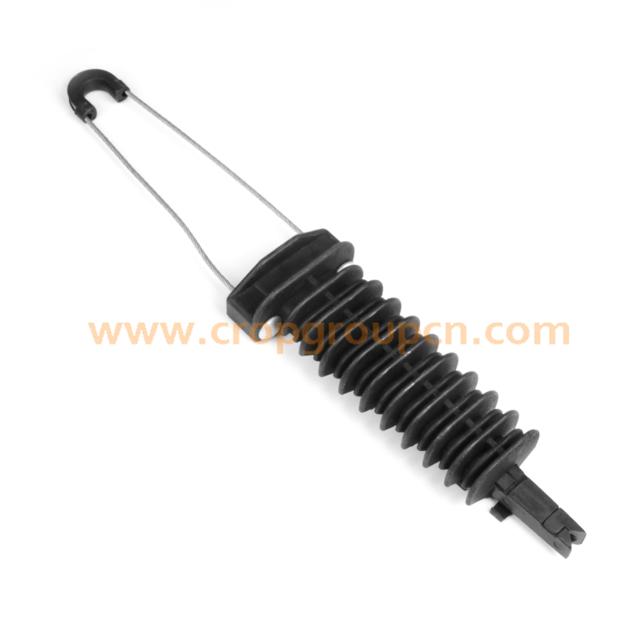

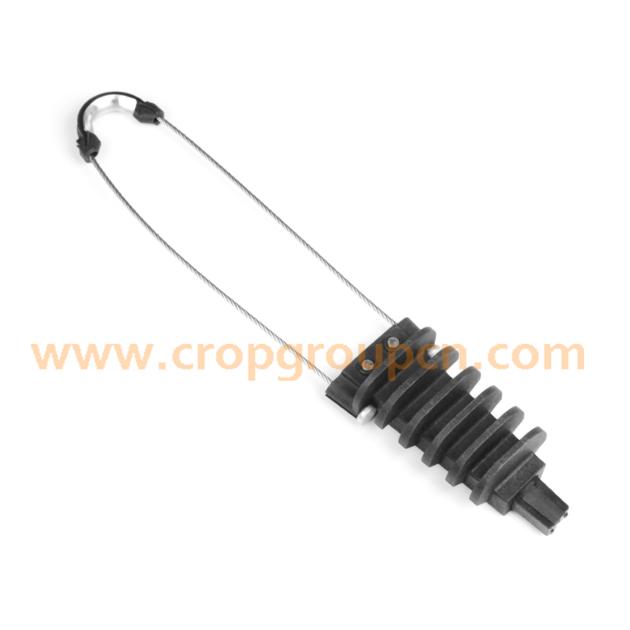

Fiber optic cable clamp anchoring clamp

Qucik detail

Place of Origin Zhejiang, China Brand Name CROP
Model Number Fiber optic drop cable clamp Product name Fiber optic drop cable clamp anchoring clamp
Sample Free Material Aluminum,Copper
Company website * Quality Prime
Installation Quick Certifications ISO9001
OEM Acceptable Export All over the world
Business Type Manufacturer
More detail,please visit our company website: *

Contact information:

Ada Wang


Description of Dead End Clamp for ADSS conductor
The Dead End Clamp for ADSS conductor is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The ADSS tension clamp is composed of a body, wedges and removable and adjustable bail or pad.The PA series Anchor clamps are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Material of ADSS tension clamp
The ADSS tension clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

Feature of PA series Anchor clamps
1.Simple and fast installation requiring no tools.
2.Suits to all field configurations.
3.Possible to mount on pole line hardware with open or closed eye.
4.Mechanical traction resistant.
5.Supports industrial duty tension.
6.Corrosion resistant.
7.Weatherproof.

For the correct installing PA1500 dead end clamp, the following steps are recommended:
Loosen the mooring hook from the anchor clamp.
Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
Remove the wedge from its base and then place the cable within the clamp.
Replace the wedge to its corresponding position and proceed to tense the cable taut.


Models AC-PA69-ADSS AC-PA1500-ADSS AC-PA2000-ADSS




Cable diameter(mm) 5~ 9 8 ~ 12 12-15
Core No. 1 1 1
MBL(daN) 600 (800) 1000(1500) 1500(2000)
(*)Add “FA” mean steel rope, add “SS” mean stainless steel rope
