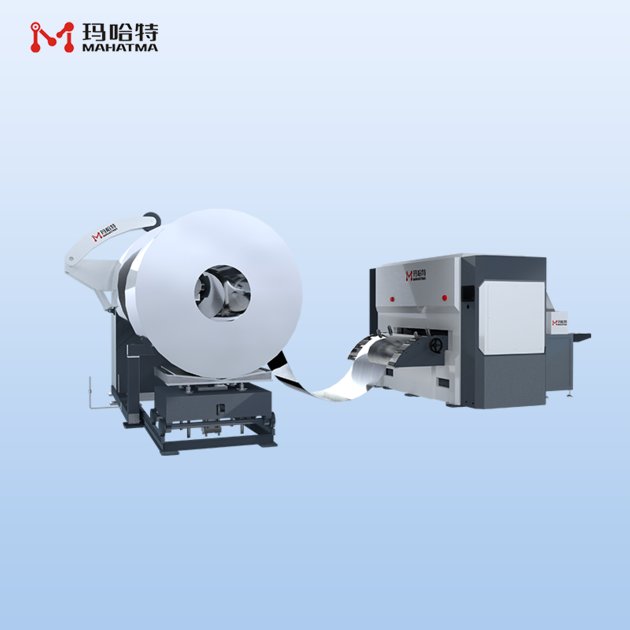

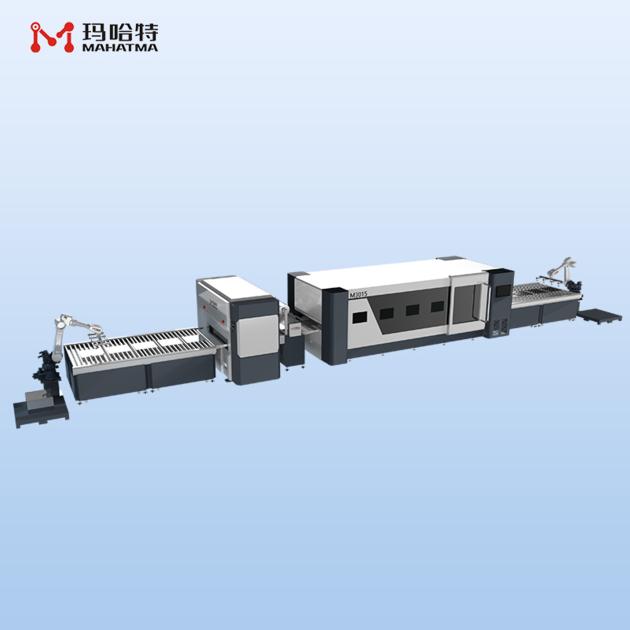

Fiber Laser Cutting Machine for Coiling material

Shear Line Technical features
Model MHTS-1300L
Maximum Width(mm) 1300-2500
Maximum Thickness(mm) 3/6/10
Roller Diameter(mm) 60/80/120
Leveling Accuracy(mm/m2) 1
Maximum Weight(t) 5/10/15/20
Automatic Hydraulic Feeding Trolley No
Speed(m/min) 0-20
Inner Diameter(mm) ∮480- ∮530
Maximum Outer Diameter(mm) Φ1500
Numbers of Roller 13
Controller
Feeding Accuracy(mm) ¯0.2
Air Pressure(kg/cm°) 5
Rack expansion mode Hydraulic
Servo Motor Servo + Reducer
Rack motor(kw) 5
Feeding direction left→right
Feed line height(mm) 850¯50
Voltage(v) AC380v

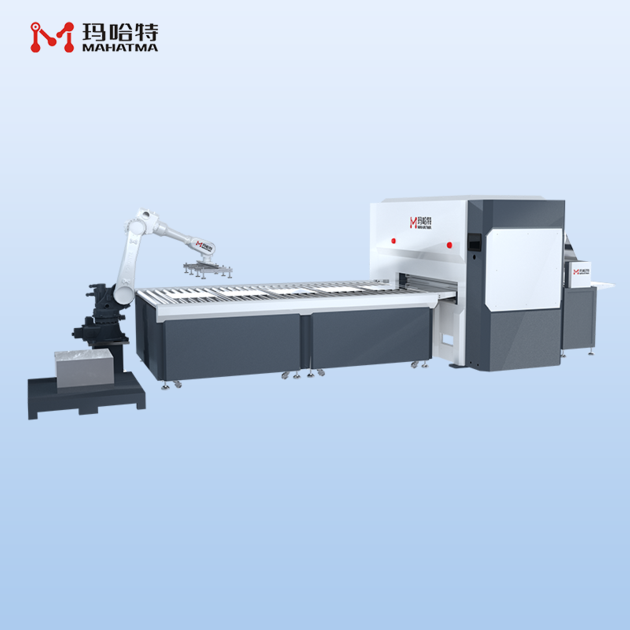

Optional 1. Blanking manipulator 2. Blanking joint robot 3. Automatic film laminating machine 4. Automatic stacking lifting table 5. Blanking platform

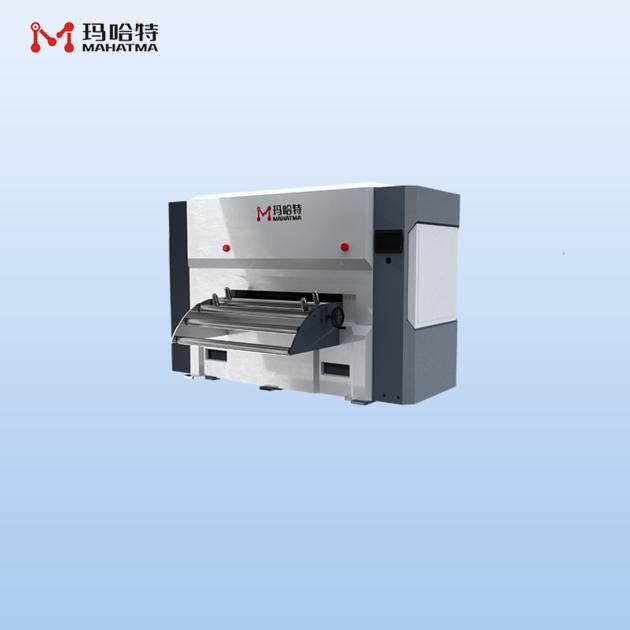

Function of Leveling machine

Under the condition of large elastic-plstic bending, no mater how different the original bending degree, the CNC precision leveling machine uses the "Bauschinger effect" of the material to bend the plate repeatedly, gradually reduce the bending deflection, and gradually change the origina curvature into a single curvature, and finally level it to achieve the leveling accuracy required by the process.
After a series of alternating bending, the sheet metal is controlled by the motor and the PLC to accurately control the lower pressure of each leveling drum,elminating the internal stress, and fundamentally solving the unsatisfactory leveling effect caused by the different stress in each part of the sheet metal, thus achieving high precision leveling.
