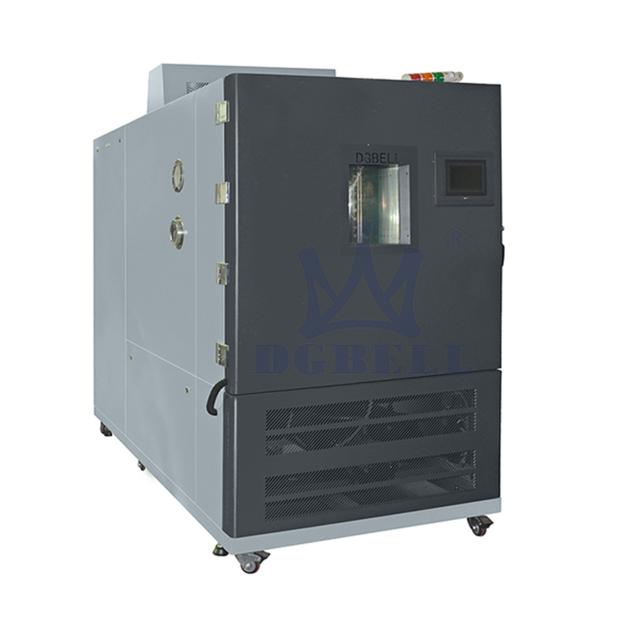

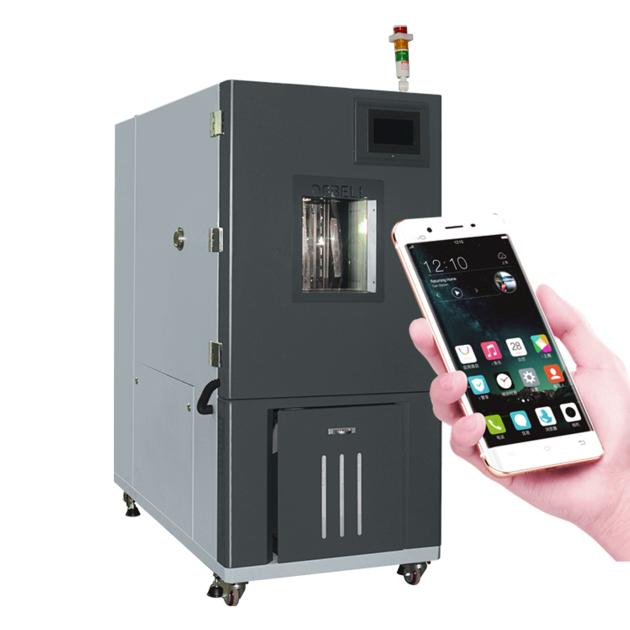

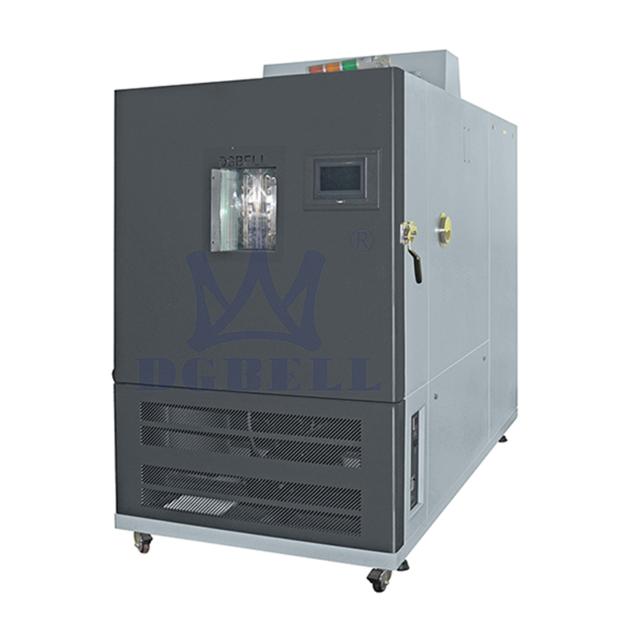

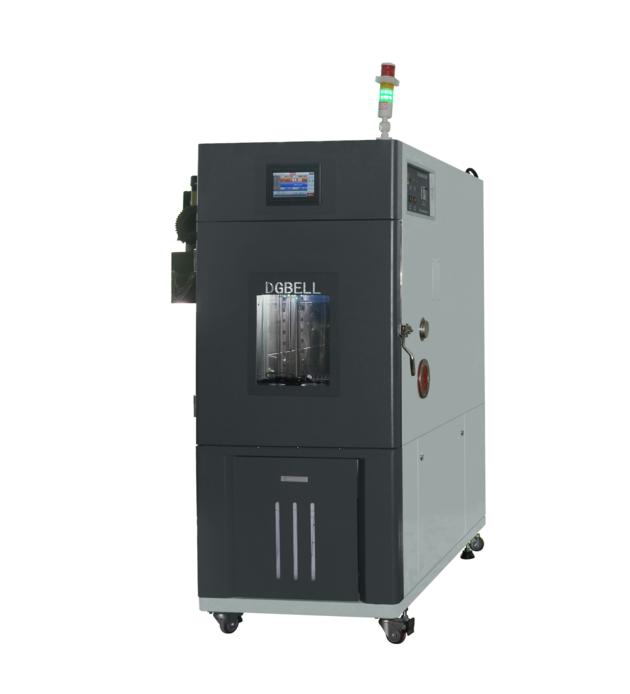

Fast Temperature Alternating Test Equipment BTKS Series
| Price: | US$ 6000 |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | T/T, L/C |
| Port of Export: | Shenzhen, Guangzhou |
Product Details
| Model No.: | BTKS | Brand Name: | DGBELL |
|---|
| Certification: | |
|---|---|
| Specification: | We can customize the inner test space, the temperature range, speed of cooling and heating(5℃/min, 10℃/min, 15℃/min) |
Packaging & Delivery
| Packaging: | poly wooden box specially for exporting |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 300sets/year |
Product Description
Application
This equipment is widely applied for electronic and electric products,
components and materials by constant high low temperature, temperature change,
rapid rate temperature change ,damp heat etc environmental simulation
reliability test .
Standard Compliance
1. Manufacturing standard :
GB/T10586-2006 Specifications for damp heat chambers
GB/T10592-1989 Specification for low/high temperature test chambers
2. Inspection Standard :
GB/T5170.2-1996 Inspection methods for basic parameters of environmental
testing equipment for electric and electronic products. Temperature testing
equipment;
GB/T5170.5-1996 Inspection on methods for basic parameters of environmental
testing equipment for electric and electronic products--Damp heat testing
equipment
3. Testing Standard Compliance :
GB/T5170.2-2008 Inspection methods for environmental testing equipment for
electric and electronic products-Temperature testing equipment
GB/T2423.1-2008( IEC60068-2-1:2007 )Environmental testing - Part 2: Test
methods - Tests A: Cold
GB/T2423.2-2008( IEC60068-2-2:2007 )Environmental testing for electric and
electronic products Test methods - Tests B:Dry Heat
GB/T2423.22 Environmental testing for electric and electronic products-Part
2:Test methods-Test N:Change of temperature
IEC 60068-2-14 2009 Environmental testing -- Part 2-14: Tests -- Test N: Change
of temperature
GB/T5170.2-2008 Inspection methods for environmental testing equipment for
electric and electronic products-Temperature testing equipment
Specification
Model No.
Internal Dimension (mm)
External Dimension (mm)
BTKS-225
W600*H750*D500
W1100*H1680* , D1950
BTKS-500
W800*H900*D700
W1300*H1830 , *D2200
BTKS-800
W1000*H1000*D800
W1500*H1 , 730*D2350
BTKS-1000
W1000*H1000*D1000
W15 , 00*H1930*D2560
BTKS-1500
W1500*H1000*D1000
W2360*H1930*D2200
Technical Parameters
Temp. Range
B:-20-150℃ C:-40-150℃ D:-70-150℃
Humidity Range
20-98%RH
Temp. Heating/Cooling capability
( 5℃/10℃/15℃) min, liner or non-liner control
Temp. Fluctuation
≤¯0.5℃
Temp. Deviation
≤¯2℃
Temp. Uniformity
≤¯2℃
Humidity Fluctuation
≤¯2.5℃%RH
Humidity Deviation
≤+2,-3%RH (≥75%RH);≤¯5%RH (≤75%RH)
|
