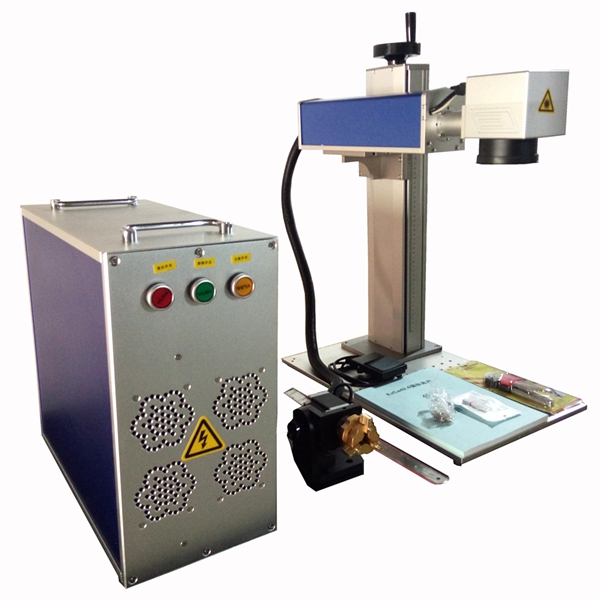

Factory price 20W 30W fiber laser metal marking machine used for aluminum gold silver brass
| Price: | US$ 3299 |
|---|---|
| Minimum Order: | 1 sets |
| Payment Terms: | T/T, Paypal, Via card, Bank transfer... |
| Port of Export: | Qingdao/Shanghai |
Product Details
| Model No.: | TS20G/TS30G | Brand Name: | JIN ZHI YIN |
|---|
| Certification: | CE/FDA |
|---|---|
| Specification: |
Technical Parameters
Type TS- Power 20W/30W Laser Brand Maxphotonics (Raycus/IPG Optional) Optional Marking Area 110mm*110mm / 150mm*150mm /200mm*200mm Marking Depth ≤0.5mm Marking Speed ≤7000mm/s Minimum Line Width 0.012mm Minimum Character 0.15mm Repeated Precision ¯0.003mm Life-span of Fiber Laser Module 100 000hours Beam Quality M2 <1.5 Focus Spot Diameter <0.01mm Output Power of Laser 10%~100% continuously to be adjusted System Operation Environment Windows XP / W7--32/64bits / W8--32/64bits Cooling Mode Air cooling--Built-in Temperature of Operation Environment 15℃~35℃ Power Input 220V / 50HZ / single phase or 110V / 60HZ / single phase Power Requirement <400W Communication Interface USB Package Dimension 890mm x 430mm x 860mm Gross weight 80KG Optional (Not free of charge) Rotary Device, Moving Table, other customized Automation |
Packaging & Delivery
| Packaging: | Standard plywood case for export |
|---|---|
| Delivery/Lead Time: | within 7 working days after get your payment |
| Production Capacity: | Standard plywood case for export |
Product Description
Machine link (To get more discount):
https://*/store/product/20W-Fiber-Laser-Marking-Machine-TS-20F-With-110-110-Working-size-CE-FDA-Certification/1201382_32821263686.html?spm=2114.12010612.0.0.61a01178DZc1oL
Applicable materials
Many type of metals: Gold, Silver, Stainless Steel, Copper, Aluminum, chrome Brass, etc.
Alloy and metal oxides: Anodized Aluminum
Some nonmetal materials & Special surface treatment: silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink, Plating, Spraying, Coating film.
The machine mainly applied to the higher marking precision such as components of automobile and motorcycle, astronautic apparatuses, chips of integrate circuit electronics, packages of food, drink and cigarettes, keys of mobile phone, batteries, electric apparatuses, fittings and peripheral equipments of computer, ironware tools, stainless steel wares, electric products, communication products, medical devices, sanitation, cleaning and bathing wares, clocks and watches, jewelries, industrial bearings, electric wire and cable, garment .It can mark both words and graphs
|
