Factory Price Non-CNC Busbar Punching Bending Cutting Machine JPMX-303CM

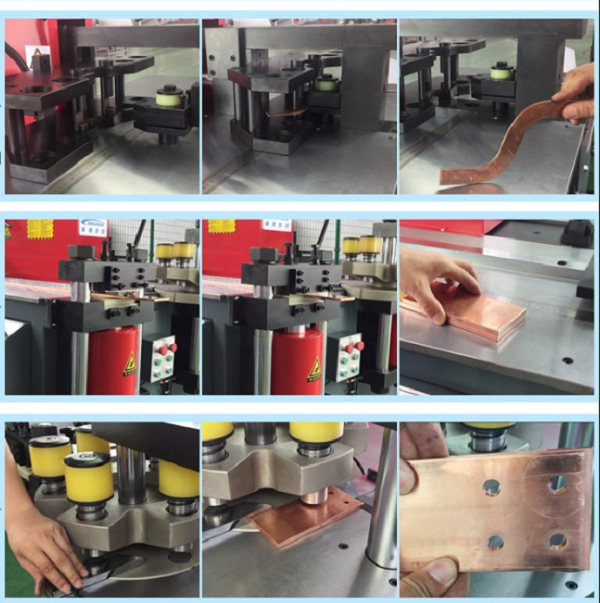

Three working units of JPMX-303CM:

A.Punching unit:

1) United six-dies turn-plate structure, make sure the upper die and the lower die are absolutely in the center.

2) 6 punching dies can punch 6 kinds of holes, no need to replace the dies frequently.

3) Three location modes: locating pin, locating ruler and LED light.

4) No pressing mark on the workpiece surface.

5) Can punch non-standard holes with special dies, for example, square hole, oval hole etc.

6) 2 limit switches. (foot switch & press button).

B.Cutting unit:

1) Use sharp shearing, flat incision interface, no droops, no burrs, no waste.

2) Two pressure type to make sure no apex angle.

3) 2 limit switches. (foot switch & press button)

C. Bending Unit:

Because of only one motor,three working units(punching,cutting,bending units) can't work at the same time.Bending unit can complete horizontal bending,vertical bending,U bending by replacing the processing dies.

1) Horizontal bending.(2 sets horizontal bending dies).The price included in the machine price.

2) Vertical bending. (2 sets vertical bending dies).The price included in the machine price.

3) U bending (1 set).The price included in the machine price.
Main advantages of JPMX-303CM:

1) Turret rotate punch, no need change dies, high efficiency, save time.

2) Cutting without any waste, save busbar. cutting adge very flat.

3) The machine has 4 foot-wheels, easy to move.

4) There are two operating modes: manual button and foot switch, which is simply operated.
