Factory Direct Sale Self Climbing Scaffolding for High-Rise Buliding System
| Price: | US$ 1000 / Ton |
|---|---|
| Minimum Order: | 1 Ton |
| Payment Terms: | T/T, L/C at sight |
| Port of Export: | Foshan,China |
Product Details
| Model No.: | GYB J-01 | Brand Name: | Gouyyebao |
|---|
| Certification: | ISO, SGS |
|---|---|
| Specification: |
Product Name：Intelligent full steel modular attached type lifting scaffold Scaffolding Part Type：Scaffolding Frames / Scaffolding Formwork Move Method：Attached Lifting Scaffolding Construction Properties：Building Scaffold Application：High-rise/High Altitude building construction/Formworking supporting Certification：ISO9001,SGS Structural Style：Integrated Color： Different color available Surface Treatment：Painted Supporting Mode：Wall climbing/ Hanging/ Attaching Scaffolding Specification：customized Distance from wall：30cm Climbing Scaffolding Unit Height：≤15m(no more than 5 floors) Climbing Scaffolding Unit Width：0.7m Linear(Horizontal)span：≤7m Broken line or curve span：≤5.4m Horizontal Cantilever plate length：≤2m, and no more than 1/2 span Frame full height *support span：≤110㎡ Lifting Speed：12cm/Min Anti-falling breaking distance：≤ 80mm Synchronization error of adjacent positions：≤ 30mm Working load：≤ 2.0KN/㎡, 3 floors & ≤ 3.0KN/㎡, 2 floors Lifting load：≤ 0.5KN/㎡, 2 floors Rate power of hoist：500W Rate load of hoist：7.5T Screen windshield coefficient：0.42 |
Packaging & Delivery
| Packaging: | factory packing |
|---|---|
| Delivery/Lead Time: | 5-45 days |
| Production Capacity: | Annual output: 80000 tons |
Product Description

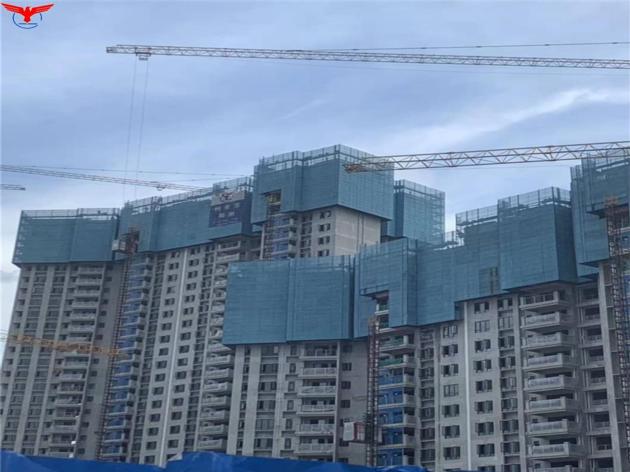

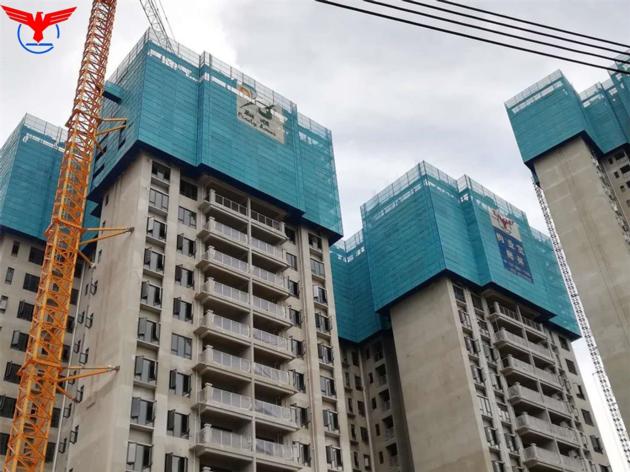

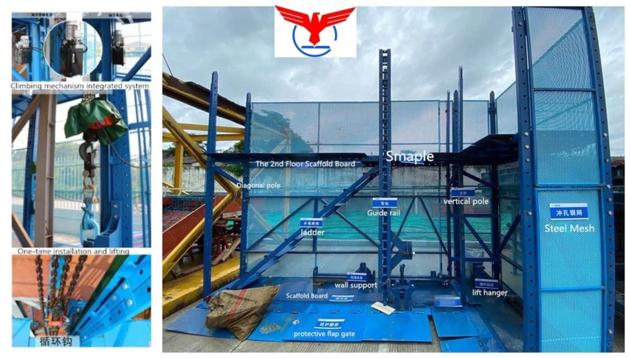

This scaffolding is a new type of self climbing formwork system developed in China Construction recently. It can save more labour and materials during the Building Construction. The most important competitive points are save cost, safety, fast and reusable. This system with automatic devices to operate for self climbing in construction. The construction steel protective screen can prevent effectively workers and objects falling form operating. More safety and higher efficiency.
Assembly and dis-assembly easily. Only one-time installation and lifting for construction. Dis-assembly is not required before completed. Simple and secure operation and reusable.
It is not limited by the height of the building. Wide ranges of applications for save more labour and material.
Customize according to different construction projects in strictly.
|
