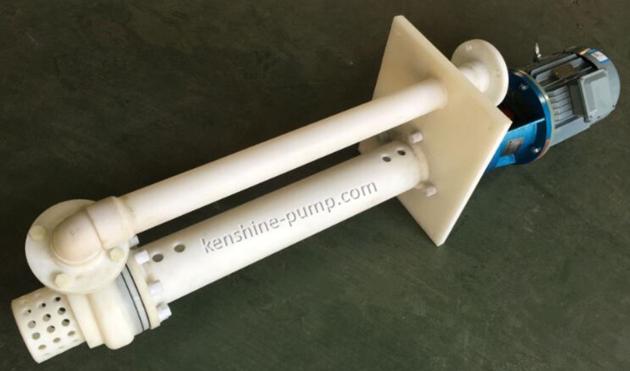

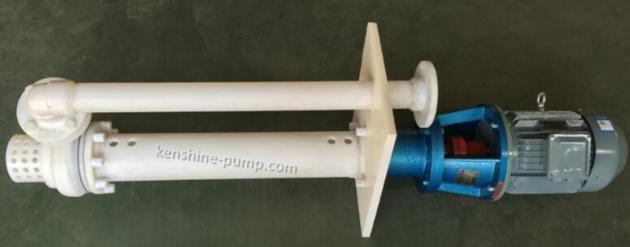

FYS Fluoroplastic submerged chemical transfer centrifugal pump

FYS submerged centrifugal pump is for single stage single suction long shaft submerged pump. The pump is made of fluoroplastic (FEP/F46) material and submerged into the liquids to work.
FYS series fluoroplastic alloy submerged pump is a kind of single-stage single-suction long-shaft submerged pump developed and produced by our company. Fluoroplastic submerged centrifugal pump is suitable for conveying corrosive medium with temperature between 0℃ and 120℃ and no solid particles or abrasive impurities.
All parts which contact with medium for FYS series fluoroplastic submerged pump are covered with fluoroplastic alloy (FEP/F46), the lower sleeve is made of high-quality silicon carbide, with the advantages of abrasion resistance and corrosion resistance.
Performance range: flow rate: 1.6m3/h-100m3/h, head: 5m-1m
When the FYS series corrosion resistant vertical submerged pump is started, the liquid level must be 180mm higher than the impeller center line.
Pumped Medium: Strong acid, alkali, salt, strong oxidant etc corrosive liquids
Flow: 2-200m3/h
Head:5-50m
Pump material: F46/FEP/UHMWPE etc
Model Speed(rpm) Flow(m3/h) Head(m) Motor power(KW) Outlet(mm)
25FYS-6 2900 1.2 7 0.37～0.55 20
1.5 6
2.5 5
25FYS-16 2900 1.5 17.5 0.55～0.75 20
2.5 16
3.5 14.5
32FYS-20 2900 3.5 22 1.1～1.5 25
5.5 20
7.5 16
40FYS-20 2900 5 22 1.5～2.2 32
7.5 20
10 16
1450 2.5 5.5 0.37～0.55
3.75 5
5 4
50FYS-25 2900 12 28 3～4 40
17 25
25 16
1450 6 7 0.75～1.1
8.5 5
12.5 4
50FYS-50 2900 7.5 52 5.5～7.5 32
12.5 50
15 48
1450 3.75 13 1.1～1.5
6.3 12.5
7.5 12
65FYS-20 2900 15 21.5 4～5.5 50
25 20
30 18.5
1450 7.5 5.3 1.1～1.5
12.5 5
15 4.5
65FYS-32 2900 15 34 5.5～7.5 50
25 32
30 30
1450 7.5 8.5 1.5～2.2
12.5 8
15 7.5
65FYS-50 2900 15 53 7.5～11 40
25 50
30 47.5
1450 7.5 13 2.2～3
12.5 12.5
15 11.5
80FYS-20 2900 30 23 5.5～7.5 65
50 20
60 17
1450 15 6 1.1～1.5
25 5
30 4
80FYS-32 2900 30 36 7.5～11 65
50 32
60 28
1450 15 9 1.5～2.2
25 8
30 7
80FYS-50 2900 30 55 15～18.5 50
50 50
60 45
1450 15 13.5 3～4
25 12.5
30 11
100FYS-20 2900 60 24 11～15 80
100 20
120 16
1450 30 6 2.2～3
50 5
60 4
100FYS-32 2900 60 36 15～18.5 80
100 32
120 28
1450 30 9 3～4
50 8
60 7
100FYS-50 2900 60 56 18.5～22 65
100 50
120 44
1450 30 14 5.5～7.5
50 12.5
60 11
125FYS-50 2900 120 61 37～45 100
200 50
240 41
1450 60 15 7.5～11
100 12.5
120 10
150FYS-20 1450 120 24.5 18.5～22 125
200 20
240 15
200FYS-20 1450 240 23 37 150
400 20
460 18
