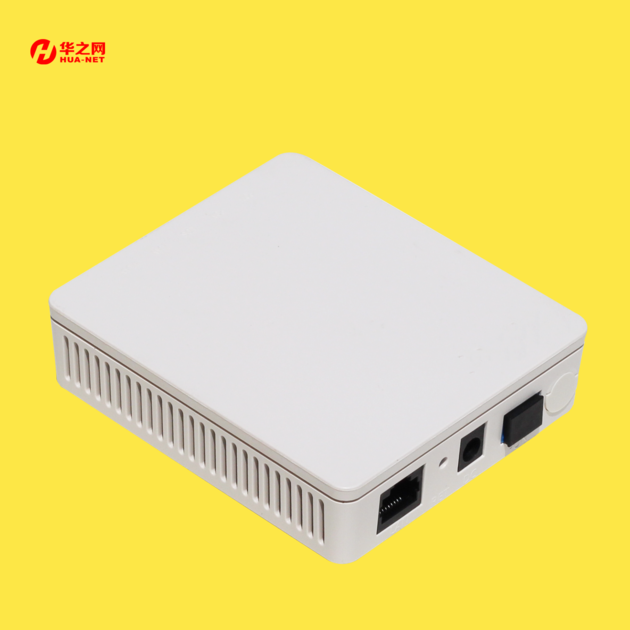

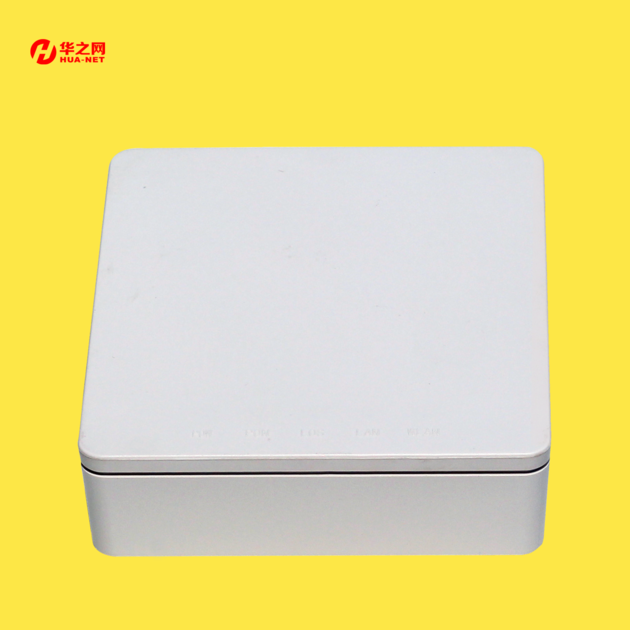

FTTH FTTB FTTD 1ge ont onu manufacturer compatible with ZTE/Huawei/fiberhome/raisecom olt

High Reliability
It provides full-service access, high bandwidth, high performance, high reliability,
easy operation and maintenance, to meet customers evolving requirements, fully
protect the investment and enhance the value of fixed network for operators.
It has many thoughts in heat dissipation. This designation can ensure the stable
running of device.
It uses double software versions which are redundant for each other to contribute to
the system reliability. To make sure that service would not be interrupted by
software bugs, the backup version will be activated while the active software version
is broken.
Reliable lighteningprotection design with a 4KV power, and a 1.5KV Ethernet
interface protect the equipment.
Confidential & Proprietary 7

Green Design
Green design for ZXHN F601 is showed by many thoughts for saving energy. The main aspects are:
While few data frames are switching and ONT is on a relative idle status, the power component will be in dozing mode to save power.
The materials comply with RoHS.

Easy Operation and Maintenance
ZXHN F601 supports batch-update, fault diagnosis and loop routes checking remotely by OMCI.
ZXHN F601 can also be updated and managed in batches through OLT or EMS.
ZXHN F601 supports off-line configuration and Batch configuration, Zero touch configuration in field and automatic release and opening of service.

The F643 Provide English firmware and EU, US, UK, AU Power adapter for your choice.



Applications:

Data services

Voice services

Video services

Monitoring service

FTTH / FTTB / FTTO / FTTP



Performance Specification:

GPON Interface
Optical port: 1 x GPON interface (SC/PC or SC/APC)
Transmission Distance: 0 ~ 20km
Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface
1 x10/100/1000Base-T
Half/full duplex; Auto MDI/MDIX; Auto negotiation
Optical Module
Wavelength:
Receiving: 1480~1500 nm
Transmitting: 1290~1330 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm
Physical Performance
Power consumption: <6mensions: 110mm(W) x 90mm(H) x 53mm(D)
Working temperature: 0oC ~ 40oC
Working humidity: 5% ~ 95%
Weight: about 190g
Power supply: 12V DC
Mounting mode: Desktop/Wall mounting
Main Function
Supported service: Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 256
Multicast: IGMP v1/v2 Snooping
Multicast group per user port: 256
QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;
egress shaping
Management: local web management, OMCI

After-sale Service:

1.Maintenance service
For all the EPON and terminal units, Ethernet switch, and other products, New Greennet promises: Maintenance for life; 24-month maintenance for free.
For these network products in the free maintenance regulations in the maintenance card, we provide free maintenance services within the whole country. For those not in the free maintenance regulations, we provide fee-cost maintenance service.
For the products of stopping production, HUANET will preserve several products for failure exchange and maintenance.

2.Technology support
For all the EPON and terminal units, Ethernet switch, and other products, HUANET promises:
Technology support for life: Free call and E-mail technology supports for each sold network products for life.
Software upgrade for life: Provide upgrade software in the form of E-mail or CD for clients and clients can download it in customer service web
