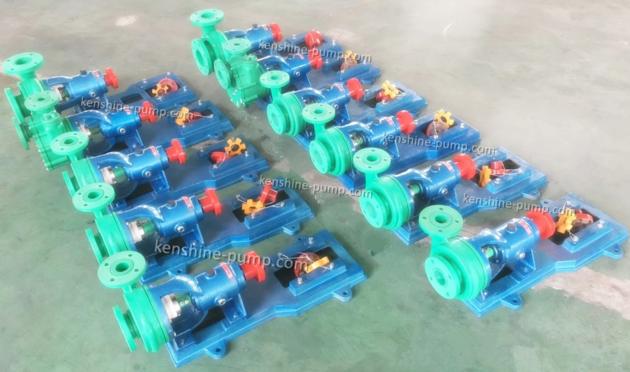

FP,FPZ reinforced polypropylene plastic chemical transfer pump
| Price: | US$ 690 / Unit |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | T/T in advance |
| Port of Export: | SHANGHAI |
Product Details
| Model No.: | FPZ80-32 | Brand Name: | kenshine-pump |
|---|
| Certification: | GS,ISO |
|---|---|
| Specification: |

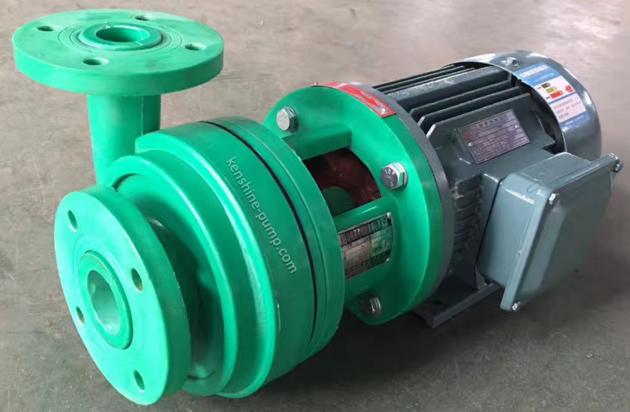

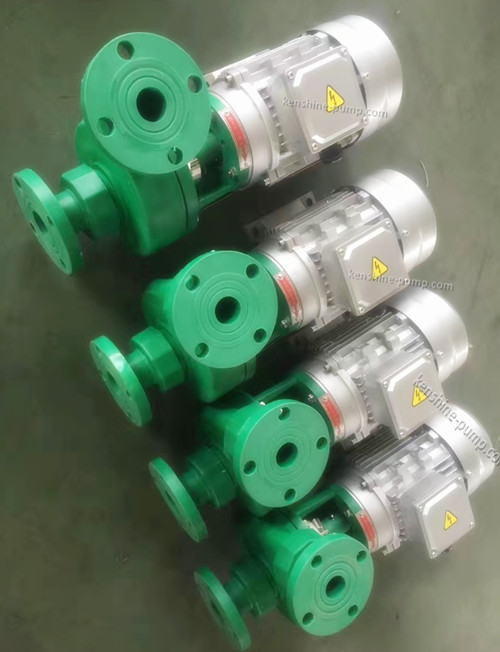

FP Series reinforced polypropylene corrosion resistance centrifugal pump
Summary: FP Series reinforced polypropylene corrosion resistance centrifugal pump has the advantages such as advanced structure, small volume, light weight, energy-saving and good seal and corrosion resistance etc. The pump is widely used to transport the acid and alkali and salt etc corrosive liquids in chemical industry and light industry and waste dealing etc. FP Series reinforced polypropylene centrifugal and FS Series etc pumps all use the mechanical seal and are made from CFR-PP (Reinforced polypropylene) and ABS(Engineering plastic) etc. The 104 pump with 220V can be in domestic use. Model Pump caliber Flow rate Head Suction height Speed Voltage Motor Power Inlet Outlet m±/h M M rpm v KW FP20-15-100(105) 20 15 3 7 4 2900 380 0.75 FP32-25-100(104) 32 25 4 7 6.5 2900 220 0.55 FP32-25-105(103) 32 25 6.3 8 6.5 2900 380 0.75 FP40-32-125(102) 40 32 12.5 20 6.5 2900 380 1.5 FP50-40-130(101.5) 50 40 13 22 6.5 2900 380 2.2 FP65-50-150(101) 65 50 25 25 6 2900 380 4 50FP-22 50 40 13 22 6 2900 380 2.2 65FP-25 65 50 20 25 6 2900 380 4 80FP-28 80 65 50 28 4 2900 380 5.5 80FP-32 80 65 50 32 4 2900 380 7.5 |
Packaging & Delivery
| Packaging: | plywood case |
|---|---|
| Delivery/Lead Time: | 7 Days |
| Production Capacity: | 1000Units per month |
Product Description

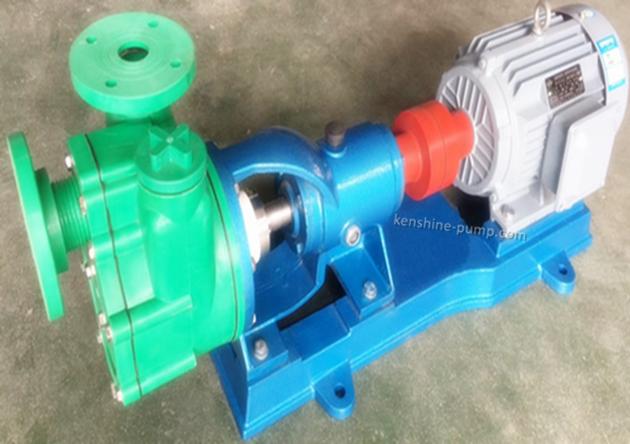

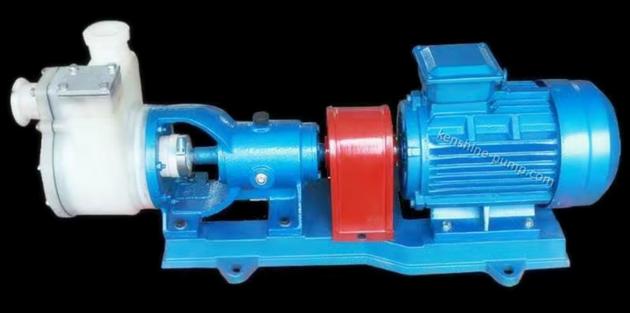

FPZ Series chemical resistant transfer self priming centrifugal pump is the horizontal pump with self priming performance. It is made of reinforced polypropylene plastic (RPP) which is suitable for the liquids with temperature from -10℃ to 90℃ and PVDF which are suitable for the liquids from -10℃ to 120℃. Shaft seal is the corrosion resistance mechanical seal with no leak (WB Series). Impeller and shaft are in-lined for the steady operation and so as not to let the liquids into shaft.
Connection method for the pump and motor has two types. One is close couple which has compact structure and high efficiency. The other is coupling which is convenient to disassemble pump.
FPZ pumps are widely used in chemical industry and pharmacy and food and metallurgy and environment protection and sewage dealing and inorganic salt etc.
Model Caliber Flow rate Head Suction height Speed Voltage Motor power
Inlet Outlet m±/h M M RPM v KW
25FPZ-10(D) 25 20 2.5 10 3 2900 220 0.55
32FPZ-11(D) 32 25 3.4 11 3 2900 380 0.75
40FPZ-18 40 32 11 18 4 2900 380 1.5
50FPZ-20 50 40 13 20 4 2900 380 2.2
65FPZ-25 65 50 26 25 4 2900 380 4
80FPZ-32 80 65 50 32 4 2900 380 7.5
100FPZ-32 100 80 100 20 4 2900 380 11
|
