FA-6100K Auto Refractometer Keratometer Auto Kerato-Refractometer Auto Ref/Keratometer

GD01005
Auto Refractometer Keratometer (Auto Kerato-Refractometer, Auto Ref/Keratometer,  Auto Refractor Keratometer)
Model No.: FA-6100K

Auto Refractometer
Model No.: FA-6100

Features:
1.Display screen: The CRT Monitor make the measurement results and setting image display on an easy-to-view screen.
2.AUTO PD measurement: The PD will be automatically calculated after measurement.

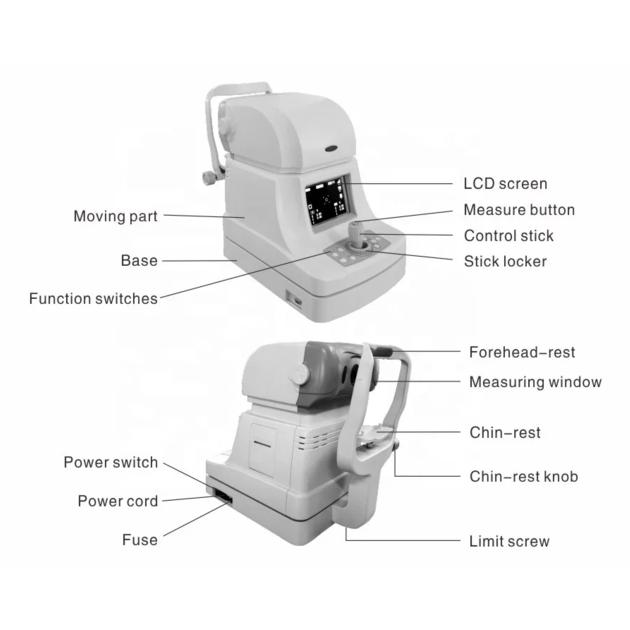

3.Easy to operate, one-hand control: All operations, including UPDown, RightLeft, ForwardBackward and Start can be easily controlled with one hand through the control stick.
4.Faster and more accurate measurement.
5.More broad measurement range of Min.pupil size toφ2.0mm.
6.Auto I manual focus function.
7.Convenient user menu setting.
8.Keratometry and refractometry mode select.

Refractometer
Vertex distance : 0mm, 12mm,13.75mm
Spherical : -20 – 20D (VD=12) 0.125 Steps
Cylinder : -8 – 8D 0.125 steps
Axis : 0～180® 1®Steps
Cylinder form : -, +, -/+
Pupil distance : 45-88mm, 1mm steps
Min. pupil size : 2.0mm
Keratometry
Radius of curvature : 5.0-10mm (increment:0.01mm)
Corneal Power : 33.75-67.50D (when corner equivalent refractive index is 1.337)
Increment selectable from 0.12,0.25m-1
Corneal astigmatism : 0.00-8.00m-1 (Increment selectable from 0.12,0.25m-1 )
Axis : 1~180®(increment:1®)
Corneal diameter : 2.0 -14mm (increment:0.1mm)
Others
Chart : Auto fog
Memory of data : 10 meature value for each right and left eye
Display : 5.6″LCD/TFT
Print : Thermal printer
Power supply : 100 – 240V 50/60HZ
Dimension : 280mm (w) x 540mm (L) x 510 mm (H)
Weight : 20kg
