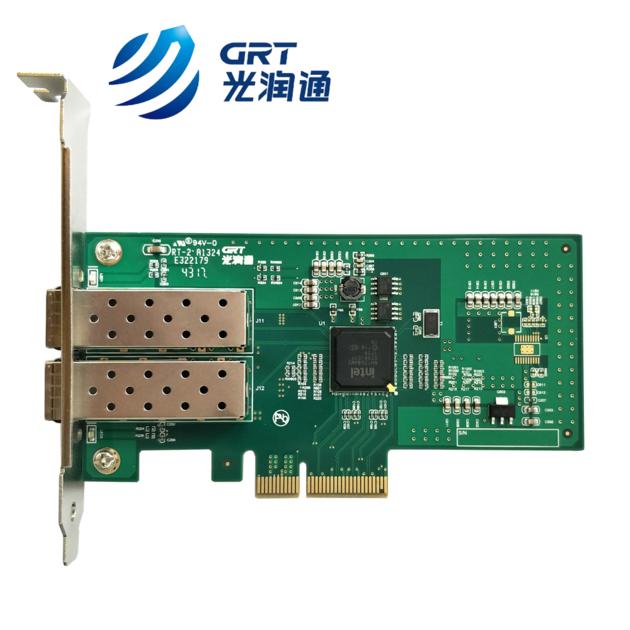

F902E 1000Mb Dual-port Fiber Optic SFP Bypass Network Adapter Card

GRT F902E 1000Mb Dual-port Fiber Optic SFP Bypass Network Adapter Card


Based on Intel¬I350 Ethernet Controller 1Gb Dual-Port PCIe fiber optical Network Card



Description: 1000Mb 2-Port Optical Fiber Ethernet Adapter Item No.: F902EBypass V1.0
Controller Model: Intel I350 AM4 Launch time: 26th Mar, 2015


F902E Bypass V1.0 network adapter card is based on Intel I350 AM2 Ethernet controller with dual port SFP, optimized performance and latest power optimization solutions. It supports both regular communication mode and Bypass mode.

Regular mode:

Bypass Mode:

Under the Bypass mode, the data streams on the port 0 is diverted to the port1 to realize the bypass function. The bypass mode is triggered automatically when the power is off, no need for manual debugging and operating.

1. Key Features

-- Supporting 1000Base-SX and 1000Base-LX
-- 850mm1310nm1550nm, SFP pluggable
-- LC Duplex connector


2. Specifications

Model No. F902EBypass V1.0
Ethernet Controller Intel¬ I350AM2
Connector Type SFP
Slot Type
Max. Bus Rate
PCI Express* 2.1
4 × 5 GT/s channel
Port Dual Port
Slot height 2U or 1U
Smart Uninstall Yes
Intel ¬ Virtualization Technology(Intel¬ VT) Integrated built-in function support: Quality of Service(QoS), Traffic Management, Flexible Port Partition, Virtual Machine Device Queues(VMDq), PCI-SIG* SR-IOV
Ethernet Storage iSCSI,NFS
Performance Optimization
UDP/TCP/IP Checksum Offload
UDP/TCP Transmit Segmentation Offloading(TSO)
SCTP Receive and Transmit Checksum Offload
Virtualization
Next generation VMDq support(8 VMs)
Support 8 vms per each port
Support PCI-SIG I/O SR-IOV(Direct Assignment)
Queue per Port: 8Tx and 8Rx
Energy-Saving Features
Advanced Configuration Power Interface(ACPI) Power Manage and Wake-on
Advanced Power Management(APM) Wake-on
Low Power Disconnection
DMA Coalescing Power Management
Timing & Synchronization
IEEE 1588 Perfect Time Protocol (PTP)
Time tagging for each packet
Operating Temperature 0®C — 55®C
Rated Power 2.5W
