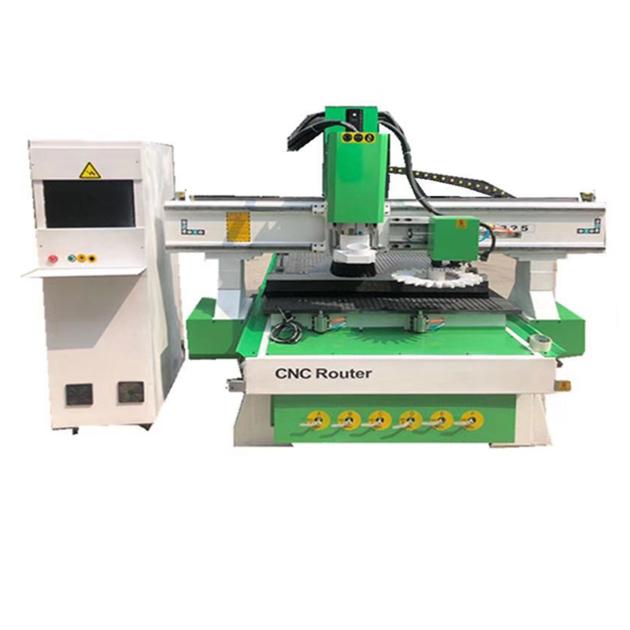

Engraving CNC Router
| Price: | US$ 9000 / Kit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T |
| Port of Export: | QINGDAO |
Product Details
| Model No.: | 1325S-ATC | Brand Name: | SDWEM |
|---|
| Certification: | SGS |
|---|---|
| Specification: |
Performance parameter
Number Description Parameter 1 X,Y,Z Working Area 1300x2500x250mm 2 Table size 1360x2940mm 3 X,Y,Z Traveling Positioning Accuracy ¯0.03/300mm 4 X,Y,Z Repositioning Accuracy ¯0.03mm 5 Table Surface Vacuum and T-slot Combined 6 Frame Welded structure 7 X, Y Structure Rack and Pinion Drive 8 Z Structure Hiwin Linear Rails and Ball Screw 9 Max. Power Consumption (Without Spindle) 4.5kw 10 Max. Rapid Travel Rate 45000mm/min 11 Max. Working Speed 30000mm/min 12 Spindle Power 9.0kw italy or HQ 13 Spindle Speed 0-24000RPM 14 Drive Motors Yaskawa servo or Delta 15 Working Voltage AC 380V/50/60Hz,3PH 16 Command Language G Code 17 Operating System Syntec Control System 18 Computer Interface USB 19 Flash Memory 128M(U Disk) 20 Collet ER32 21 X,Y Resolution <0.03mm 22 Software Compatibility Type3/ Artcam software 23 Running Environment Temperature 0 - 45 Centigrade 24 Relative Humidity 30% - 75% 25 Packing Size 5000X2250X1800mm 26 N.W. 2900KG 27 G.W. 3100KG |
Packaging & Delivery
| Packaging: | wooden case |
|---|---|
| Delivery/Lead Time: | 15 working days upon payment receipt |
| Production Capacity: | 100/month |
Product Description
With hard steel structure, the Cnc Wood Cutting Machineis fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor decoration, and Cnc Wood Cutting Machineis qualified for mass- producing of furniture. Cnc Wood Cutting M
|
